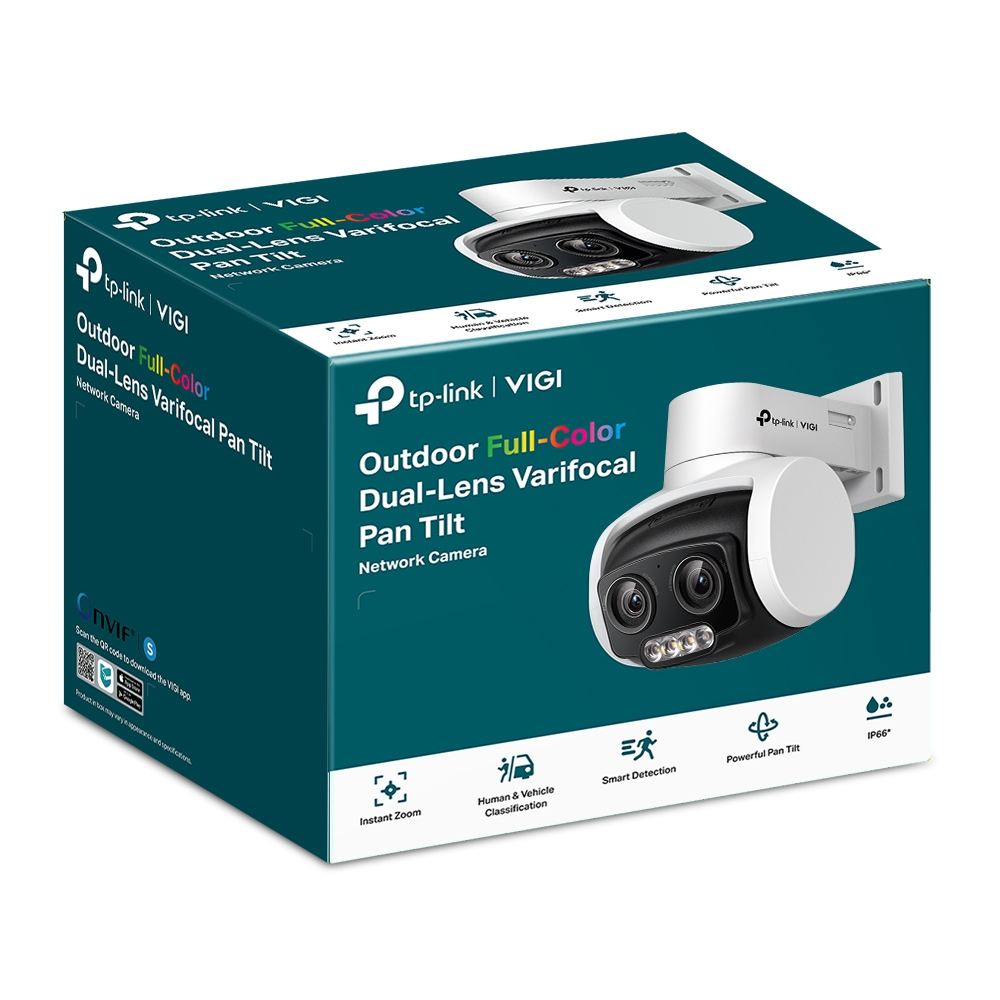

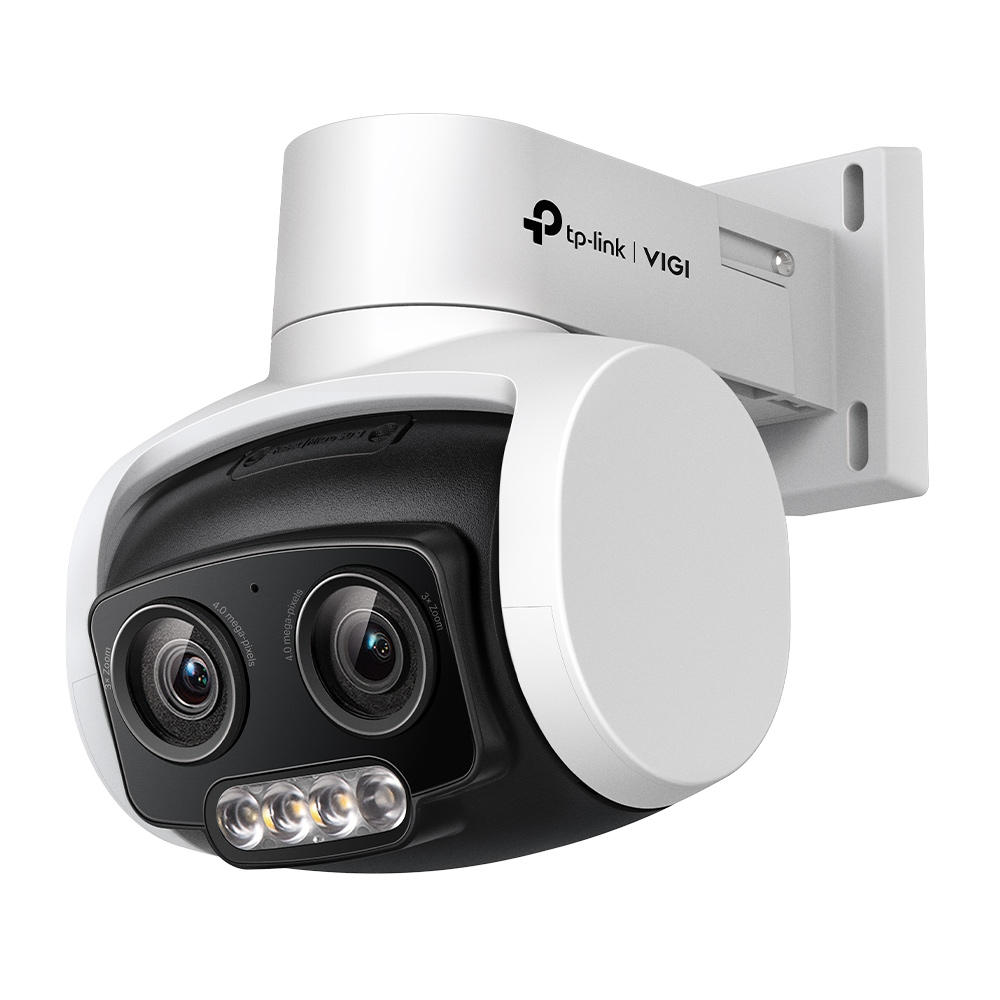

TP-LINK VIGI C540V 4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera
TP-LINK VIGI C540V 4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera - Image 2

TP-LINK VIGI C540V 4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera

  • 4MP Super-High Definition
  • 24h Full-Color
  • 3× Zoom
  • Instant Zoom
  • Human & Vehicle Classification
  • Smart Detection
  • Powerful Pan Tilt
  • Active Defense
  • Two-Way Audio
  • H.265+
  • IP66 Waterproof
  • Flexible Management and Storage

฿2,350.00*ราคายังไม่รวม VAT
฿2,514.50*ราคารวม VAT แล้ว

ขอใบเสนอราคา
CAMERA
Image Sensor1/3” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Minimum Illumination0.005 Lux; 0 Lux with IR/white light
Day/Night MechanismIR Cut Filter
Day/Night SwitchDay/Night/Auto/Schedule-Switch
Zoom3x Mixed Zoom
LENS
Focal Length4-12 mm (Mixed Zoom)
ApertureF1.6
FOVDiagonal FOV: 100°, Horizontal FOV: 84°, Vertical FOV: 46°
Lens MountM12*P 0.5
DORI Distance• 4 mm
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)

• 8 mm
Detect: 150 m (493 ft)
Observe: 63 m (205 ft)
Recognize: 30 m (98 ft)
Identify: 15 m (49 ft)

PTZ
Pan/tilt RangePan: 0° to 332°, Tilt: 0° to 120°
Pan/tilt SpeedPan Speed:
Configurable from 1° to 55°/s; Preset Speed: 55°/s

Tilt Speed:
Configurable from 1° to 40°/s, Preset Speed 40°/s

Manual Control SpeedConfigurable from 8° to 35°/s
Presets300
Patrol Scan8 patrols, up to 8 presets for each patrol
Power-off MemoryYes;
Auto restore to previous PTZ and lens status after power failure
Park ActionYes;
Preset; Patrol Scan
3D PositioningYes
Angle Adjustment (Manual)
RangePan: 0° to 332°, Tilt: 0° to 120°
ILLUMINATOR
IR LEDQuantity: 1
Range: 30m
Wavelength: 850nm
White LEDQuantity: 3
Range: 30m
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
VIDEO
Max. Resolution2560 X 1440
Main StreamFrame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
2560×1440, 2304×1296, 2048×1280, 1920×1080,1280×720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Sub-StreamFrame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
640×480, 352×288, 320×240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 TypeMain Profile/High Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic RangeDWDR
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes
AUDIO
Audio CommunicationTwo-Way Audio
Audio InputYes
Audio OutputYes
Audio CompressionYes
Audio Sampling Rate8KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)
NETWORK
Protocol• TCP/IP
• UDP
• ICMP
• HTTP
• HTTPS
• DHCP
• DNS
• RTSP
• NTP
• UPnP UDP
• SSL/TLS
• FTP/SFTP
• RTP
• IPv4
• IPv6
• ARP
• SNMP
• IEEE 802.1x
ONVIFYes
APIOpen Network Video Interface (Profile S)
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, VIGI Security Manager, VIGI NVR, Web
Web BrowserGoogle Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart EventHuman & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic EventMotion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm LinkageMemory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage MethodN/A
Output NotificationMessage Push
INTERFACES
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
AlarmN/A
Reset ButtonYes
PowerDC Power Port
On-board StorageBuilt-In Memory Card Slot, Support MicroSD Card, up to 512 GB
Built-in MicrophoneYes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in SpeakerYes
AudioN/A
GENERAL
Operating Temperature-30–60 °C
Storage Temperature-40–60 °C
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)
Package ContentVIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
MaterialPlastic
Net Weight0.43 Kg
Gross Weight0.66 Kg
Power Supply12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3at, class 4)
Max. Power ConsumptionMaximum: 14 W
Typical (Day Mode): 2.9 W
Typical (Night Mode with IR LED): 5.7 W
Typical (Night Mode with White LED): 6.1 W
ProtectionIP66
Product Dimensions (L x W x H)139*136*107 mm
CertificationsCE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
รหัสสินค้า: VIGI C540V หมวดหมู่:
