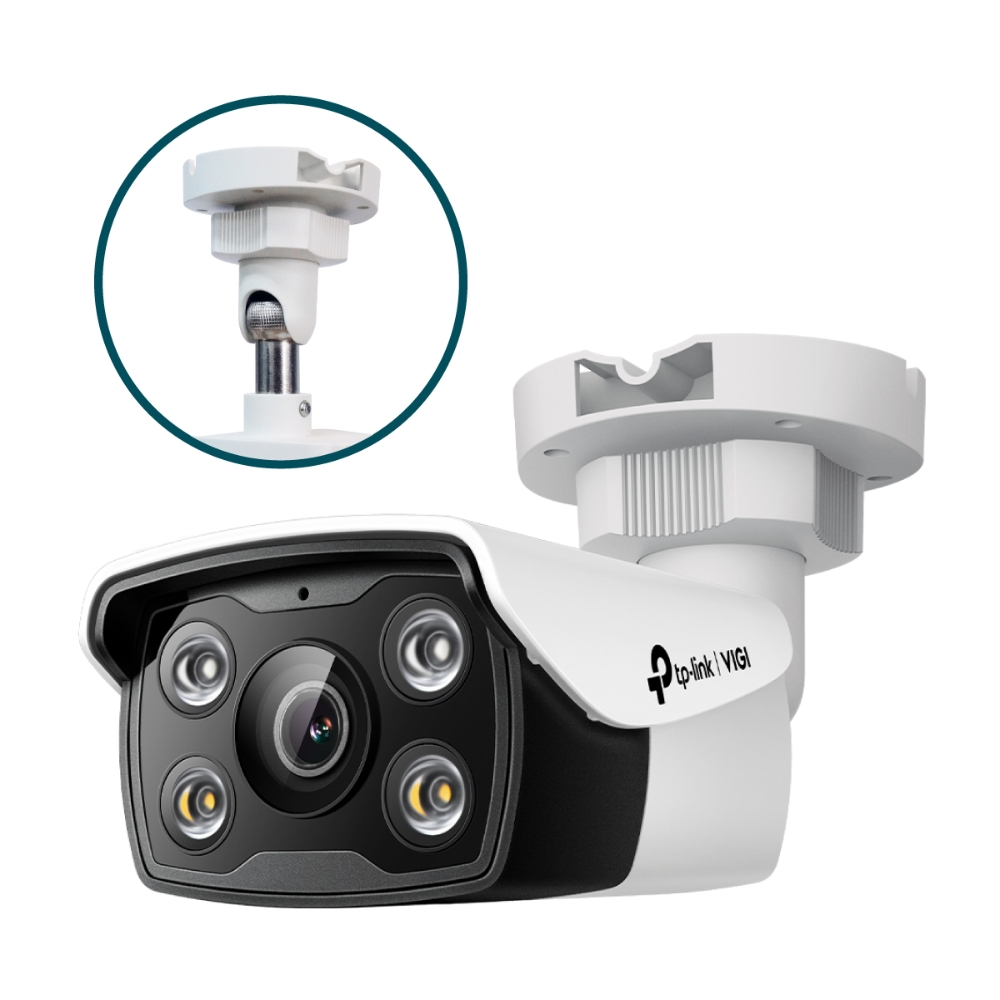

TP-LINK VIGI C350(4mm) 5MP Full-Color Bullet Network Camera
TP-LINK VIGI C350(4mm) 5MP Full-Color Bullet Network Camera - Image 2

TP-LINK VIGI C350(4mm) 5MP Full-Color Bullet Network Camera

  • 5MP Super-High Definition
  • 24h Full-Color
  • Human & Vehicle Classification
  • Smart Detection
  • People & Vehicle Analytics
  • Active Defense
  • Two-Way Audio
  • IP67 Waterproof
  • H.265+△
  • Smart Video Enhancement
  • Flexible Management and Storage

฿1,750.00*ราคายังไม่รวม VAT
฿1,872.50*ราคารวม VAT แล้ว

ขอใบเสนอราคา
CAMERA
Image Sensor1/2.7” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Minimum Illumination0.005 Lux; 0 Lux with IR/white light
Day/Night MechanismIR Cut Filter
Day/Night SwitchUnified/ Scheduled/ Auto
LENS
TypeFixed Focal Lens
Focal Length4 mm
ApertureF1.6
FOV2.8mm:
Horizontal FOV: 109°, Vertical FOV: 57°, Diagonal FOV: 128°

4mm:
Horizontal FOV: 90°, Vertical FOV: 48°, Diagonal FOV: 107°

6mm:
Horizontal FOV: 56°, Vertical FOV: 30.5°, Diagonal FOV: 66°

Lens MountM12*P 0.5
DORI Distance2.8 mm
Detect: 63 m (206 ft)
Observe: 85 m (109 ft)
Recognize: 12 m (39 ft)
Identify: 6 m (19 ft)

4 mm
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)

6 mm
Detect: 120 m (393 ft)
Observe: 50 m (164 ft)
Recognize: 24 m (78 ft)
Identify: 12 m (39 ft)

Angle Adjustment (Manual)
RangePan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
ILLUMINATOR
IR LEDQuantity: 2
Range: 30m
Wavelength: 850nm
White LEDQuantity: 2
Range: 30m
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
VIDEO
Max. Resolution2880 X 1620
Main StreamFrame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
2880×1620,2688×1520, 2304×1296, 2048×1280, 1920×1080,1280×720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Sub-StreamFrame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
704×576,640×480, 352×288, 320×240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 TypeMain Profile/High Profile
H.264+Main Stream Supported
H.265 TypeMain Profile△
H.265+Main Stream Supported△
Video Bit RateMain Stream: 256 Kbps to 6 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic Range120 dB

Note: When People & Vehicle Analytics is enabled, only DWDR is supported.

SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes
AUDIO
Audio CommunicationTwo-Way Audio
Audio InputYes
Audio OutputYes
Audio CompressionYes
Audio Sampling Rate8KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)
NETWORK
Protocol• TCP/IP
• UDP
• ICMP
• HTTP
• HTTPS
• DHCP, DNS, RTSP
• NTP
• UPnP UDP
• SSL/TLS
• FTP/SFTP
• RTP
• IPv4
• IPv6
• ARP
• SNMP
• IEEE 802.1x
ONVIFYes
APIOpen Network Video Interface (Profile S)
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, VIGI Security Manager
Web BrowserGoogle Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart EventHuman & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection, Scene Change Detection
Basic EventMotion Detection, Video Tampering Detection, Exception ( Illegal Login), Scene Change Detection
Alarm LinkageMemory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage MethodN/A
Output NotificationMessage Push
Deep Learning Function
People & Vehicle AnalyticsSearch and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Multi-Target-Type DetectionSupports Simultaneous Detection and Capture of Human Body and Vehicle
Face CaptureN/A
Face ComparisonN/A
INTERFACES
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
AlarmN/A
Reset ButtonYes
PowerDC Power Port
On-board StorageBuilt-In Memory Card Slot, Support MicroSD Card, up to 512 GB
Built-in MicrophoneYes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in SpeakerYes
AudioN/A
GENERAL
Operating Temperature-30–60 °C
Storage Temperature-40–60 °C
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)
Package ContentVIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
MaterialPlastic
Power Supply12V DC ± 5%, Max. 9 W, 5.5 mm Coaxial Power Plug
PoE: 802.3af/at, class 0, Max. 10.5 W
ProtectionIP67
Product Dimensions (L x W x H)78.42× 186.88× 71.55 mm
CertificationsCE, NTRA, VCCI, KC, BSMI, FCC, IC
รหัสสินค้า: VIGI C350(4mm) หมวดหมู่:
