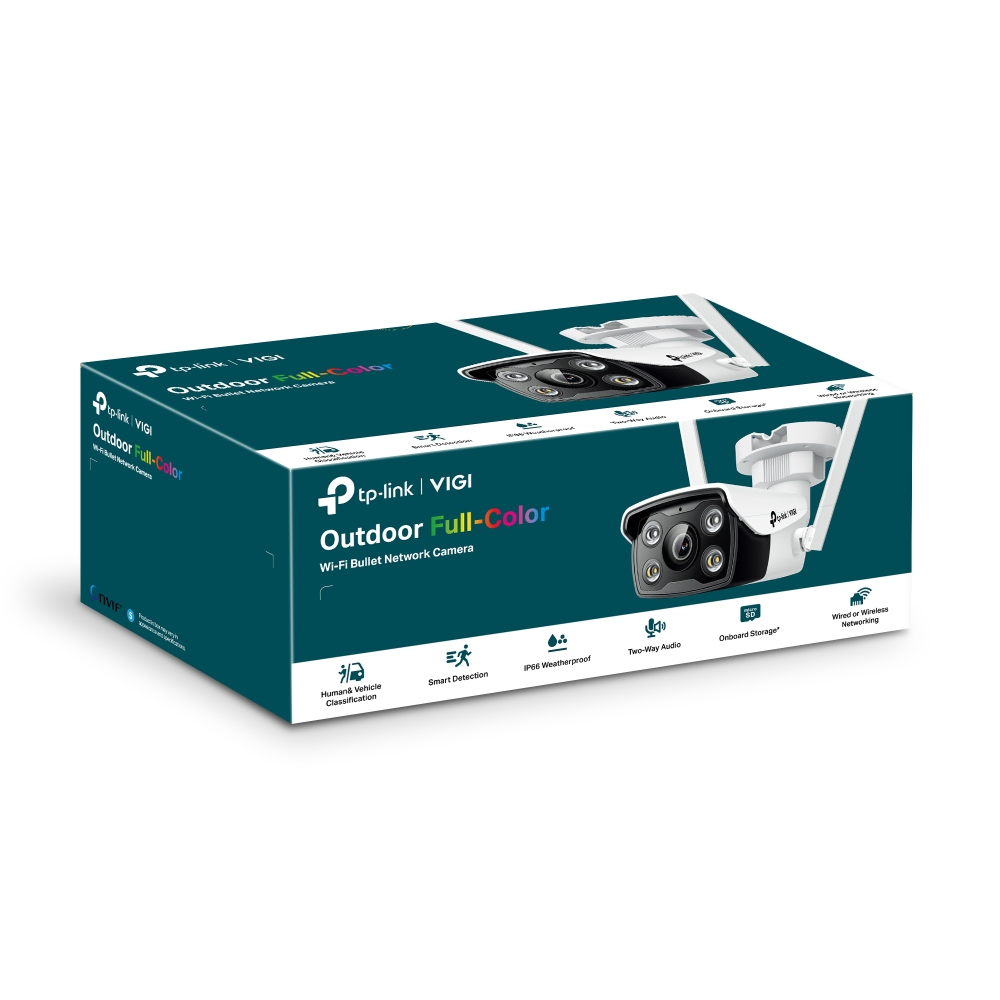

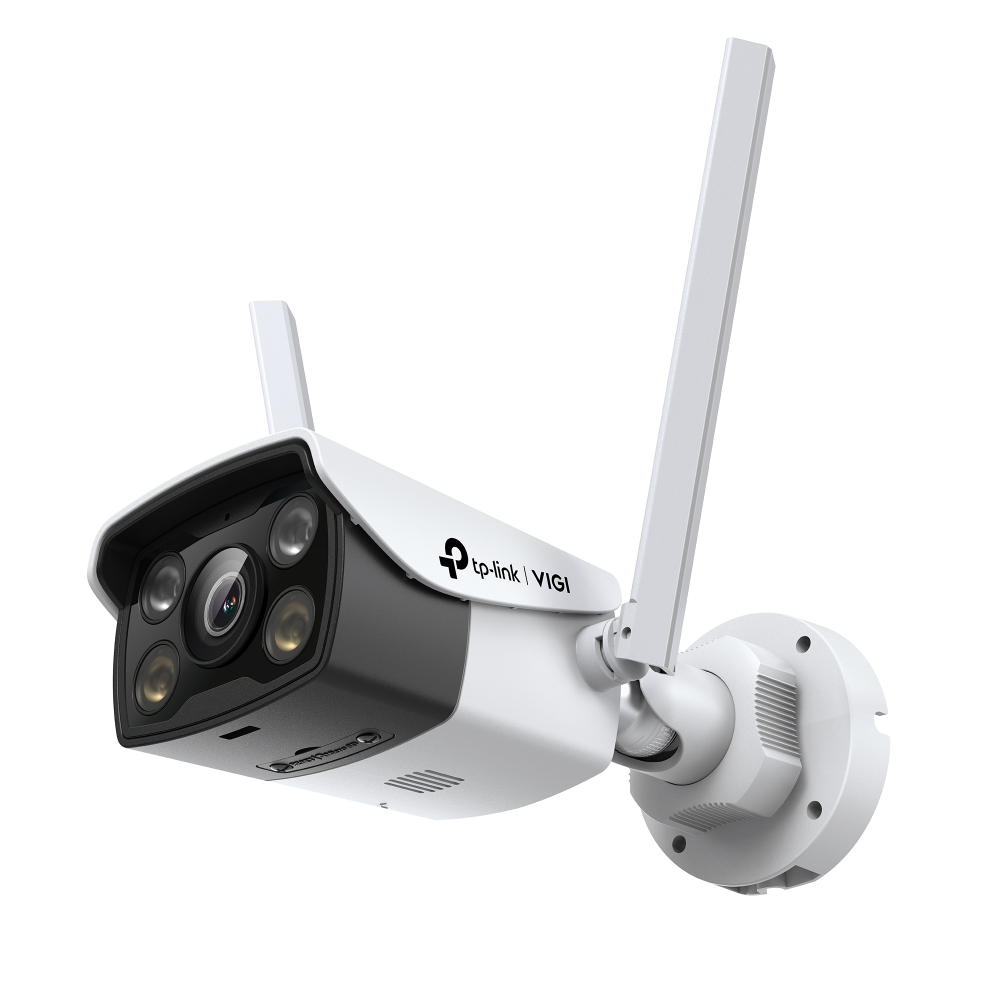

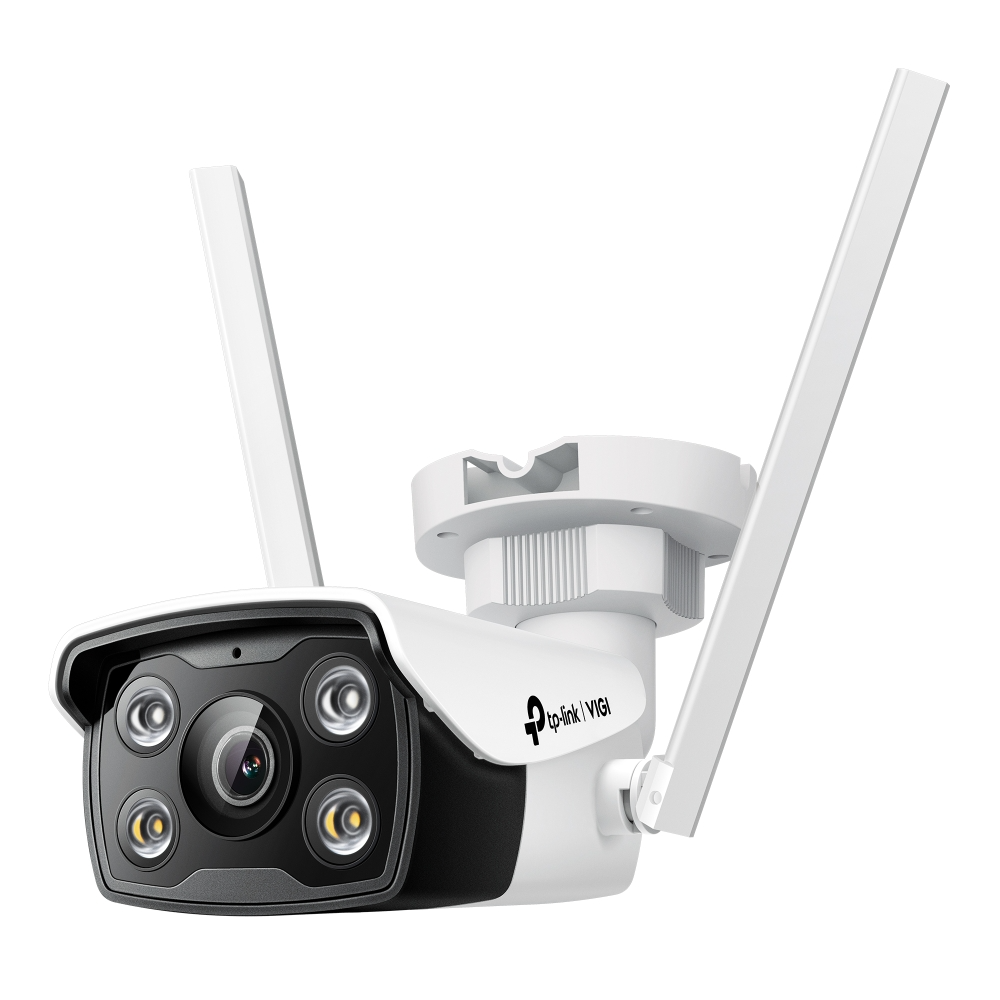

TP-LINK VIGI C340-W(4mm) 4MP Full-Color Wi-Fi Bullet Network Camera
TP-LINK VIGI C340-W(4mm) 4MP Full-Color Wi-Fi Bullet Network Camera - Image 2
TP-LINK VIGI C340-W(4mm) 4MP Full-Color Wi-Fi Bullet Network Camera - Image 3

TP-LINK VIGI C340-W(4mm) 4MP Full-Color Wi-Fi Bullet Network Camera

  • 4MP Super-High Definition and 24h Full-Color
  • Wireless Outdoor Connection
  • Human & Vehicle Classification
  • Smart Detection
  • Smart Video Enhancement Technology
  • Active Defense and Two-Way Audio
  • IP66 Waterproof
  • H.265+ Compression Technology

฿1,690.00*ราคายังไม่รวม VAT
฿1,808.30*ราคารวม VAT แล้ว

ขอใบเสนอราคา
CAMERA
Image Sensor1/3” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Minimum Illumination0.005 Lux; 0 Lux with IR/white light
Day/Night MechanismIR Cut Filter
Day/Night SwitchUnified/ Scheduled/ Auto
LENS
TypeFixed Focal Lens
Focal Length4 mm
ApertureF1.6
FOVHorizontal FOV: 76.3°, Vertical FOV: 40.6°, Diagonal FOV: 90.2°
Lens MountM12
DORI Distance• Detect: 80 m (262 ft)
• Observe: 33 m (109 ft)
• Recognize: 16 m (52 ft)
• Identify: 8 m (26 ft)
Angle Adjustment (Manual)
Range• Pan: 0° to 360°
• Tilt: 0° to 90°
• Rotation: 0° to 360°
ILLUMINATOR
IR LED• Quantity: 2
• Range: 30m
• Wavelength: 850nm
White LED• Quantity: 2
• Range: 30m
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
VIDEO
Max. Resolution2560 X 1440
Main Stream• Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Sub-Stream• Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
704×576, 640×480, 352×288, 320×240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Bit Rate ControlCBR, VBR
Video Compression• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
H.264 TypeHigh Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit Rate• Main Stream: 256 Kbps to 3 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps
Image Settings• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness, Exposure, WDR,
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software
• Rotation (90°/270°)
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic RangeDWDR
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes
AUDIO
Audio CommunicationTwo-Way Audio
Audio InputYes
Audio OutputYes
Audio CompressionYes
Audio Sampling Rate8KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)
NETWORK
Protocol• TCP/IP
• UDP
• ICMP
• HTTP
• HTTPS
• DHCP, DNS, RTSP
• NTP
• UPnP
• SSL/TLS
• FTP/SFTP
• RTP
• IPv4
• IPv6
• ARP
ONVIFYes
APIOpen Network Video Interface (Profile S)
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, VIGI Security Manager, Web UI
Web Browser• Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
WIRELESS
Standards and ProtocolsIEEE 802.11b/g/n
WiFi Channels• UN: 1-13
• US: 1-11
Frequency2.4 GHz
Wireless Transmit PowerHigh
Auto Wireless ChannelN/A
Wireless StatisticsN/A
Throughput MonitoringN/A
Radio Bandwidth• Auto: N/A
• 20M: Yes
• 40M: Yes
Wireless Rate• 11Mbps(802.11b)
• 54Mbps(802.11g)
• 150/300Mbps(802.11n)
Wireless SecurityWPA-PSK/WPA2-PSK
Wireless ModeAP, AP Client
ALARM AND EVENT MANAGEMENT
Smart Event• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned/Removal Detection
• Scene Change Detection
• Abnormal Sound Detection
• People Detection
• Vehicle Detection
• Loitering Detection
Basic Event• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
• Video Tampering Detection
• Exception ( Illegal Login)
Alarm Linkage• Memory Card Video Recording
• Message Push
• Audible Warning
• White Light Flashing
• Upload Capture to FTP
INTERFACES
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port
AlarmN/A
Reset ButtonYes
PowerDC Power Port
On-board StorageBuilt-In Memory Card Slot, Support MicroSD Card, Up to 512 GB
Built-in MicrophoneYes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in SpeakerYes
AudioN/A
GENERAL
Operating Temperature-30–60 °C
Storage Temperature-40–60 °C
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)
Package Content• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Power Adapter
• Mounting Accessories
MaterialPlastic
Net Weight0.38 Kg
Gross Weight0.66 Kg
Power Supply9-12V DC/0.85-1.0A, 5.5mm Coaxial Power Plug
Antenna• Quantity: 2
• Type: 2.4GHz Welded Dipole Omni-Directional Antenna
• Gain: 2.0dBi
ProtectionIP66 Waterproof
Product Dimensions (L x W x H)78.5 × 188.0 × 161.89 mm (3.09 × 7.40 × 3.67 in)
CertificationsCE NTRA JRF VCCI BSMI NCC
รหัสสินค้า: VIGI C340-W(4mm) หมวดหมู่:
