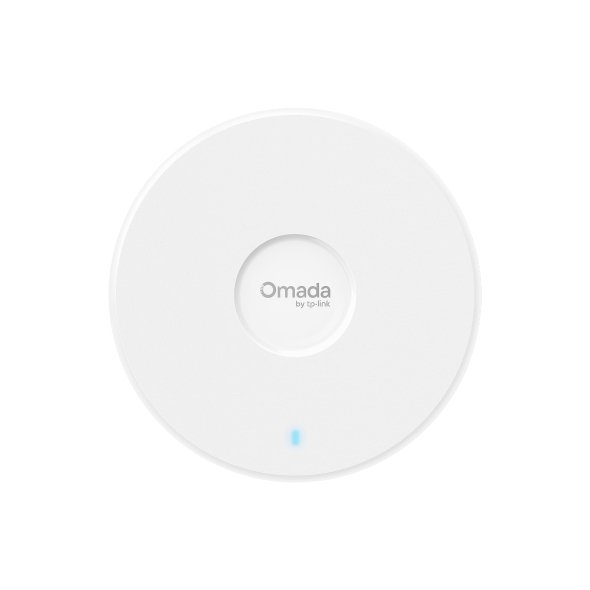

TP-LINK EAP720 Omada BE5000 Ceiling Mount Dual-Band Wi-Fi 7 Access Point
- Dual-Band 4-Stream Wi-Fi 7: Up to 5.0 Gbps (4324 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).†
- 1× 2.5G Port: Ensures fast connectivity throughout the network.
- Low Latency and Interference: Multi-Link Operation, Multi-Rus, and 4K -QAM ensure high performance of your network.‡
- Flexible Deployment and Easy Setup: Supports both 802.3at PoE and DC Power supply for flexible installation (power adapter included). Omada SDN for one-click setup.
- Advanced Features: Supports centralized management, Mesh, and Seamless Roaming.△
- More Connections and Wider Coverage: Supports 250+ concurrent clients* and covers up to 1500 ft² (140 ㎡) **for reliable and extensive wireless connectivity.
฿3,551.40 ฿4,390.00*ราคายังไม่รวม VAT ฿3,800.00*ราคารวม VAT แล้ว
| HARDWARE FEATURES | |
|---|---|
| Interface | 1× 2.5G Ethernet Port |
| Button | Reset |
| Power Supply | 802.3at PoE or 12V/1.5A DC (Power Adapter Included) |
| Max. Power Consumption | • 17.83 W (For PoE); • 13.99 W (For DC) |
| Dimensions ( W x D x H ) | 6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm) |
| Antenna | • 2.4 GHz: 2× 4.0 dBi • 5 GHz: 2× 5.0 dBi |

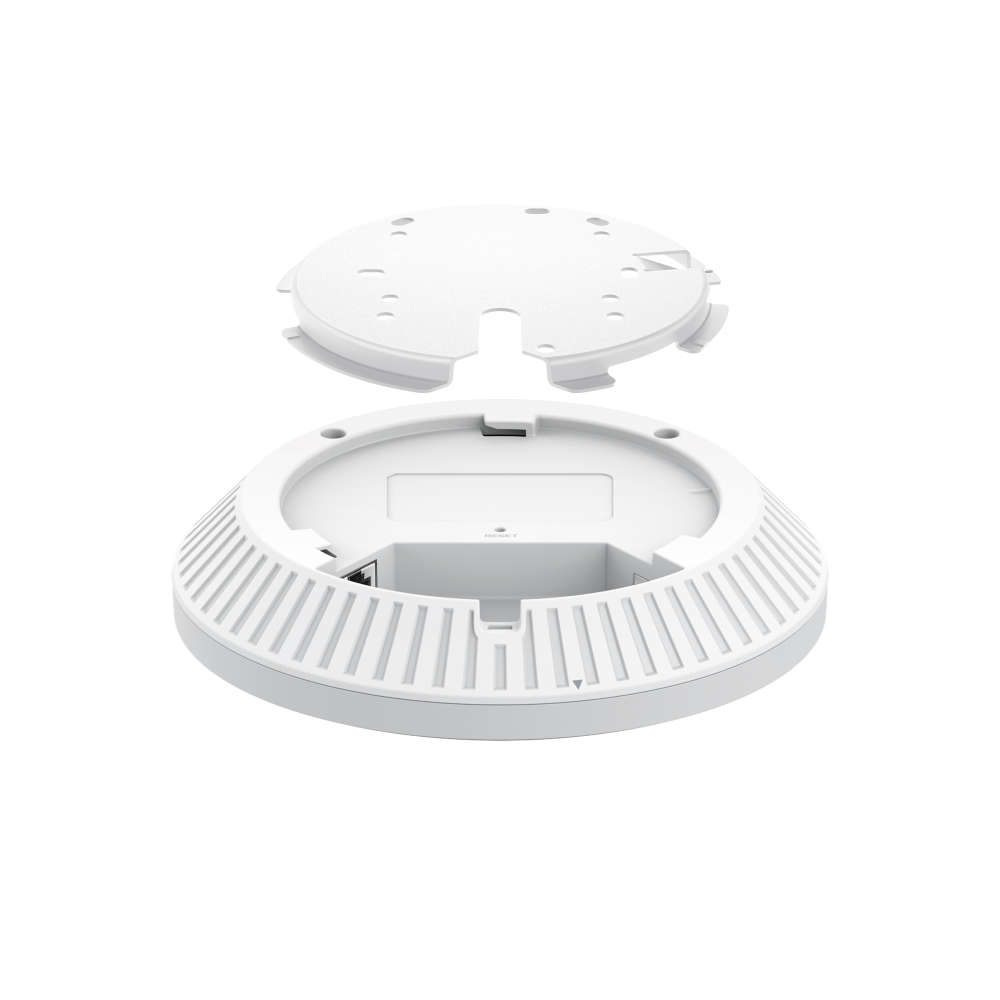

| Mounting | Ceiling / Wall / Junction Box Mounting (Kits Included) |
| WIRELESS FEATURES | |
| Coverage | 1500 ft² (140㎡)* |
| Concurrent Clients | 250+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) |
| Wireless Functions | • MLO‡ • 4K-QAM‡ • Seamless Roaming • 240 MHz Bandwidth‡ • Mesh△ • OFDMA‡ • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS:16(8 on each band) • Wireless Schedule • Reboot Schedule • QoS(WMM) • Rate Limit • Static IP/Dynamic IP • RADIUS Accounting • MAC Authentication |
| Wireless Security | • Captive Portal Authentication△ • Access Control • Maximum number of MAC Filter: 4,000 • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | < 25 dBm (2.4 GHz) < 25 dBm (5 GHz, UNII-1&UNII-4) < 24 dBm (5 GHz, UNII-2&UNII-3) |
| MANAGEMENT FEATURES | |
| Omada App | Yes |
| Centralized Management | • Omada Central (Cloud-Based) • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Require the use of Omada Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| Web-based Management | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS, IC |
| Package Content | • Omada Wi-Fi 7 Ceiling Mount Access Point EAP720 • Installation Guide • Ceiling/Wall/Juntion Box Mounting Kit • Power Adapter |
| Environment | • Operating Temperature: 0 °C–40 °C (32 °F–104 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing; |
