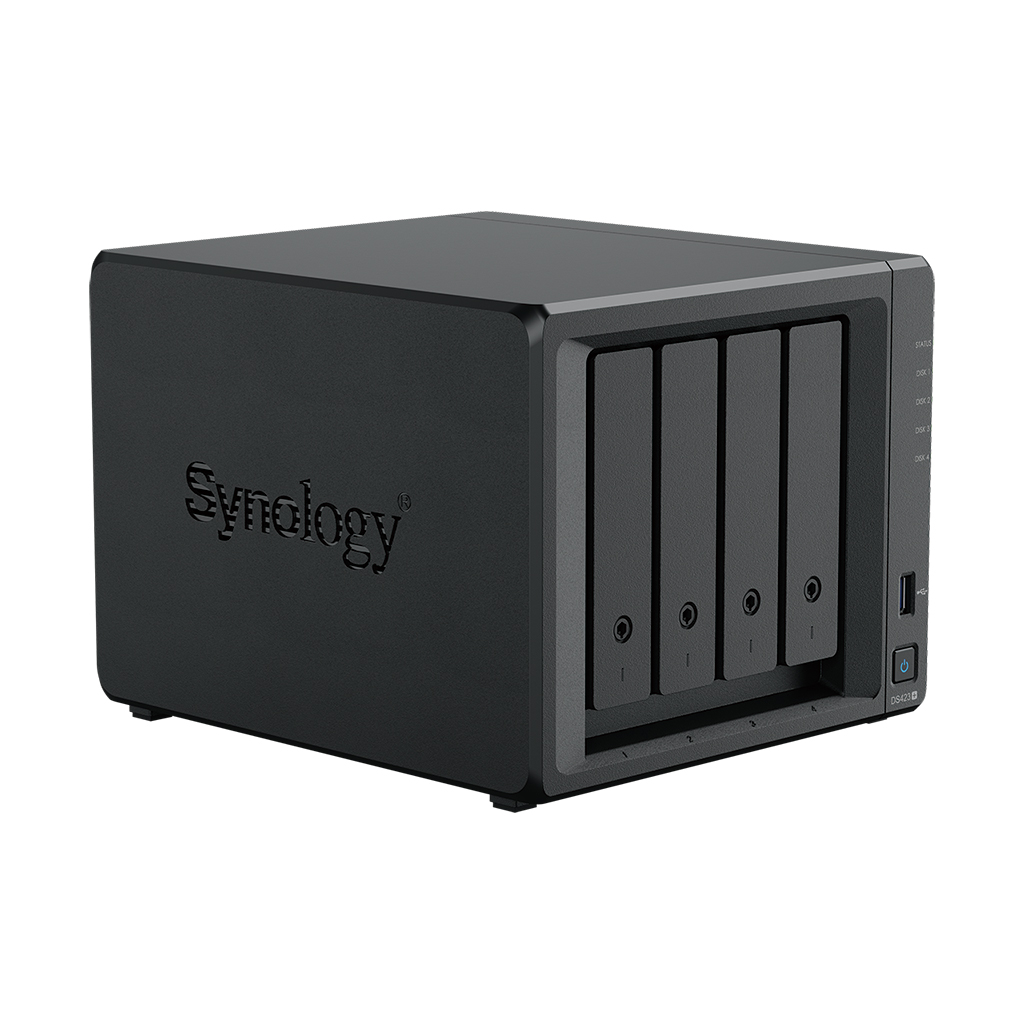

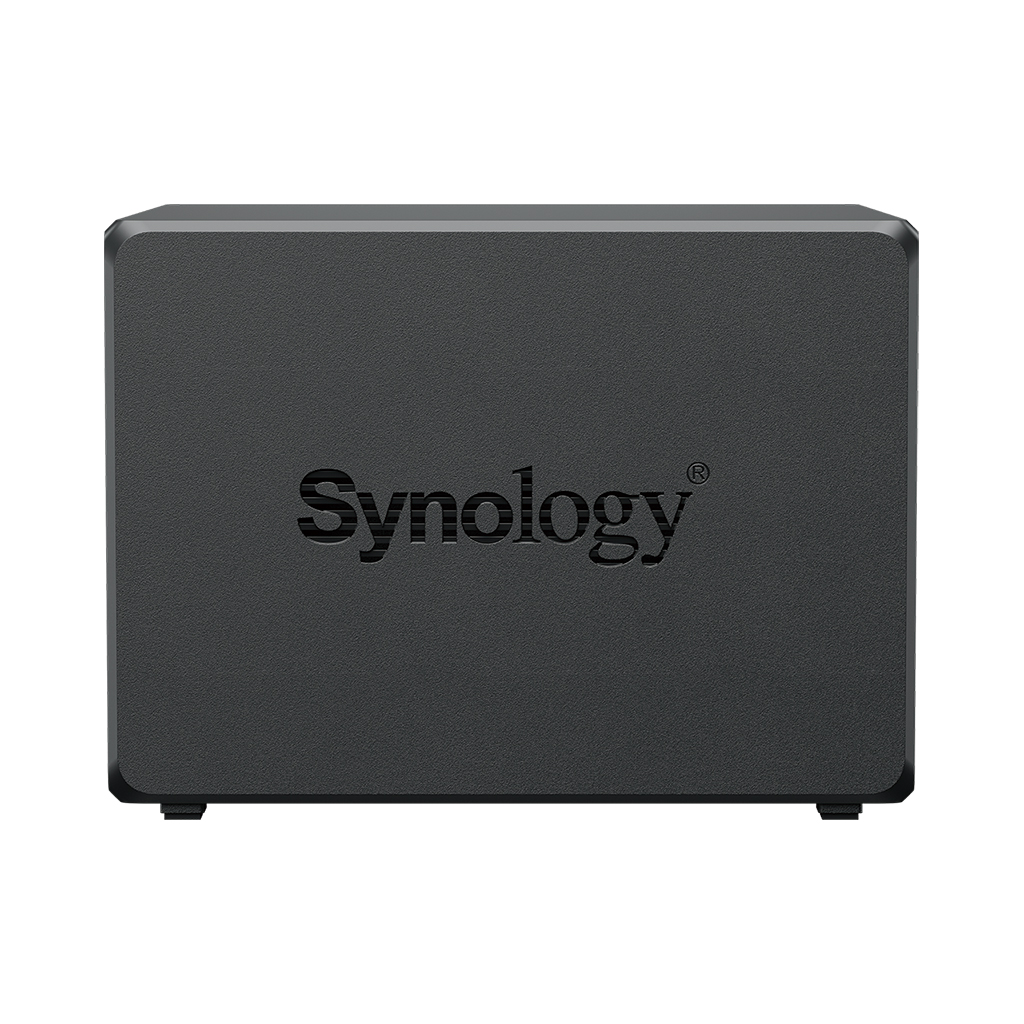

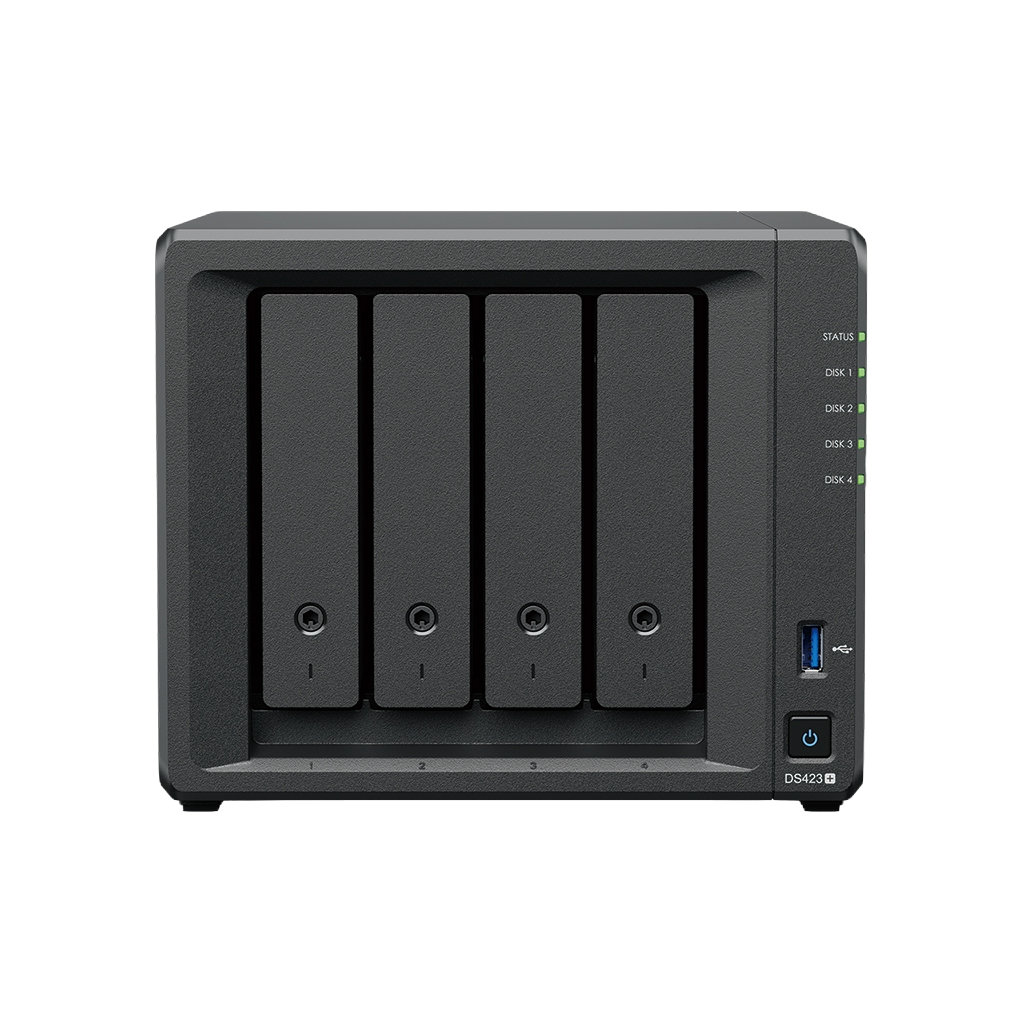

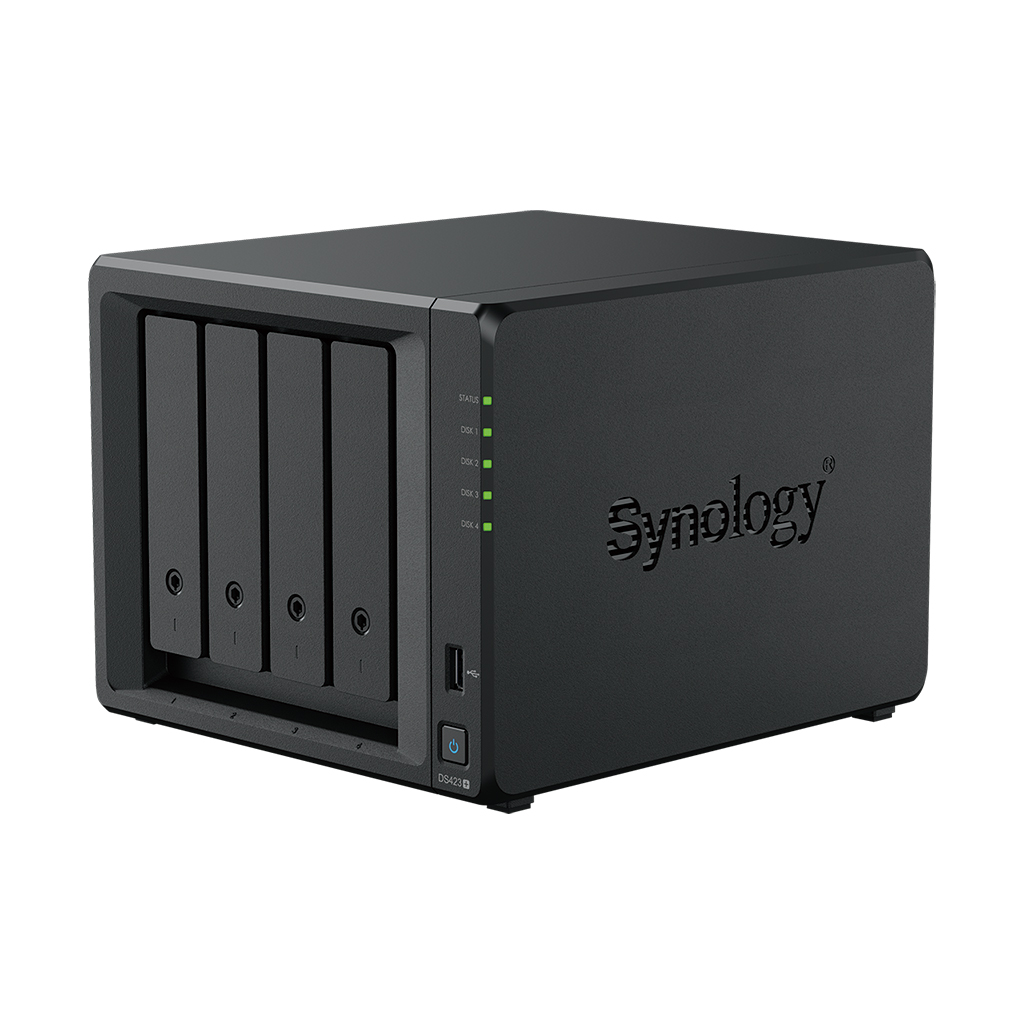

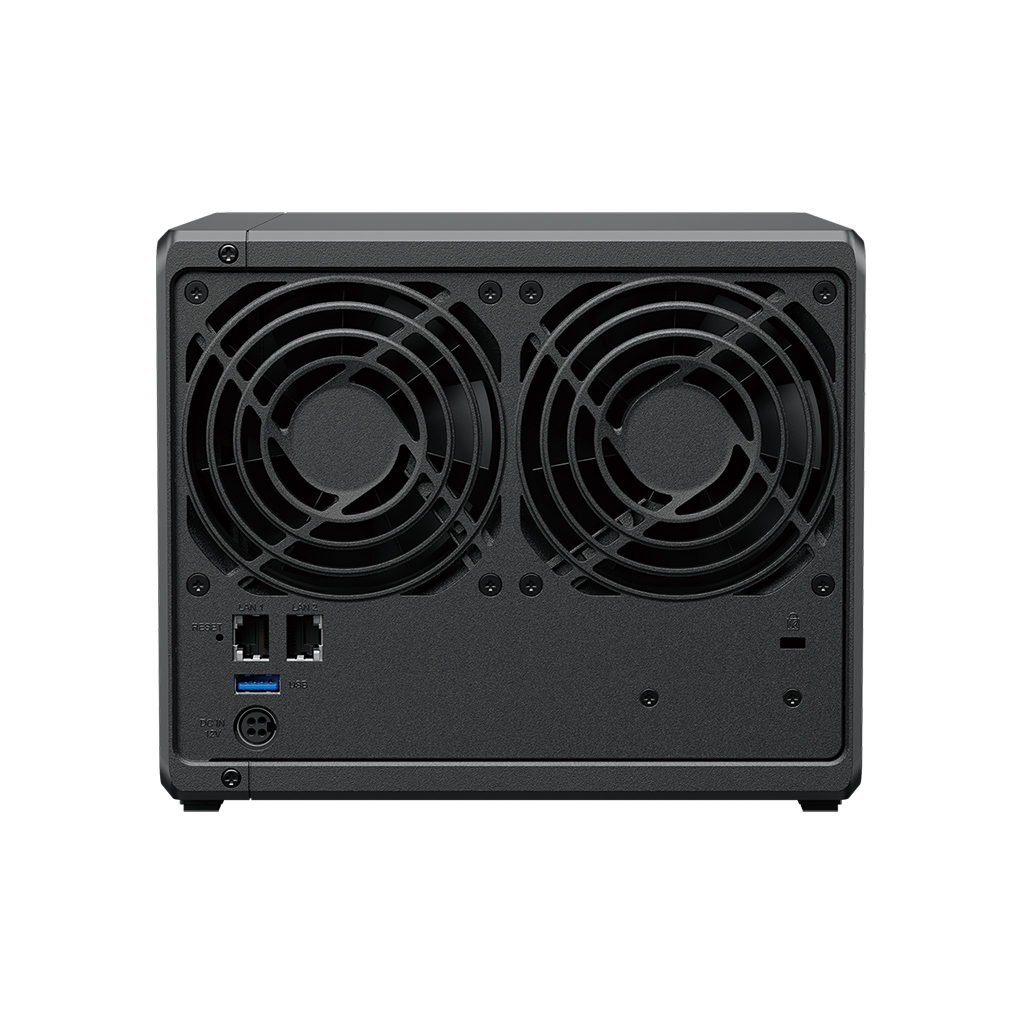

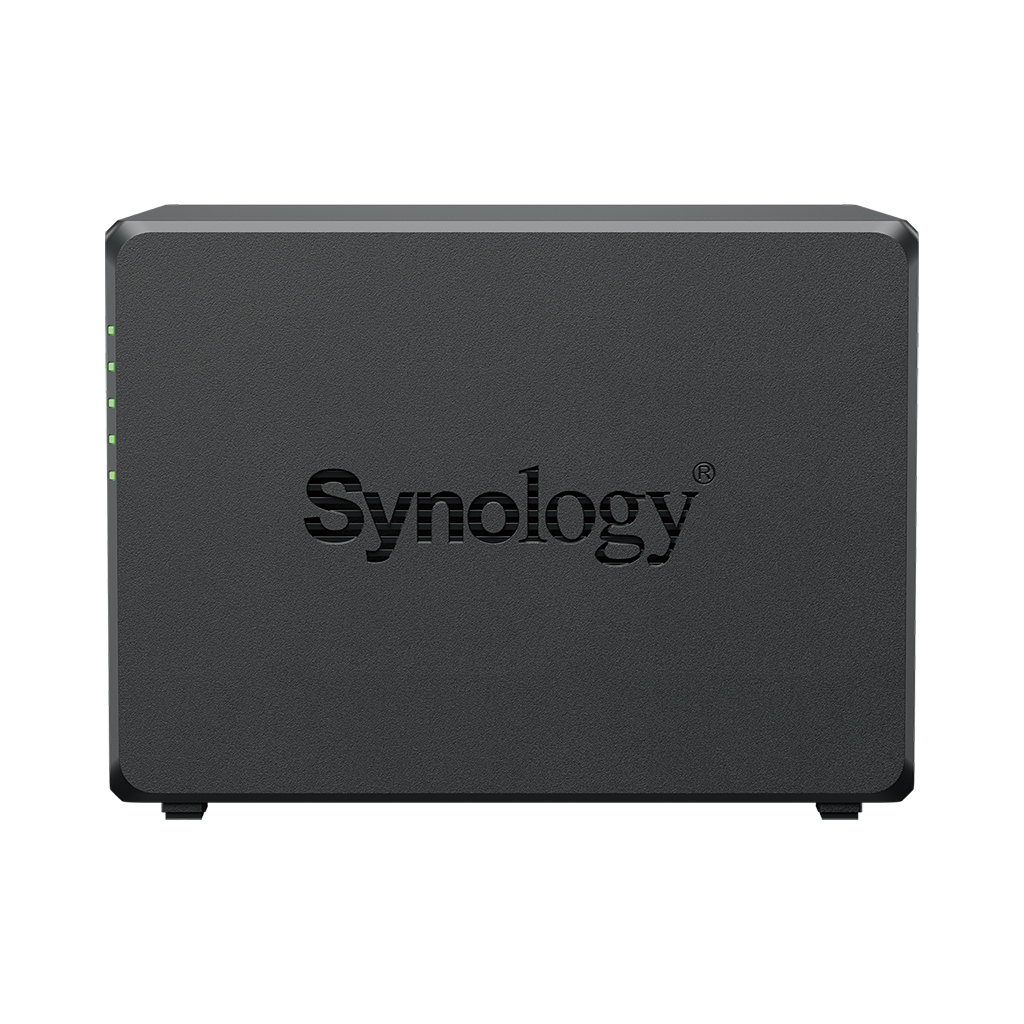

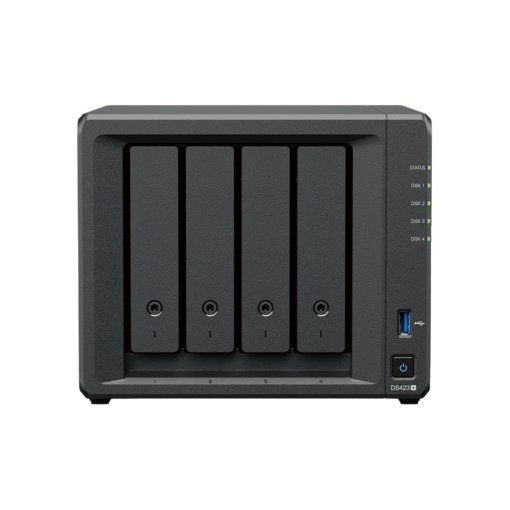

Synology DiskStation DS423 Plus
Synology DiskStation DS423 Plus - Image 2

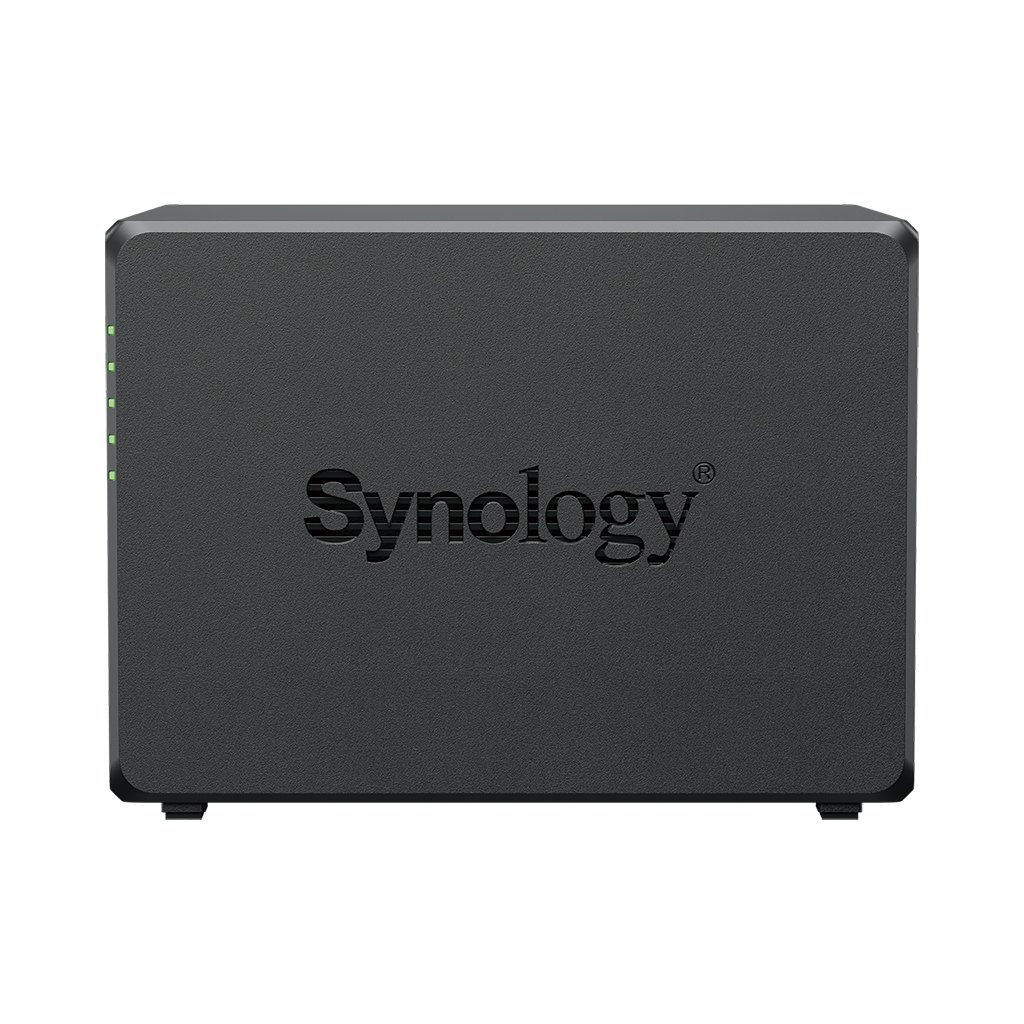

Synology DiskStation DS423 Plus - Image 3

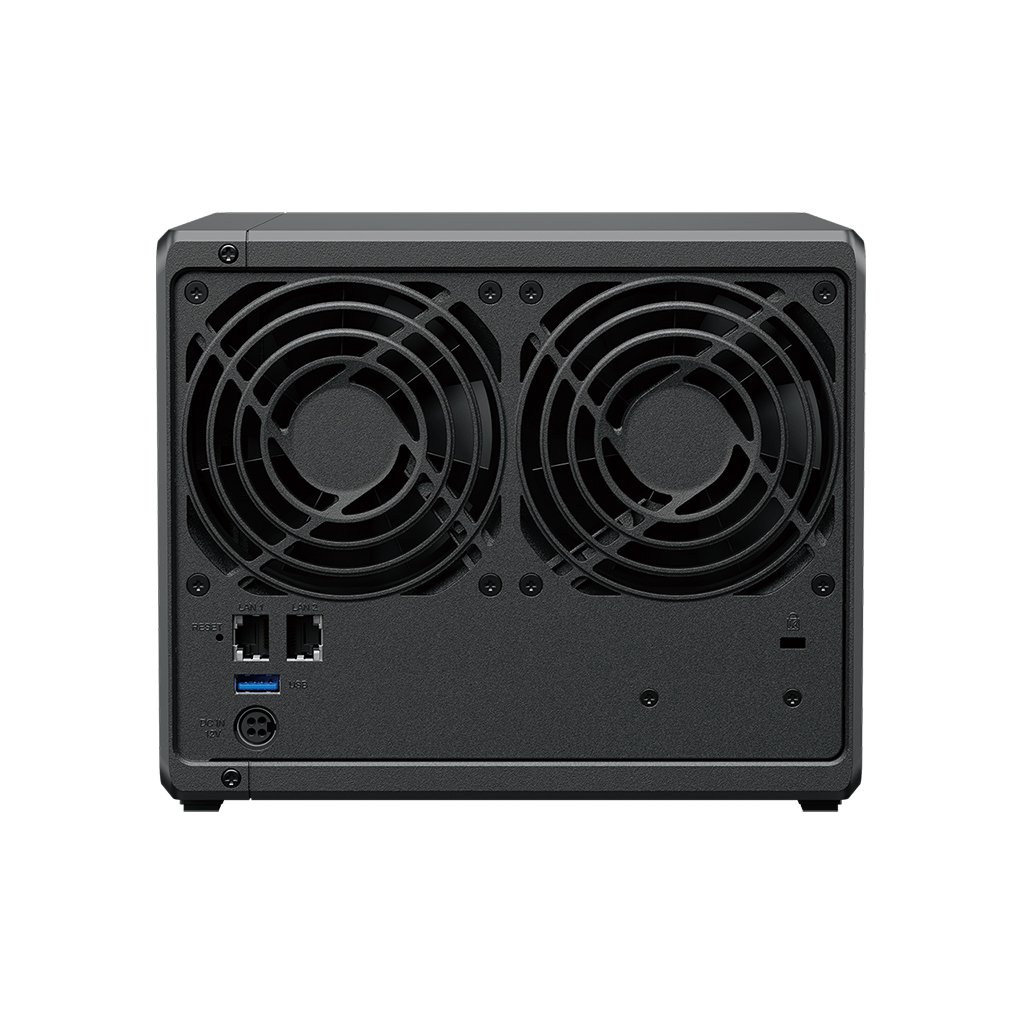

Synology DiskStation DS423 Plus - Image 4

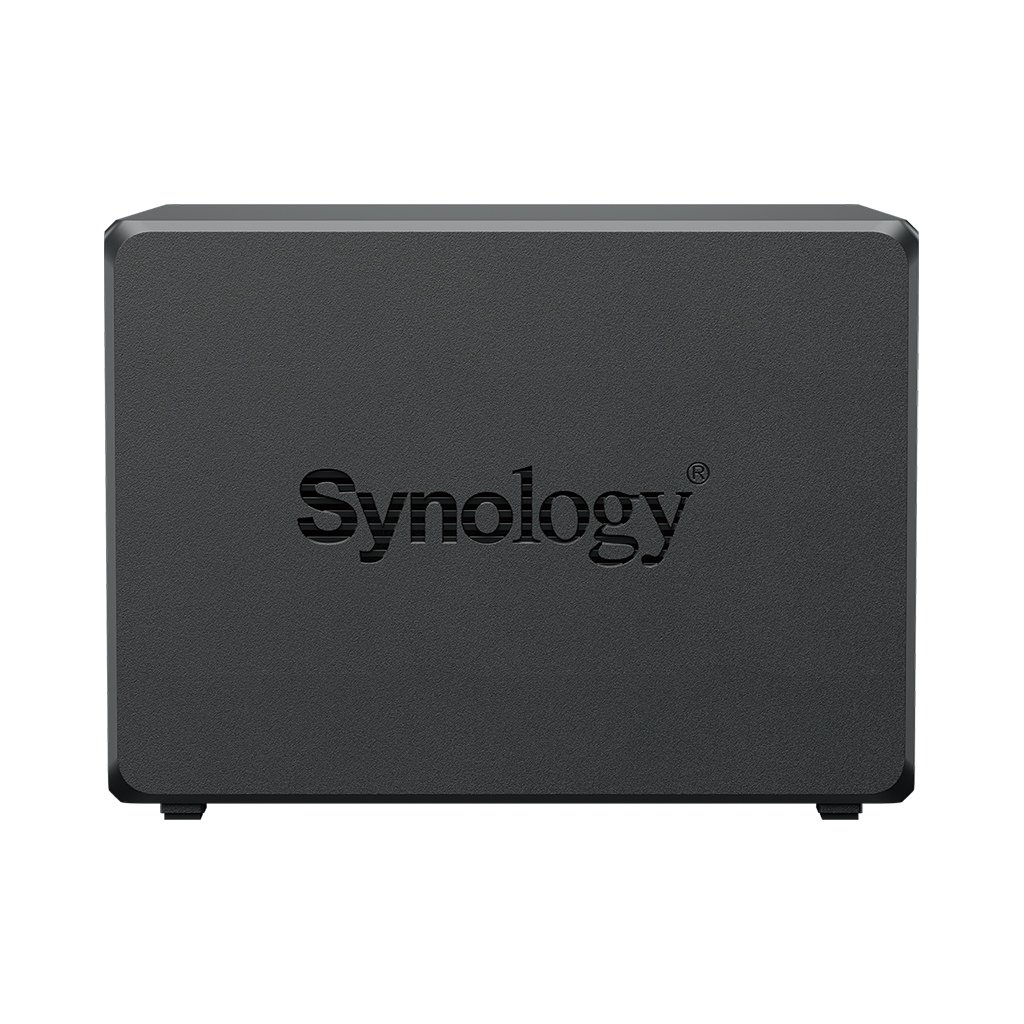

Synology DiskStation DS423 Plus - Image 5
Synology DiskStation DS423 Plus - Image 6

Synology DiskStation DS423 Plus

  • 4-bay DiskStation,
  • Intel Celeron J4125 (4 Core/ 2.0 GHz (turbo to 2.7 GHz)),
  • 2GB non-ECC DDR4 (Max. 6GB),
  • 2 x M.2 NVMe SSD,
  • 2x1GbE Base T,
  • ประกันสินค้า 3 ปี RMA (ต่อประกันเพิ่มได้เป็น 5 ปี(SNG-EW201))

฿18,900.00*ราคายังไม่รวม VAT
฿20,223.00*ราคารวม VAT แล้ว

ขอใบเสนอราคา

คุณสมบัติ

Hardware
CPU Realtek RTD1619B
Memory 2 GB DDR4
Compatible drive types 4 x 3.5″ or 2.5″ SATA HDD/SSD (drives not included)
Synology guarantee Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.
Hot swappable drives Yes
External ports 2 x USB 3.2 Gen 1 ports
Form factor Desktop
Size (HxWxD) 184 x 168 x 230 mm
Weight 2.21 kg
LAN ports 2 x 1GbE RJ-45
Wake on LAN/WAN Yes
Scheduled power on/off Yes
System fans 1 x (80 x 80 mm)
AC input power voltage 100 V to 240 V AC
Power frequency 50/60 Hz, single phase
Operating environment • Temperature: 0°C to 40°C (32°F to 104°F)
• Relative humidity: 8% to 80% RH
Storage environment • Temperature: -20°C to 60°C (-5°F to 140°F)
• Relative humidity: 5% to 95% RH
Maximum operating altitude 5,000 m (16,400 ft)
General DSM Specifications
Networking protocols SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, and VPN (PPTP, OpenVPN™, L2TP)
File systems •  Internal: Btrfs, ext4
•  External: Btrfs, ext4, ext3, FAT32, NTFS, HFS+, exFAT
Supported RAID types Synology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Storage management •  Max. single volume size: 108 TB
•  Max. number of system snapshots: 4,0965
•  Max. number of internal volumes: 64
SSD cache •  Read/write cache support
•  M.2 NVMe and 2.5″ SATA SSD support
File sharing capabilities •  Max. number of local user accounts: 1,024
•  Max. number of local groups: 256
•  Max. number of shared folders: 256
•  Max. number of concurrent SMB/NFS/AFP/FTP connections: 200
Privileges Windows® Access Control List (ACL) and application privileges
Directory services Connects with Windows® AD/LDAP servers enabling domain users to login via SMB/NFS/AFP/FTP/File Station using their existing credentials
Security Firewall, shared folder encryption, SMB encryption, FTP over SSL/TLS, SFTP, rsync over SSH, login auto block, Let’s Encrypt support, and HTTPS (customizable cipher suite)
Supported browsers Google Chrome®, Firefox®, Microsoft Edge®, Safari® 14 and later, and Safari (iOS 14.0 and later) on iPad, Chrome (Android™ 11.0 and later) on tablets
Environment and Packaging
Environmental safety RoHS compliant
Package contents •  1 x DS423+ main unit
•  1 x Quick Installation Guide
•  1 x Accessory pack
•  1 x AC power cord
•  1 x AC power adapter
•  2 x RJ-45 LAN cables
Optional accessories •  DDR4 non-ECC SODIMM: D4NESO-2666-4G
•  M.2 2280 NVMe SSD: SNV3400 series
•  2.5″ SATA SSD: SAT5200 series
•  3.5″ SATA HDD: HAT5300 series
•  MailPlus License Pack10
•  Surveillance Device License Pack11
•  Extended Warranty: EW201, Extended Warranty Plus14
รหัสสินค้า: SNG-DS423PLUS หมวดหมู่:
