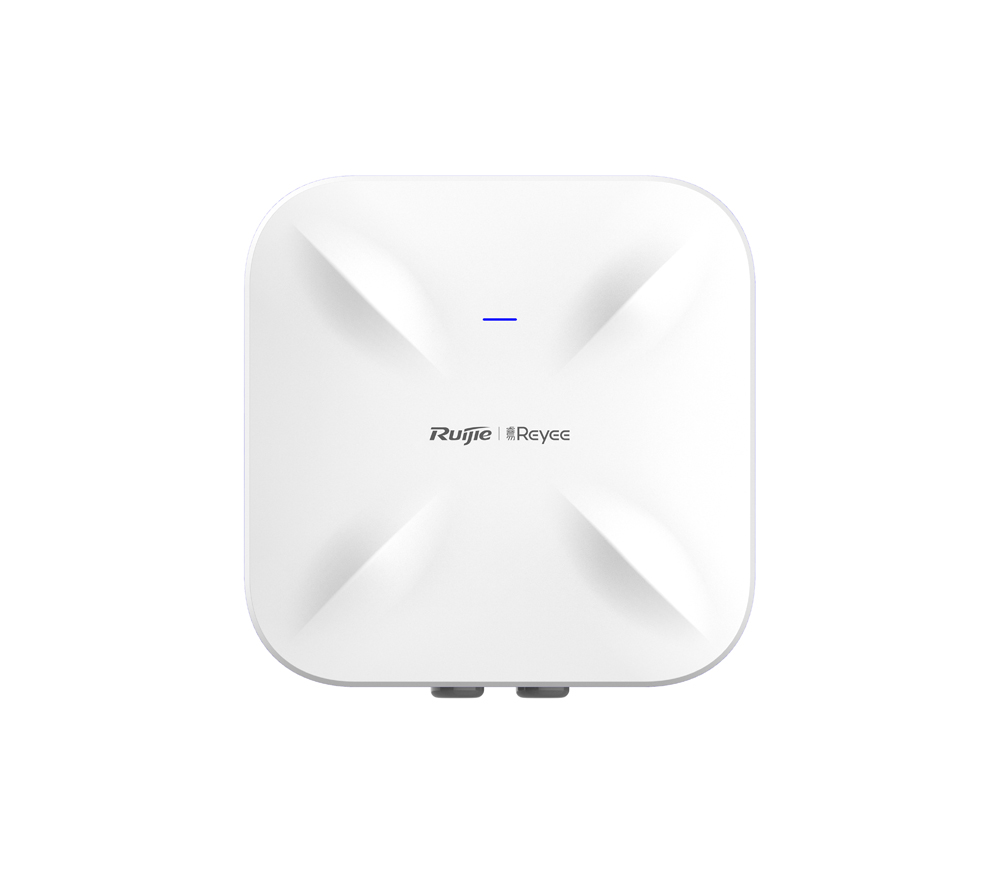

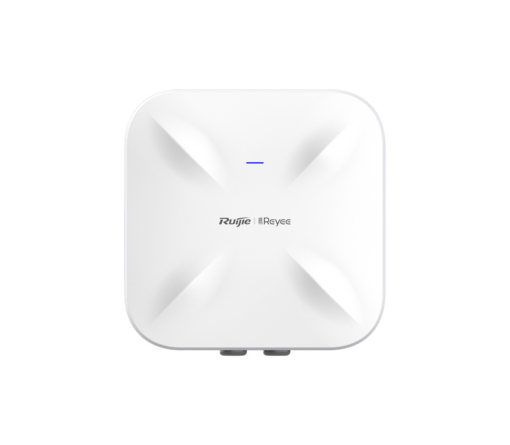

Reyee RG-RAP6260(G) AX1800 Wi-Fi 6 Outdoor Access Point

Reyee RG-RAP6260(G) AX1800 Wi-Fi 6 Outdoor Access Point

฿8,900.00*ราคายังไม่รวม VAT
฿9,523.00*ราคารวม VAT แล้ว

ขอใบเสนอราคา

คุณสมบัติ

RadioDual-stream dual-band
ProtocolConcurrent 802.11a/b/g/n/ac/ax
Operating Bands802.11b/g/n/ac/ax ：2.4G ~ 2.4835GHz

802.11a/n/ac/ax： 5G：5.150～5.350GHz，5.725～5. (country specific)

AntennaInternal antennas (2.4GHz: 4dBi，5GHz: 6dBi)
Spatial Streams2.4 GHz 2×2 MU-MIMO

5 GHz 2×2 MU-MIMO

Max Throughput

Up to 574Mbps at 2.4GHz

Up to 1201Mbps at 5GHz

Totally 1775Mbps per AP

Modulation

DBPSK/DQPSK/CCK(DSSS)/BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM

Receive Sensitivity11b：-91dBm(1Mbps)，-88dBm(5Mbps)，-85dBm(11Mbps)

11a/g：-89dBm（6Mbps），-80dBm（24Mbps），-76dBm（36Mbps），-71dBm（54Mbps）

11n：-83dBm@MCS0，-65dBm@MCS7，-83dBm@MCS8，-65dBm@MCS15

11ac HT20：-83dBm（MCS0）, -57dBm（MCS9）

11ac HT40：-79dBm（MCS0）, -57dBm（MCS9）

11ac HT80：-76dBm（MCS0）, -51dBm（MCS9）

11ax：HE80：-82dBm（MCS0）, -57dBm（MCS9）,-52dBm（MCS11）

Maximum Output Power of the Transmitter

(Single Stream)

2.4GHz(2.4~2.4835GHz)：26dBm

5GHz(5.150~5.250GHz,5.725~5.850GHz)：25dBm

（country-specific，comply with local laws）

Adjustable Power1dBm
Dimensions298mm×298mm×65mm (excluding mounting kits)
Weight≤1.35kg (excluding mounting kits)
Service Ports1 10/100/1000 Base-T Ethernet port supports PoE IN；

1 100/1000 Base-X SFP Port

Management PortN/A
LED IndicatorSingle indicator (Blue light)
Power Supply802.3at PoE

(Warning：802.3af or non-standard POE adapter may cause unknown issues. Please use Ruijie POE+ switch or 802.3at POE adapter as power supplier)

Power Consumption≤17W
BluetoothSupport
EnvironmentOperating Temperature：-40°C～65°C
Storage Temperature：-40°C～85°C
Operating humidity：0%～100%, non-condensing
Storage humidity：0%～100%，condensing/non-condensing
InstallationPole/Wall-Mountable
Safety StandardGB4943、IEC 60950-1
EMC StandardGB9254、EN301 489，EN50155：EN50121
Vibration StandardIEC61373
Radio StandardEN300 328，EN301 893
MTBF>400000H
WLANMaximum number of clients: 512
Recommended number of clients: 100
Up to 8 SSID
Support SSID hiding

Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID

SSID-based and radio-based STA limit
Support Layer 2 user isolation
Support Reyee Mesh
RoamingSupport layer 2 and layer 3 roaming
SecuritySupport PSK authentication
Support static blacklist and whitelist
Support WPA（TKIP）,WPA2（AES）,WPA-PSK data encryption
RoutingSupport static IP address, DHCP, PPPoE Dial
Management and MaintenanceSupport unified networking of all network equipment

Support local or remote management with Ruijie Cloud APP

Support local management with web

Support remote management with Ruijie Noc Cloud platform

Platform Management FeaturesAutomatic RF adjustment via the platform
Unified configuration via the platform
Unified monitoring via the platform
