| Brand | QNAP |

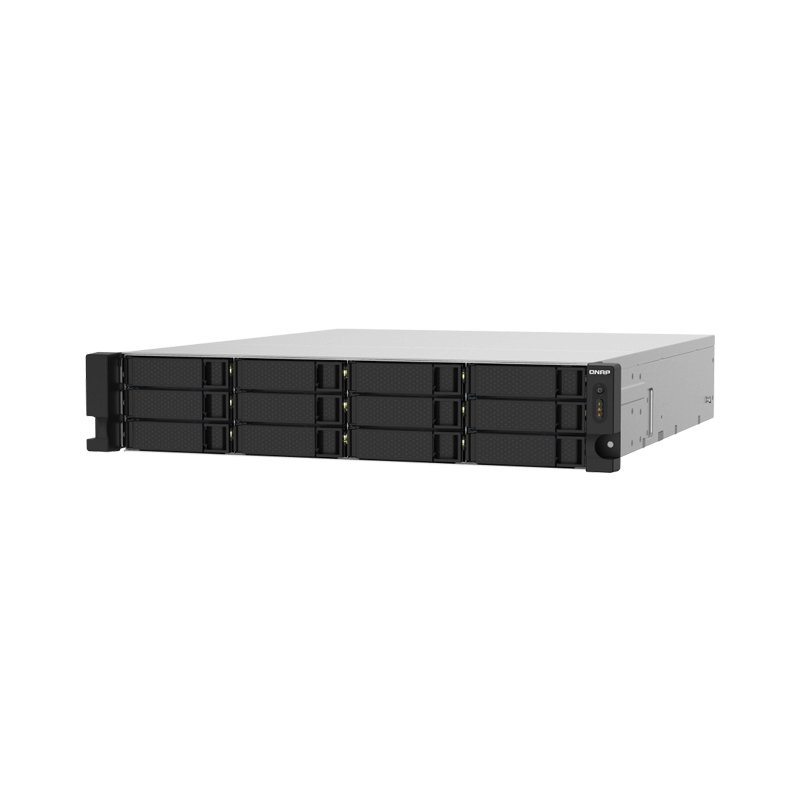

| Model | TS-1232PXU-RP-4G (Without HDD) |
| CPU Model | AnnapurnaLabs Alpine AL324 64-bit ARM® Cortex-A57 4-core 1.7GHz processor, 64-bit ARM |
| Operating System | QTS 5.1.3 |
| System Memory | 4GB (1×4 GB) UDIMM DDR4 |
| Drive Interface | SATA (2.5″ or 3.5″) Hot-swappable |
| Number of Drives | 12 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Display Panel | None |
| LED Indicators | HDD 1-12, Status, LAN, Storage expansion |
| Interface | N/A |
| USB Interface | 4 x USB 3.2 Gen 1 |
| LAN Interface | 2 x 2.5 Gigabit Ethernet Port 2 x 10GbE SFP+ |
| Video | Video Station |
| Audio | Music Station |
| Memory Slot | 1 x UDIMM DDR4, Up to 16 GB |
| Buttons | Power, Reset |
| Remote Control | PPTP, L2TP/IPSec, OpenVPN, QBelt (QNAP proprietary) |
| Networking | IPv4, IPv6 |
| RAID | 8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60 6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10 2-bay: JBOD, Single, RAID 0, 1 |
| Standard Compliance | N/A |
| Security | Domain Security Security Counselor |
| OS Support | Apple Mac OS 10.10 or later Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux IBM AIX 7, Solaris 10 or later UNIX Microsoft Windows 7, 8, 10 and 11 Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019 and 2022 |
| Management | Max. Number of Concurrent Connections (CIFS) – with Max. Memory : 700 |
| File system | N/A |
| File Sharing | File sharing across Windows, Mac, and Linux/UNIX Microsoft networking (CIFS/SMB) Apple networking (AFP) NFS version 3/4 services |
| Time Synchronization | N/A |
| Special Features | Wake on LAN (WOL) *Only the 2.5GbE port 2U Rackmount |
| Cooling Fans | 2 x 70mm, 12VDC |
| Power Supply | 250W (x2) PSU, 100 – 240V |
| Power Consumption | Operating Mode, Typical : 83.57 W |
| Environment | Operating Temperature : 0 – 40 °C (32°F – 104°F) Storage Temperature : -20 – 70°C (-4°F – 158°F) Relative Humidity : 5-95% RH non-condensing, wet bulb: 27?C (80.6?F) |
| Certification | N/A |
| Packaging Content | TS-1232PXU-RP Ethernet Cable x 1 Power Cord x 2 Flat head screw x 48 (for 3.5″ HDD) Flat head screw x 36 (for 2.5″ HDD) Quick Installation Guide (QIG) |
| Dimension | (W x D x H) : 51.10 x 43.20 x 8.86 cm |
| Net Weight | 12.94 KG |
