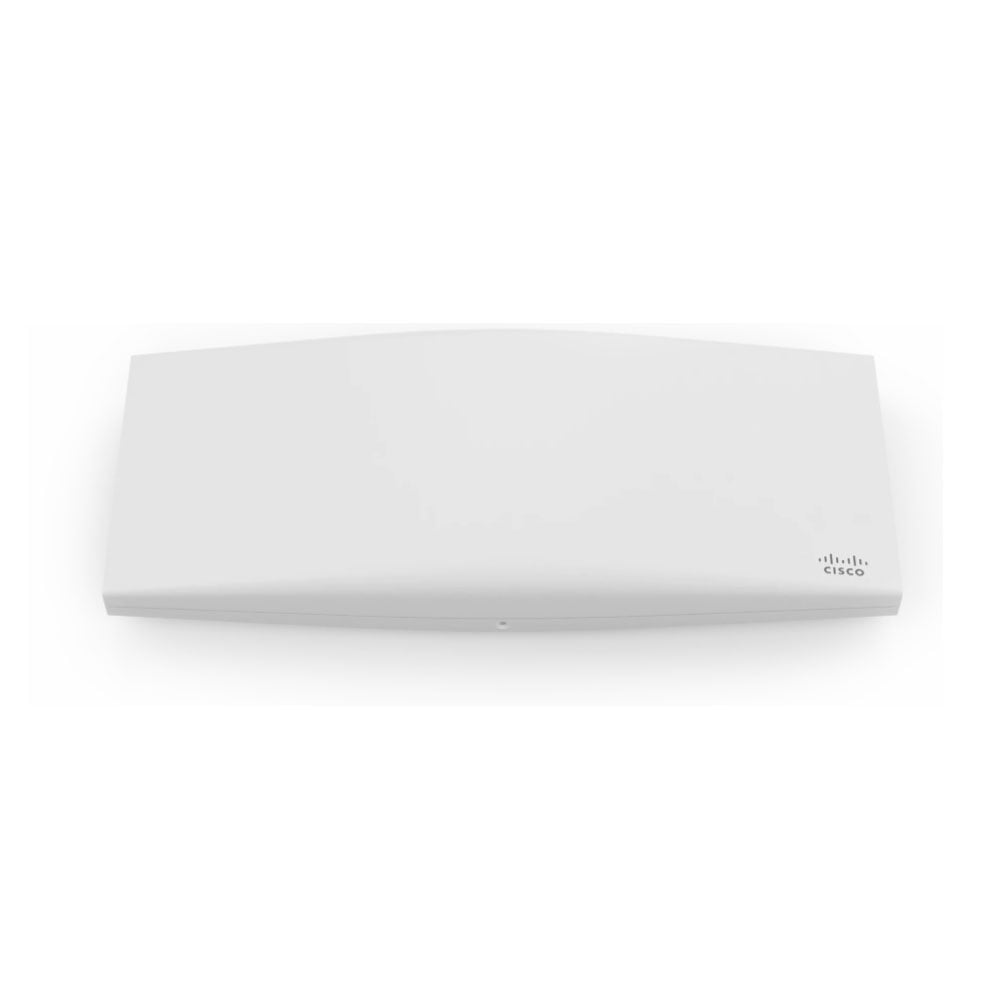

Cisco Meraki MR46 Wi-Fi 6 Indoor AP [ MR46-HW ]

Cisco Meraki MR46 Wi-Fi 6 Indoor AP [ MR46-HW ]

  • 4 radios: 2.4 GHz, 5 GHz, dual-band
  • Embedded WIDS/WIPS and BluetoothⓇ
  • 4-stream UL/DL MU-MIMO 802.11ax
  • 1 × 2.5 Gbps Multigigabit Ethernet port
  • PoE: 802.3at
  • AC adapter available

รบกวนติดต่อสอบถามก่อนสั่งซื้อ

฿36,900.00*ราคายังไม่รวม VAT
฿39,483.00*ราคารวม VAT แล้ว

ขอใบเสนอราคา

Specifications

Category Specifications
Radios
  • 2.4 GHz 802.11b/g/n/ax client access radio
  • 5 GHz 802.11a/n/ac/ax client access radio
  • 2.4 GHz and 5 GHz dual-band WIDS/WIPS, spectrum analysis, and location analytics radio
  • 2.4 GHz Bluetooth Low Energy radio with Beacon support
  • Concurrent operation of all four radios
  • Max aggregate frame rate: 3.5 Gbps
  • Supported frequency bands (country-specific restrictions apply):
    • 2.412-2.484 GHz
    • 5.150-5.250 GHz (UNII-1)
    • 5.250-5.350 GHz (UNII-2)
    • 5.470-5.600, 5.660-5.725 GHz (UNII-2e)
    • 5.1725-5.825 GHz (UNII-3)
Antenna
  • Integrated omni-directional antenna (5.4 dBi gain at 2.4 GHz, 6 dBi gain at 5 GHz)
  • Individual antenna elements for each radio
802.11ax, 802.11ac Wave 2 and 802.11n Capabilities
  • UL/DL OFDMA, TWT support, BSS coloring
  • 4×4 multiple input, multiple output (MIMO) with 4 spatial streams
  • UL/DL SU-MIMO and MU-MIMO Support
  • Maximal ratio combining (MRC) and beamforming
  • 20 and 40 MHz channels (802.11n) 20, 40 and 80 MHz channels (802.11ac Wave 2) 20, 40 and 80 MHz channels (802.11ax)
  • Up to 1024 QAM on both 2.4 GHz and 5 GHz bands
  • Packet aggregation
Power
  • Power over Ethernet: 42.5 – 57 V (802.3at) (802.3at compliant)
  • Alternative 12V DC input
  • Power consumption: 30W max (802.3at)
  • Power over Ethernet injector and DC adapter sold separately
Interfaces
  •  1× 100/1000/2.5G BASE-T Ethernet
  • 1× DC power connector (5.5 mm × 2.5 mm, center positive)
Mounting
  • All standard mounting hardware included
  • Desktop, ceiling and wall mount capable
  • Ceiling tile rail (9/16, 15/16, or 1 1/2″ flush or recessed rails), assorted cable junction boxes
  • Bubble level on mounting cradle for accurate horizontal wall mounting
Physical Security
  • Two security screw options included
  • Kensington lock hard point
  • Concealed mount plate with anti-tamper cable bay
Environment
  • Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
  • Humidity: 5 to 95% non-condensing
Physical Dimensions
  • 12.05″ × 5.06″ × 1.74″ (30.6 cm × 12.84 cm × 4.43 cm), not including deskmount feet or mount plate
  • Weight: 28.21 oz (800 g)
รหัสสินค้า: MR46-HW หมวดหมู่:
