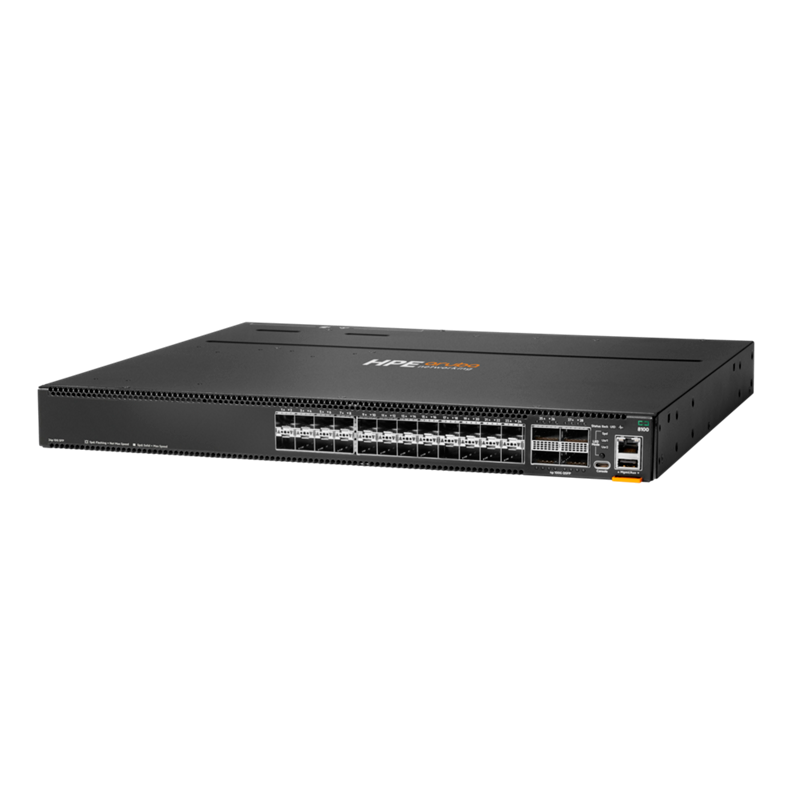

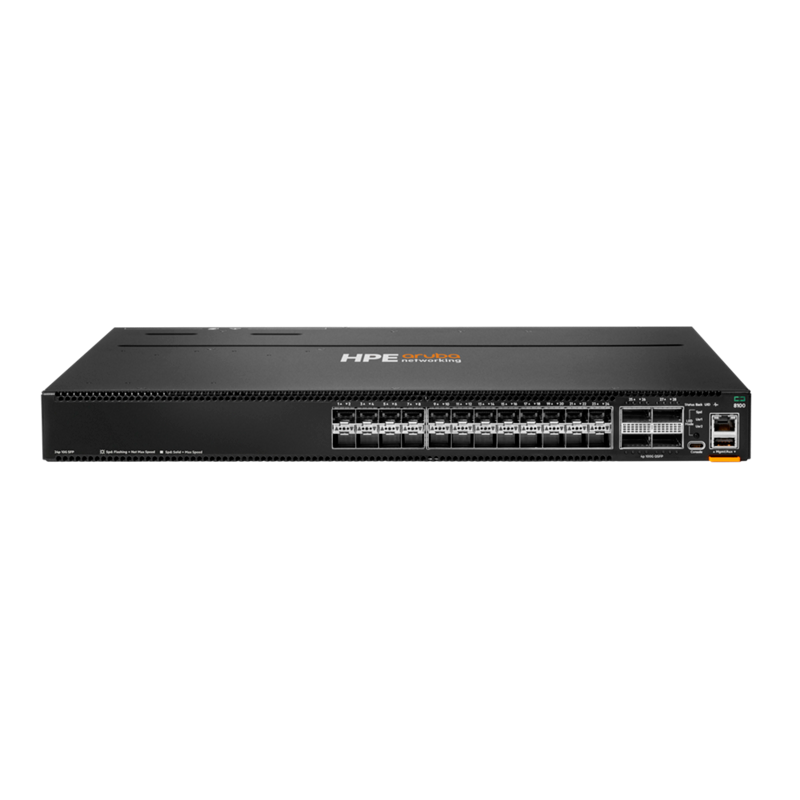

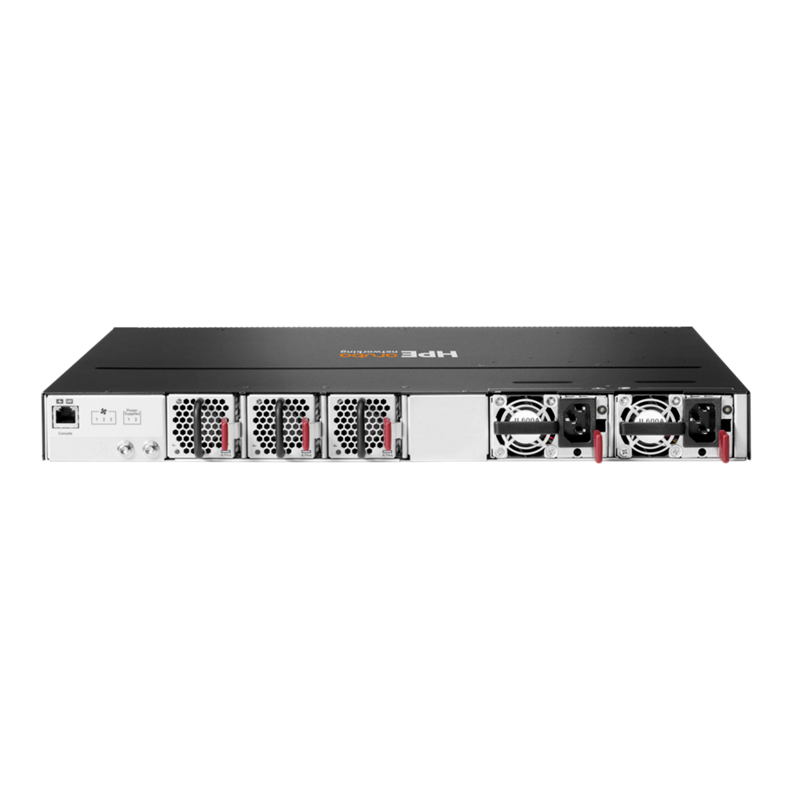

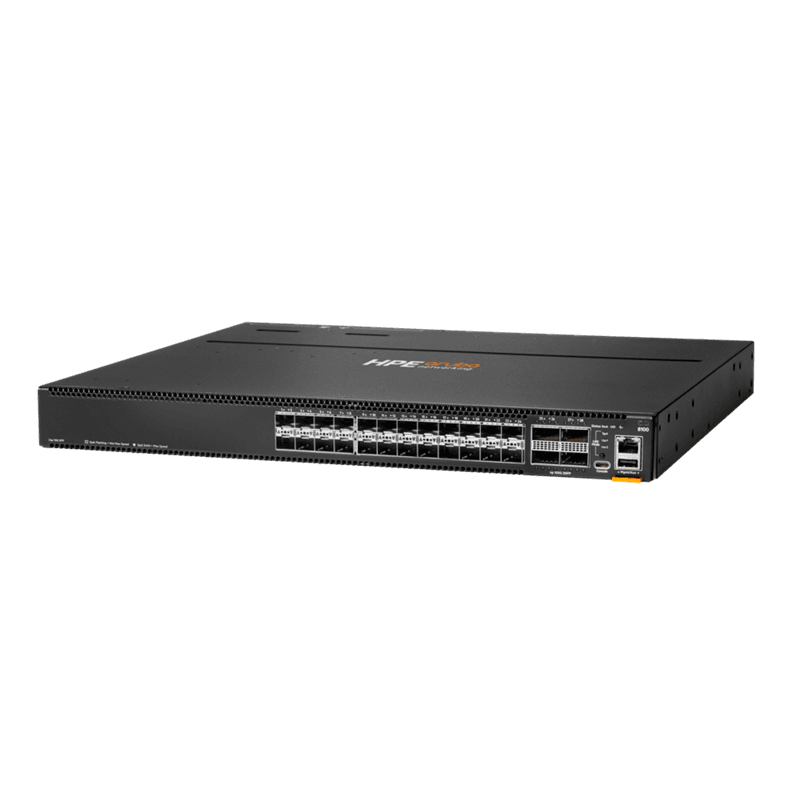

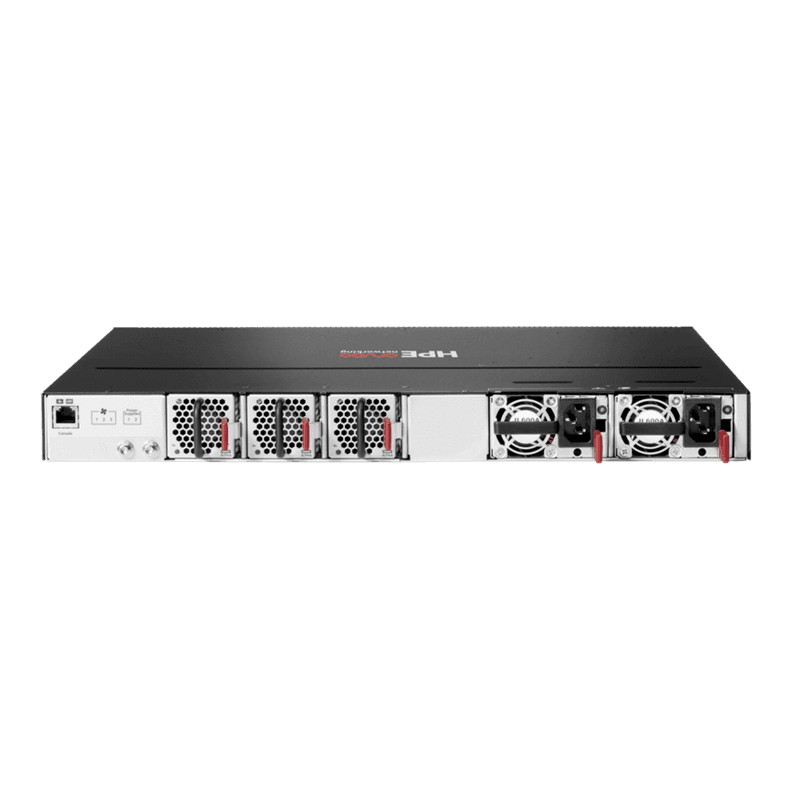

HPE Aruba [R9W86A] CX 8100 24x10G SFP+ 4×40/100G QSFP28 FB Airflow 3Fan 2AC PSU Switch Bundle

Differentiator24 ports of 1 GbE/10 GbE (SFP/SFP+)
4 ports of 40 GbE/100 GbE (QSFP+/QSFP28)

Includes 2 Power Supplies with No open PS slots
Includes 3 Fan Trays with No open FT Slots
Includes 1 2-Post Rack Kit
Min=0 \ Max= 24 SFP/SFP+ 1/10 G Transceivers
QSA28 Adapter Min=0 \ Max=6
1U – Height

Power consumption120W Idle Power / 375W Max Power

Heat dissipation1275 BTU/hr

Input voltage100-127V 7.1A for 100-127 VAC
200-240V 3.4A for 200-240 VAC

Ports24 ports of 1 GbE/10 GbE (SFP/SFP+)
4 ports of 40 GbE/100 GbE (QSFP+/QSFP28)

Switching capacity1.28 Tbps

Memory and processorQuad Core ARM Cortex™ A72 @ 1.8 GHz

Power supply nameBundles include the 2 power supplies (2xJL600A in R9W86A, R9W88A, R9W90A & R9W92A)

Operating temperatureUp to 32°F to 113°F (0°C to 45°C) up to 5000 ft depending on the model

Management featuresRJ-45 serial and USB-C console; RJ-45 Ethernet port; USB-Type A

WarrantyLimited lifetime warranty

Detailed product descriptionThe HPE Aruba Networking CX 8100 Switch Series is based on AOS-CX, a modern, database-driven operating system that automates and simplifies many critical and complex tasks. The enhanced capabilities of AOS-CX provide a unique set of differentiators for campus and data center switching.
