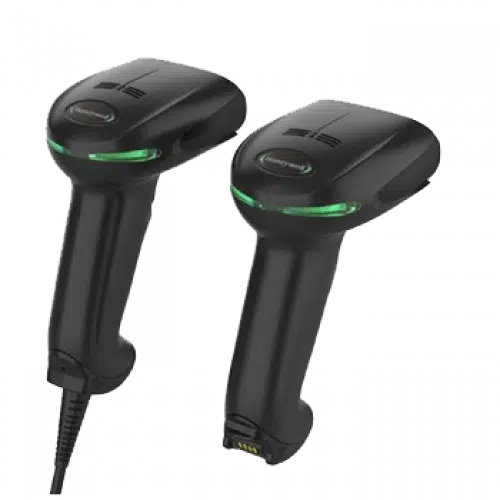

Honeywell 1950GSR-2USB-A Scanner (เครื่องสแกนบาร์โค้ด)


Mechanical / Electrical
Dimensions (L x W x H) 99 mm x 64 mm x 165 mm (3.9 in x 2.5 in x 6.5 in)
Scanner Weight 160 g (5.6 oz)
Input Voltage 4.4V DC – 5.5V DC
Operating Power (Charging) Bases 2.5 W (500 mA @ 5V DC)
Host System Interfaces USB, Keyboard Wedge, RS-232, RS485 support for TGCS (IBM) 46XX
User Indicators Good Decode LEDs, Rear View LEDs, Beeper (adjustable tone and volume), Vibration (optional)
Environmental
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Electrostatic Discharge (ESD) ±8 kV indirect coupling plane, ±15 kV direct air
Humidity 0% to 95% relative humidity, non-condensing
Tumble Spec 2,000 tumbles at 0.5 m (1.6 ft)
Drop Engineered to withstand 50 drops from 1.8 m (6 ft) to concrete
Environmental Sealing IP52
Light Levels 0 to 100,000 lux (9,290 foot-candles)
Scan Performance & Warranty
Scan Pattern Area Image (1280 x 800 pixel array)
Motion Tolerance Up to 400 cm/s (157 in/s) for 13 mil UPC at optimal focus
Scan Angle SR / HD: Horizontal 48°, Vertical 30°
Print Contrast 20% minimum reflectance difference
Roll, Pitch, Skew ±360°, ±45°, ±65°
Decode Capabilities Reads standard 1D, PDF, 2D, Postal, Digimarc, DOT Code, and OCR symbologies
Note: Decode capabilities dependent on configuration
Warranty 5-year factory warranty
รหัสสินค้า: 1950GSR-2USB-A หมวดหมู่:
