| Wireless | ||
| Radio/Range | 2.4 to 2.5 GHz (ISM Band), Adaptive Frequency Hopping, Bluetooth v2.1; Class 2: 10 m (33’) line of sight | |
| Data Rate | Up to 3 Mbps | |
| Battery | 1800 mAh Lithium-ion (minimum) | |
| Number of Scans per Charge | Up to 45,000 scans | |
| Expected Hours of Operation | 12 hours | |
| Expected Charge Time | 4 hours | |
| Mechanical / Electrical | ||

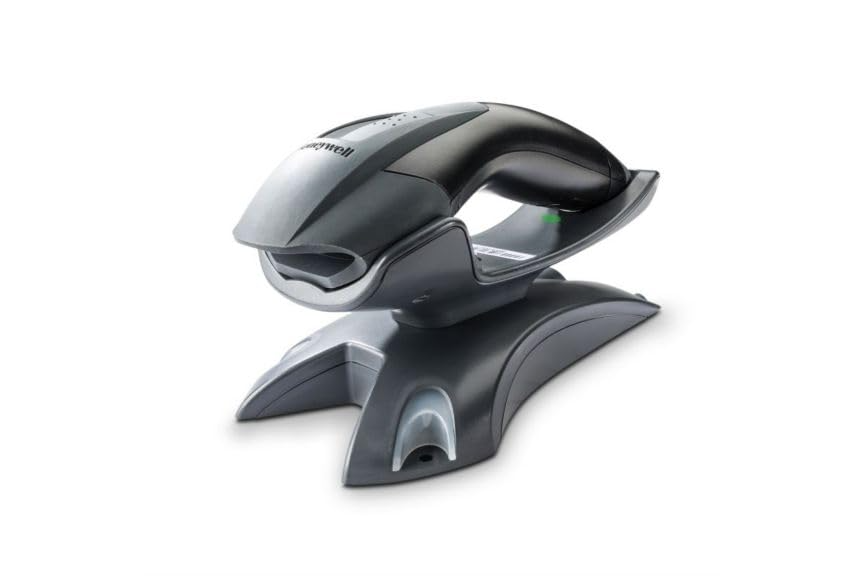

| Scanner: Voyager 1202g | Charge and Communication Base: CCB00-010BT | |
| Dimensions (LxWxH) | 180 mm x 66 mm x 92 mm | 200 mm x 67 mm x 97 mm |
| Weight | 180 g (includes battery) | 185 g |
| Operating Power (Charging) | N/A | 5 W (1 A @ 5 V with power supply); 2.5 W (0.5 A @ 5 V with USB) |
| Non-Charging Power | N/A | 0.625 W (0.125 A @ 5 V) |
| Host System Interfaces | N/A | USB, Keyboard Wedge, RS232, IBM 46xx (RS485) |
| Environmental | ||
| Scanner: Voyager 1202g | Charge and Communication Base: CCB00-010BT | |
| Operating Temperature | 5°C to 40°C (41°F to 104°F) | Charging: 5°C to 40°C (41°F to 104°F); Non-Charging: 0°C to 50°C (32°F to 122°F) |
| Storage Temperature with Battery | -5°C to 35°C (23°F to 95°F) | -5°C to 35°C (23°F to 95°F) |
| Humidity | 0% to 95% relative humidity, non-condensing | 0% to 95% relative humidity, non-condensing |
| Drop | Designed to withstand 30 drops from 1.5 m (5’) | Designed to withstand 30 drops from 1 m (3.3’) |
| Environmental Sealing | IP42 | IP42 |
| Light Levels | 0 to 70,000 lux (6,500 foot-candles) | N/A |
| Scan Performance & Warranty | ||
| Scan Pattern | Single scan line | |
| Scan Speed (Laser Only) | 100 scan lines per second | |
| Scan Angle | Horizontal: 30° | |
| Print Contrast | 10% minimum reflectance difference | |
| Pitch / Skew | 60°, 60° | |
| Decode Capabilities | Reads standard 1D and GS1 DataBar symbologies (Decode capabilities dependent on kit configuration) |
|
| Factory Warranty | 3 years (Battery warranty is 1 year) | |
