Fortinet Firewall

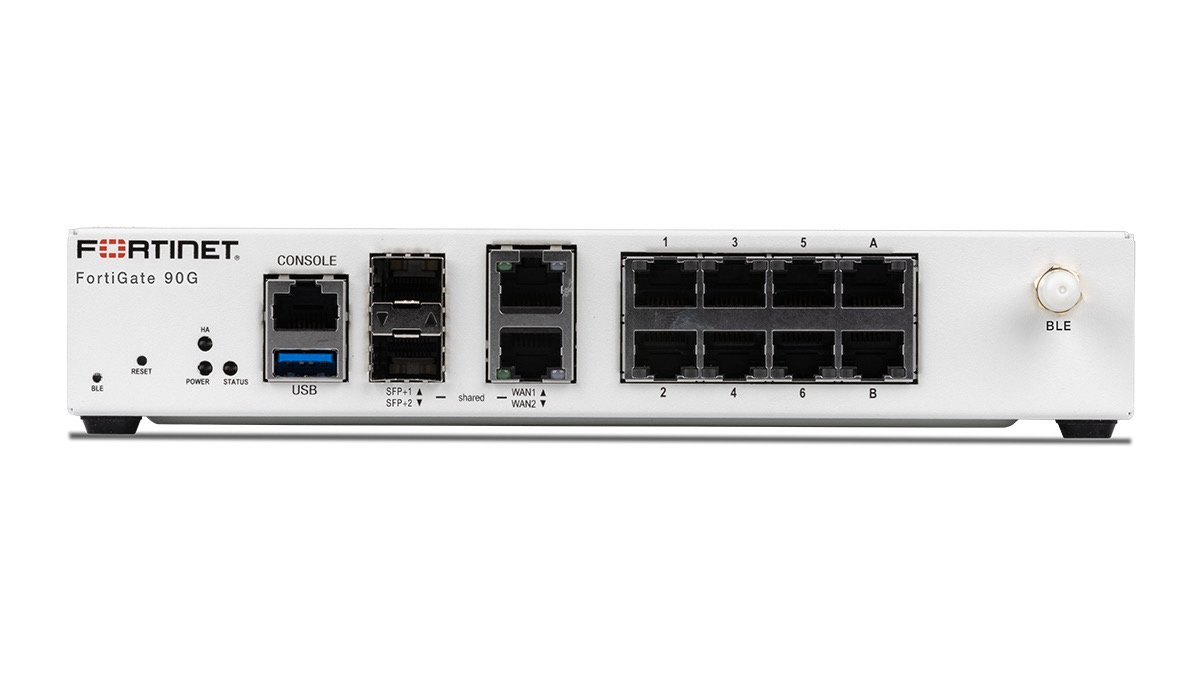

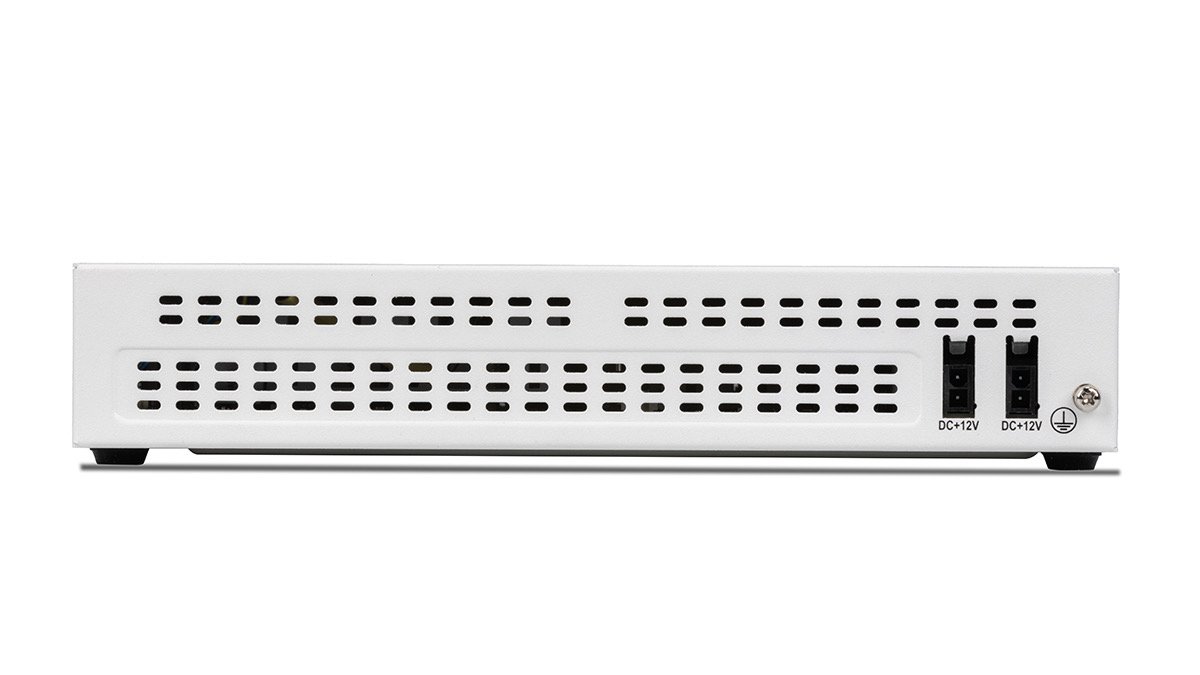

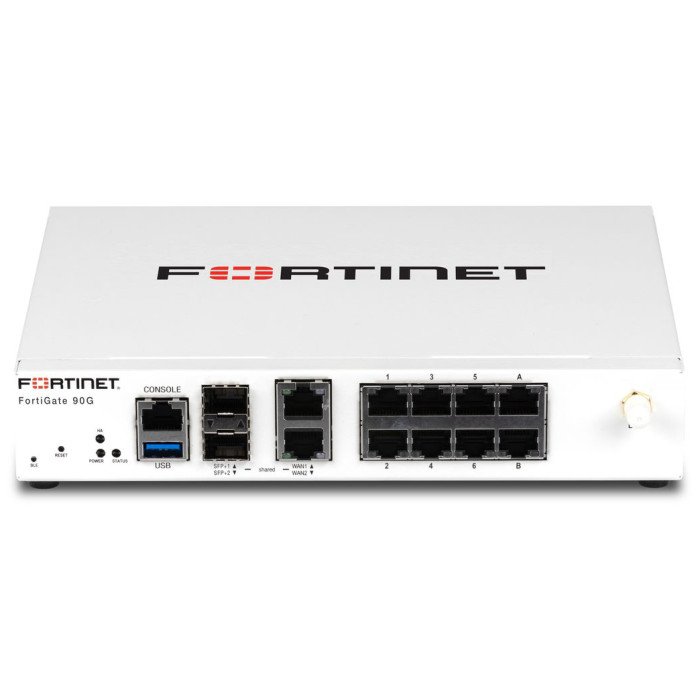

FortiGate 90G
- IPS 4.5 Gbps
- NGFW 2.5 Gbps
- Threat Protection 2.2 Gbps
- Interface Multiple GE RJ45, 10 GE RJ45, and SFP+ Share Media Slots | Variants with Internal storage
- IPS Throughput 4.5 Gbps
- NGFW Throughput 2.5 Gbps
- Threat Protection Throughput 2.2 Gbps
รบกวนติดต่อสอบถามก่อนสั่งซื้อ
Price range: ฿120,000.00 through ฿290,000.00*ราคายังไม่รวม VAT ฿128,400.00*ราคารวม VAT แล้ว
คุณสมบัติ
| Hardware Specifications | ||
| 10/5/2.5/GE RJ45 or 10GE/GE SFP+/ SFP Shared Media pairs | 2 | |
| s 2 2 GE RJ45 Internal Ports | 8 | |
| Wireless Interface | – | |
| USB Ports | 1 | |
| Console (RJ45) | 1 | |
| Internal Storage | – | |
| Trusted Platform Module (TPM) | Yes | |
| Bluetooth Low Energy (BLE) | Yes | |
| System Performance — Enterprise Traffic Mix | ||
| IPS Throughput | 4.5 Gbps | |
| NGFW Throughput | 2.5 Gbps | |
| Threat Protection Throughput | 2.2 Gbps | |
| System Performance and Capacity | ||
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 28 / 28 / 27.9 Gbps | |
| Firewall Latency (64 byte UDP packets) | 3.23 μs | |
| Firewall Throughput (Packets Per Second) | 41.85 Mpps | |
| Concurrent Sessions (TCP) | 3 M | |
| New Sessions/Second (TCP) | 124 000 | |
| Firewall Policies | 5000 | |
| IPsec VPN Throughput (512 byte) | 25 Gbps | |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 | |
| Client-to-Gateway IPsec VPN Tunnels | 2500 | |
| SSL-VPN Throughput | 1.4 Gbps | |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 200 | |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 2.6 Gbps | |
| SSL Inspection CPS (IPS, avg. HTTPS) | 1400 | |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 300 000 | |
| Application Control Throughput (HTTP 64K) | 6.7 Gbps | |
| CAPWAP Throughput (HTTP 64K) | 23.6 Gbps | |
| Virtual Domains (Default / Maximum) | 10/10/ | |
| Maximum Number of FortiSwitches Supported | 24 | |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 96 / 48 | |
| Maximum Number of FortiTokens | 500 | |
| High Availability Configurations | Active-Active, Active-Passive, Clustering | |
| Dimensions | ||
| Height x Width x Length (inches) | 1.65 x 8.5 x 7.0 | |
| Height x Width x Length (mm) | 42 x 216 x 178 | |
| Weight | 2.47 lbs (1.12 kg) | |
| Form Factor | Desktop | |
| Operating Environment and Certifications | ||
| Input Rating | 12V DC, 3A (dual redundancy optional) | |
| Power Required (Redundancy Optional) | Powered by up to 2 External DC Power Adapters (1 adapter included), 100–240V AC, 50/60 Hz | |
| Power Supply Efficiency Rating | 80Plus Compliant | |
| Power Required (Redundancy Optional) | Powered by up to 2 External DC Power Adapters (1 adapter included), 100–240V AC, 50/60 Hz | |
| Maximum Current | 115Vac/0.4A, 230Vac/0.2A | |
| Power Consumption (Average / Maximum) | 19.9 W / 20.53 W | |
| Heat Dissipation | 70.0 BTU/hr | |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) | |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) | |
| Humidity | 10% to 90% non-condensing | |
| Noise Level | 21.73 dBA | |
| Operating Altitude | Up to 10 000 ft (3048 m) | |
| Compliance | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB | |
| Certifications | USGv6/IPv6 | |
| Bundle | FortiGate 90G Box Bundle with 1 Year (24*7), FortiGate 90G Box Bundle with 3 Year (24*7), FortiGate 90G Box Bundle with 5 Year (24*7) |
|---|
