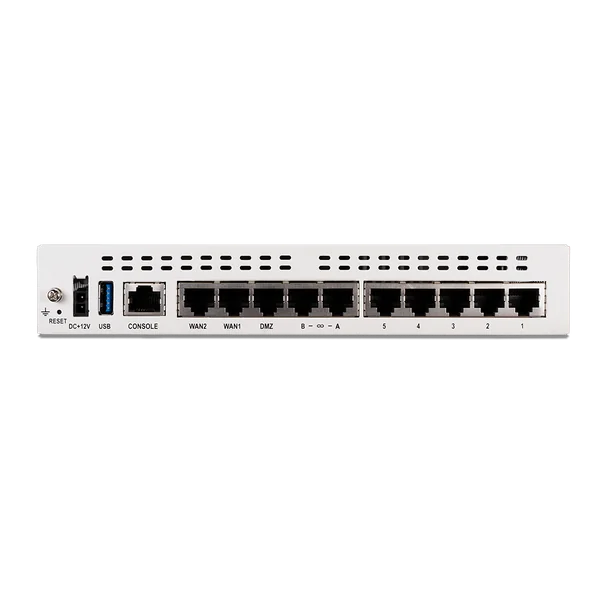

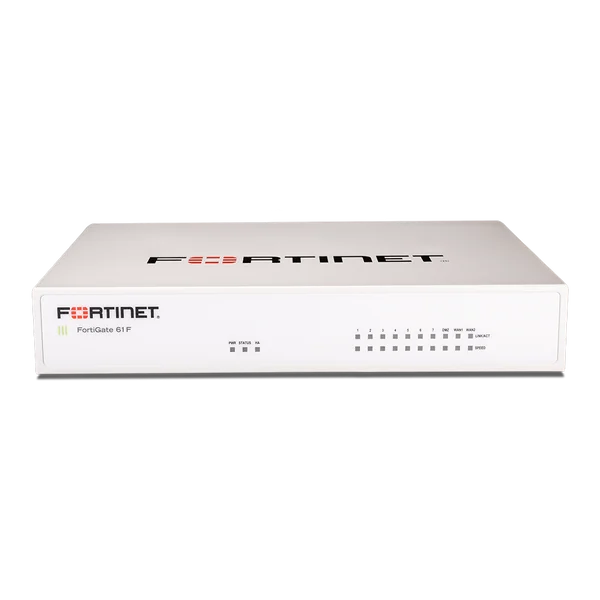

Fortinet Firewall
FortiGate 61F
- GE RJ45 Switch Ports 5
- GE RJ45 WAN Port 2
- Internal Storage : 1 x 128GB SSD
- Firewall Throughput : 10/10/6 Gbps
- NGFW Throughput : 1 Gbps
- Threat Protection Throughput : 700 Mbps
- SSL Inspection Throughput : 630 Mbps
฿56,900.00 – ฿130,000.00*ราคายังไม่รวม VAT ฿60,883.00*ราคารวม VAT แล้ว
คุณสมบัติ
| Hardware Specifications | ||
| GE RJ45 WAN / DMZ Ports | 2/1 | |
| GE RJ45 Internal Ports | 5 | |
| GE RJ45 FortiLink Ports | 2 | |
| GE RJ45 PoE/+ Ports | – | |
| Wireless Interface | – | |
| USB Ports | 1 | |
| Console (RJ45) | 1 | |
| Internal Storage | 1 x 128 GB SSD | |
| System Performance — Enterprise Traffic Mix | ||
| IPS Throughput | 1.4 Gbps | |
| NGFW Throughput | 1 Gbps | |
| Threat Protection Throughput | 700 Mbps | |
| System Performance | ||
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 10/10/6 Gbps | |
| Firewall Latency (64 byte UDP packets) | 4 μs | |
| Firewall Throughput (Packets Per Second) | 9 Mpps | |
| Concurrent Sessions (TCP) | 700,000 | |
| New Sessions/Second (TCP) | 35,000 | |
| Firewall Policies | 5,000 | |
| IPsec VPN Throughput (512 byte packets) | 6.5 Gbps | |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 | |
| Client-to-Gateway IPsec VPN Tunnels | 500 | |
| SSL-VPN Throughput | 900 Mbps | |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 200 | |
| SSL Inspection Throughput | 750 Mbps | |
| SSL Inspection CPS (IPS, avg. HTTPS) | 400 | |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 55,000 | |
| Application Control Throughput | 1.8 Gbps | |
| CAPWAP Throughput (HTTP 64K) | 15 Gbps | |
| NGFW Throughput | 250 Mbps | |
| Threat Protection Throughput | 180 Mbps | |
| CAPWAP Throughput | 1.5 Gbps | |
| Virtual Domains (Default / Maximum) | 10 / 10 | |
| Maximum Number of FortiSwitches Supported | 16 | |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 30 / 10 | |
| Maximum Number of FortiTokens | 500 | |
| Maximum Number of Registered FortiClients | 200 | |
| High Availability Configurations | Active / Active, Active / Passive, Clustering | |
| Dimensions | ||
| Height x Width x Length (inches) | 1.5 x 8.5 x 6.3 | |
| Height x Width x Length (mm) | 38 x 216 x 160 | |
| Weight | 1.9 lbs (0.9 kg) | |
| Form Factor | Desktop | |
| Operating Environment and Certifications | ||
| Power Required | 100–240V AC, 50–60 Hz (External DC Power Adapter, 12 VDC) |
|
| Maximum Current | 115V AC / 0.2A, 230V AC / 0.1A | |
| Power Consumption (Average / Maximum) | 17.2 W / 18.7 W | |
| Heat Dissipation | 63.8 BTU/hr | |
| Operating Temperature | 32–104°F (0–40°C) | |
| Storage Temperature | -31–158°F (-35–70°C) | |
| Humidity | 10–90% non-condensing | |
| Noise Level | Fanless 0 dBA | |
| Operating Altitude | Up to 7,400 ft (2,250 m) | |
| Compliance | FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB | |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN | |
