Fortinet Firewall

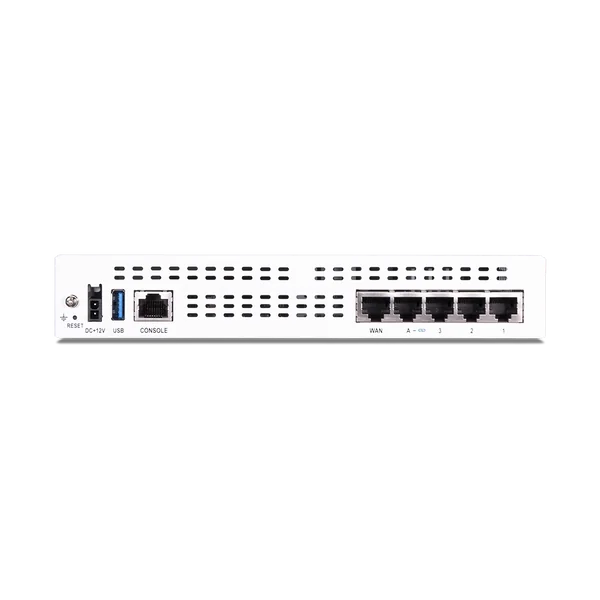

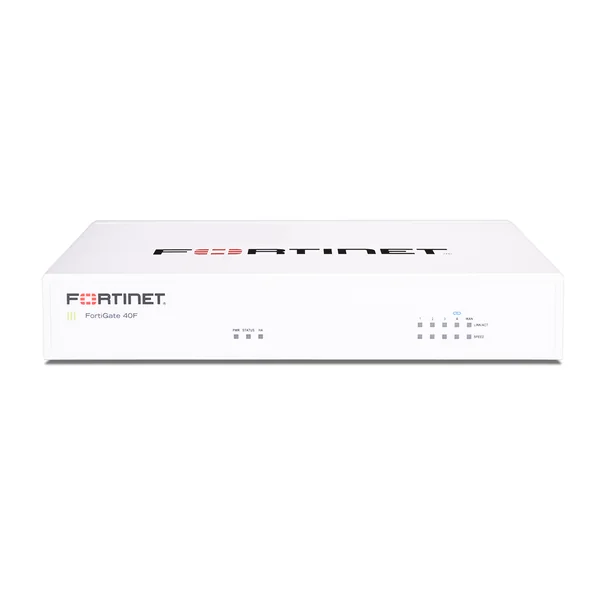

FortiGate 40F
- IPS 1 Gbps
- NGFW 800 Mbps
- Threat Protection 600 Mbps
- Interfaces Multiple GE RJ45 | Wi-Fi variants
- IPS Throughput 1 Gbps
- NGFW Throughput 800 Mbps
- Threat Protection Throughput 600 Mbps
รบกวนติดต่อสอบถามก่อนสั่งซื้อ
Price range: ฿30,000.00 through ฿89,000.00*ราคายังไม่รวม VAT ฿32,100.00*ราคารวม VAT แล้ว
คุณสมบัติ
| Hardware Specifications | ||
| GE RJ45 WAN / DMZ Ports | 1 | |
| GE RJ45 Internal Ports | 3 | |
| GE RJ45 FortiLink Ports | 1 | |
| GE RJ45 PoE/+ Ports | – | |
| Wireless Interface | – | |
| USB Ports | 1 | |
| Console (RJ45) | 1 | |
| Internal Storage | – | |
| System Performance — Enterprise Traffic Mix | ||
| IPS Throughput | 1 Gbps | |
| NGFW Throughput | 800 Mbps | |
| Threat Protection Throughput | 600 Mbps | |
| System Performance | ||
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 5/5/5 Gbps | |
| Firewall Latency (64 byte UDP packets) | 4 μs | |
| Firewall Throughput (Packets Per Second) | 7.5 Mpps | |
| Concurrent Sessions (TCP) | 700,000 | |
| New Sessions/Second (TCP) | 35,000 | |
| Firewall Policies | 5,000 | |
| IPsec VPN Throughput (512 byte) | 4.4 Gbps | |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 | |
| Client-to-Gateway IPsec VPN Tunnels | 250 | |
| SSL-VPN Throughput | 490 Mbps | |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 200 | |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 310 Mbps | |
| SSL Inspection CPS (IPS, avg. HTTPS) | 320 | |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 55,000 | |
| Application Control Throughput (HTTP 64K) | 990 Mbps | |
| CAPWAP Throughput (HTTP 64K) | 3.5 Gbps | |
| Virtual Domains (Default / Maximum) | 10 / 10 | |
| Maximum Number of FortiSwitches Supported | 8 | |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 10 / 5 | |
| Maximum Number of FortiTokens | 500 | |
| Maximum Number of Registered FortiClients | 200 | |
| High Availability Configurations | Active / Active, Active / Passive, Clustering | |
| Dimensions | ||
| Height x Width x Length (inches) | 1.44 x 5.5 x 8.52 | |
| Height x Width x Length (mm) | 36.5 x 140 x 216 | |
| Weight | TBA | |
| Form Factor | Desktop | |
| Operating Environment and Certifications | ||
| Power Required | 100–240V AC, 60–50 Hz (External DC Power Adapter, 12 VDC) | |
| Maximum Current | 100V AC / 0.2A, 240V AC / 0.1A | |
| Total Available PoE Power Budget | N/A | |
| Power Consumption (Average / Maximum) | 12.4 W / 15.4 W | |
| Heat Dissipation | 52.55 BTU/hr | |
| Operating Temperature | 32–104°F (0–40°C) | |
| Storage Temperature | -31–158°F (-35–70°C) | |
| Humidity | 10–90% non-condensing | |
| Noise Level | Fanless 0 dBA | |
| Operating Altitude | Up to 7,400 ft (2,250 m) | |
| Compliance | FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB | |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN | |
| Bundle | FortiGate 40F Box Bundle with 1 Year (24*7), FortiGate 40F Box Bundle with 3 Year (24*7), FortiGate 40F Box Bundle with 5 Year (24*7) |
|---|
