Fortinet Firewall

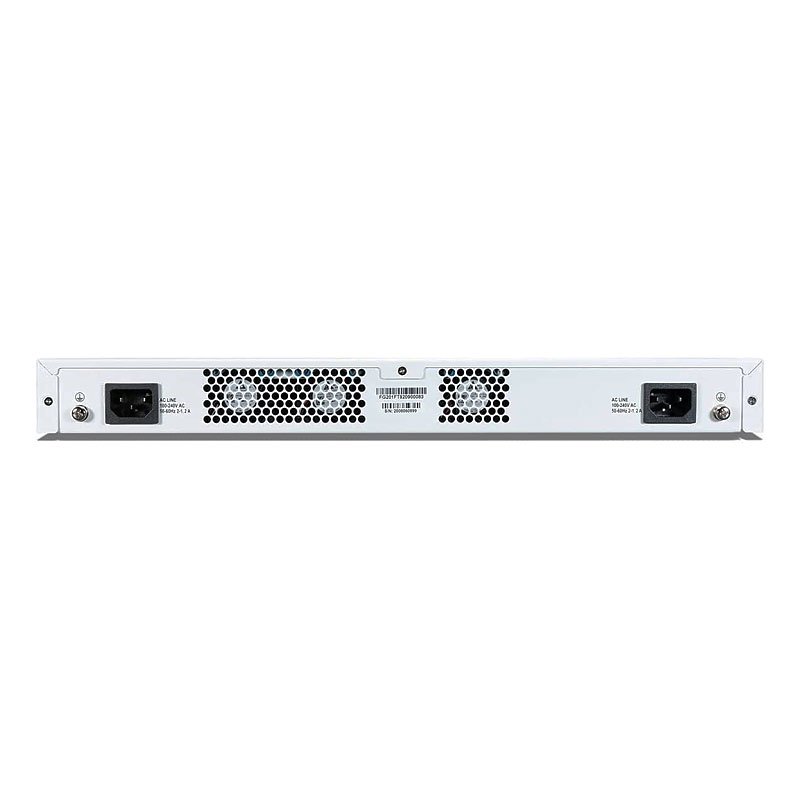

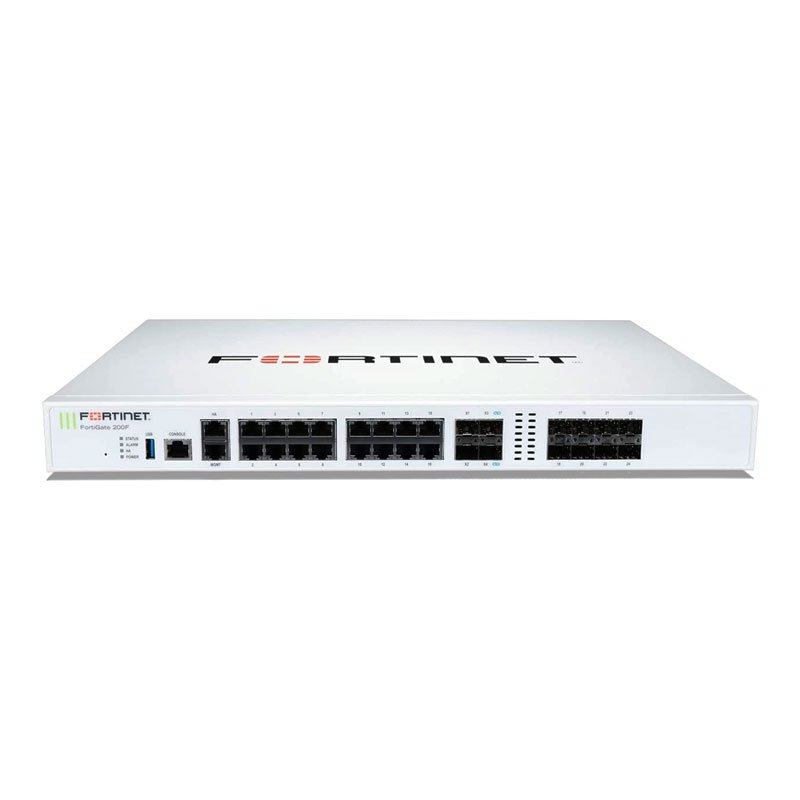

FortiGate 200F
- IPS Throughput 5 Gbps
- NGFW Throughput 3.5 Gbps
- Threat Protection Throughput 3 Gbps
- Firewall Latency (64 byte UDP packets) 4.78 μs
- Firewall Throughput (Packets Per Second) 16.5 Mpps
- Concurrent Sessions (TCP) 3 Million
- New Sessions/Second (TCP) 280,000
- Firewall Policies 10,000
- IPsec VPN Throughput (512 byte packets) 13 Gbps
- Gateway-to-Gateway IPsec VPN Tunnels 2,500
- Client-to-Gateway IPsec VPN Tunnels 16,000
รบกวนติดต่อสอบถามก่อนสั่งซื้อ
Price range: ฿250,000.00 through ฿650,000.00*ราคายังไม่รวม VAT ฿267,500.00*ราคารวม VAT แล้ว
คุณสมบัติ
| Hardware Specifications | ||
| GE RJ45 Ports | 16 | |
| GE RJ45 Management/HA | 1 / 1 | |
| GE SFP Slots | 8 | |
| 10GE SFP+ FortiLink Slots (default) | 2 | |
| 10GE SFP+ Slots | 2 | |
| USB Port | 1 | |
| Console Port | 1 | |
| Internal Storage | – | |
| Included Transceivers | 0 | |
| System Performance — Enterprise Traffic Mix | ||
| IPS Throughput | 5 Gbps | |
| NGFW Throughput | 3.5 Gbps | |
| Threat Protection Throughput | 3 Gbps | |
| System Performance | ||
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 27 / 27 / 11 Gbps | |
| Firewall Latency (64 byte UDP packets) | 4.78 μs | |
| Firewall Throughput (Packets Per Second) | 16.5 Mpps | |
| Concurrent Sessions (TCP) | 3 Million | |
| New Sessions/Second (TCP) | 280,000 | |
| Firewall Policies | 10,000 | |
| IPsec VPN Throughput (512 byte) | 13 Gbps | |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,500 | |
| Client-to-Gateway IPsec VPN Tunnels | 16,000 | |
| SSL-VPN Throughput | 2 Gbps | |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 500 | |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 4 Gbps | |
| SSL Inspection CPS (IPS, avg. HTTPS) | 3,500 | |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 300,000 | |
| Application Control Throughput (HTTP 64K) | 13 Gbps | |
| CAPWAP Throughput (HTTP 64K) | 20 Gbps | |
| Virtual Domains (Default / Maximum) | 10 / 10 | |
| Maximum Number of FortiSwitches Supported | 64 | |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 256 / 128 | |
| Maximum Number of FortiTokens | 5,000 | |
| High Availability Configurations | Active / Active, Active / Passive, Clustering | |
| Dimensions | ||
| Height x Width x Length (inches) | 1.73 x 17.01 x 13.47 | |
| Height x Width x Length (mm) | 44 x 432 x 342 | |
| Form Factor (supports EIA / non-EIA standards) | Ear Mount, 1 RU | |
| Weight | 9.92 lbs (4.5 kg) | |
| Environment | ||
| Power Required | 100–240V AC, 50-60 Hz | |
| Maximum Current | 100V / 2A, 240V / 1.2A | |
| Power Consumption (Average / Maximum) | 101.92 W / 118.90 W | |
| Heat Dissipation | 405.70 BTU/h | |
| Redundant Power Supplies | Yes | |
| Operating Temperature | 32–104°F (0–40°C) | |
| Storage Temperature | -31–158°F (-35–70°C) | |
| Operating Altitude | Up to 7,400 ft (2,250 m) | |
| Humidity | 20–90% non-condensing | |
| Noise Level | 49.9 dBA | |
| Compliance | FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI | |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN, IPv6 | |
| Bundle | FortiGate 200F Box Bundle with 1 Year (24*7), FortiGate 200F Box Bundle with 3 Year (24*7), FortiGate 200F Box Bundle with 5 Year (24*7) |
|---|
