Fortinet Firewall

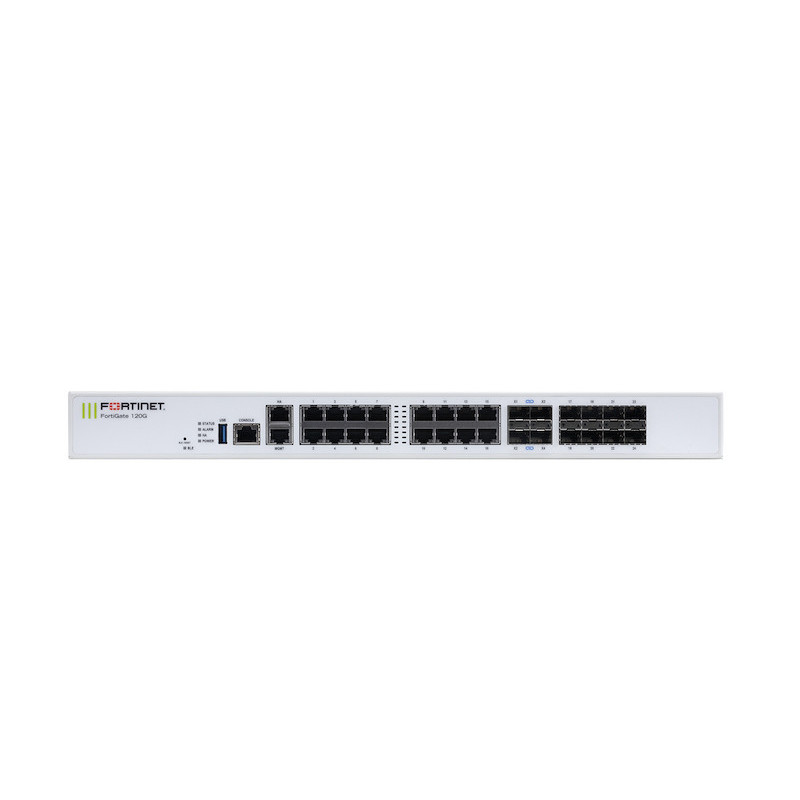

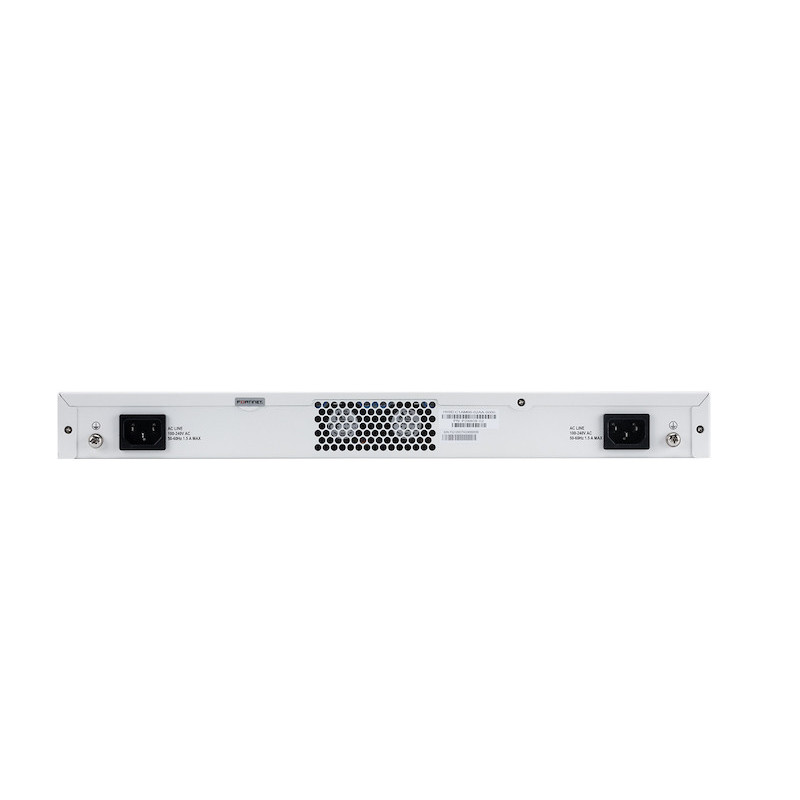

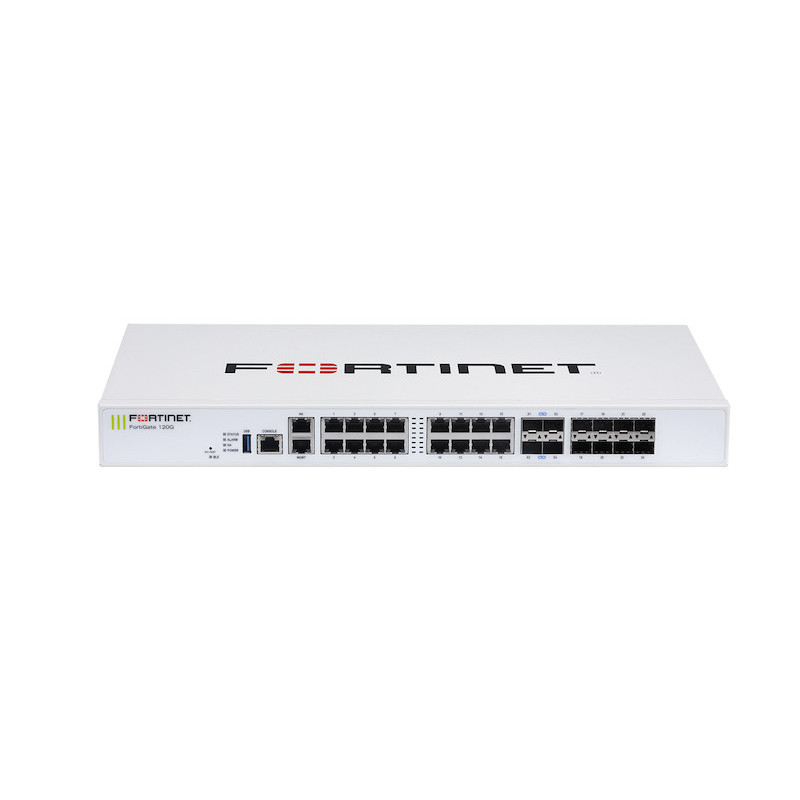

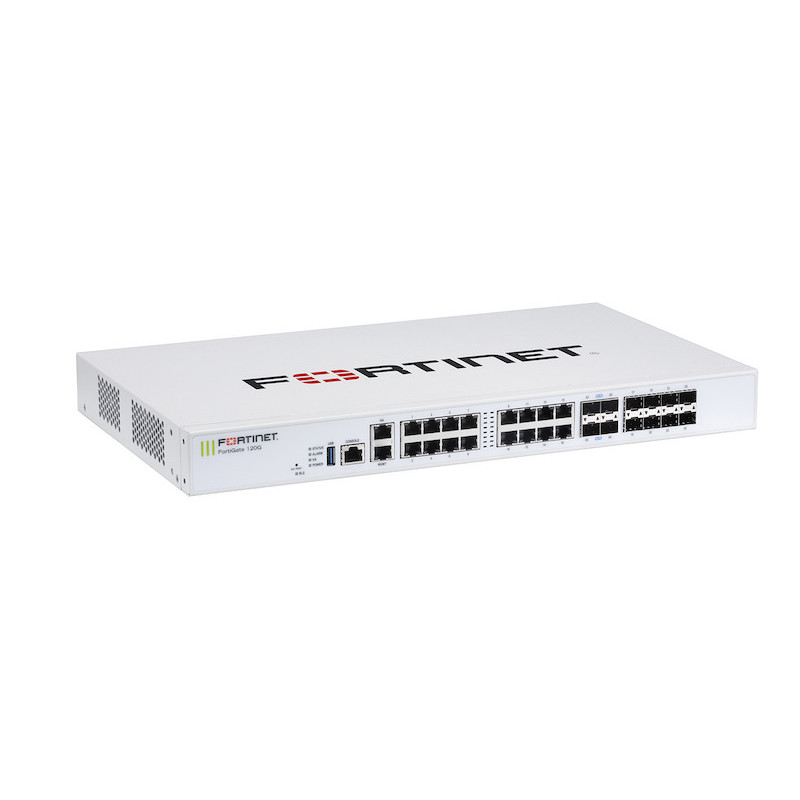

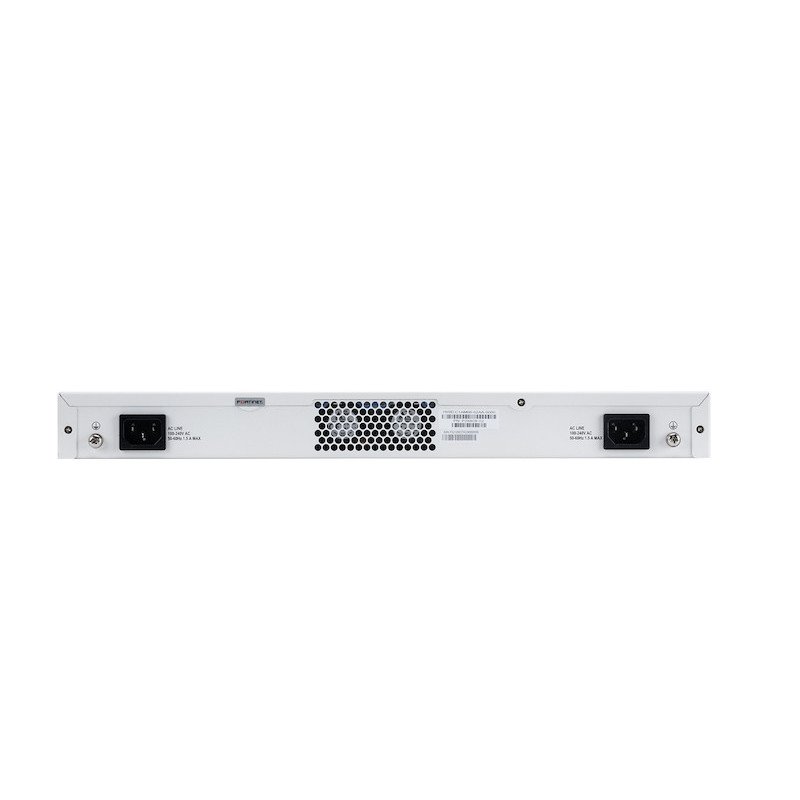

FortiGate 121G
- Hardware Specifications
- Hardware Accelerated GE RJ45 Ports 16
- Hardware Accelerated GE RJ45 Management / HA Ports 2
- Hardware Accelerated GE SFP Slots 8
- Hardware Accelerated 10 GE SFP+ FortiLink Slots (default) 4
- System Performance
- IPS Throughput 5.3 Gbps
- NGFW Throughput 3.1 Gbps
- Threat Protection Throughput 2.8 Gbps
รบกวนติดต่อสอบถามก่อนสั่งซื้อ
Price range: ฿200,000.00 through ฿480,000.00*ราคายังไม่รวม VAT ฿214,000.00*ราคารวม VAT แล้ว
คุณสมบัติ
| Hardware Specifications | ||
| Hardware Accelerated GE RJ45 Ports | 16 | |
| Hardware Accelerated GE RJ45 Management / HA Ports | 2 | |
| Hardware Accelerated GE SFP Slots | 8 | |
| Hardware Accelerated 10 GE SFP+ FortiLink Slots (default) | 4 | |
| USB Ports | 1 | |
| Console (RJ45) Port | 1 | |
| Internal Storage | 1 x 480 GB SSD | |
| Trusted Platform Module (TPM) | Yes | |
| Bluetooth Low Energy (BLE) | Yes | |
| Signed Firmware | Yes | |
| System Performance — Enterprise Traffic Mix | ||
| IPS Throughput | 5.3 Gbps | |
| NGFW Throughput | 3.1 Gbps | |
| Threat Protection Throughput | 2.8 Gbps | |
| System Performance and Capacity | ||
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 39 / 39 / 28 Gbps | |
| Firewall Latency (64 byte UDP packets) | 3.17 μs | |
| Firewall Throughput (Packets Per Second) | 42 Mpps | |
| Concurrent Sessions (TCP) | 3 M | |
| New Sessions/Second (TCP) | 140,000 | |
| Firewall Policies | 10,000 | |
| IPsec VPN Throughput (512 byte) | 35 Gbps | |
| Gateway-to-Gateway IPsec VPN Tunnels | 2000 | |
| Client-to-Gateway IPsec VPN Tunnels | 16,000 | |
| SSL-VPN Throughput | 1.5 Gbps | |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 500 | |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 3 Gbps | |
| SSL Inspection CPS (IPS, avg. HTTPS) | 2100 | |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 315,000 | |
| Application Control Throughput (HTTP 64K) | 6.7 Gbps | |
| CAPWAP Throughput (HTTP 64K) | 35 Gbps | |
| Virtual Domains (Default / Maximum) | 10 / 10 | |
| Maximum Number of FortiSwitches Supported | 32 | |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 128 / 64 | |
| Maximum Number of FortiTokens | 5000 | |
| High Availability Configurations | Active-Active, Active-Passive, Clustering | |
| Dimensions | ||
| Height x Width x Length (inches) | 1.73 x 17 x 10 | |
| Height x Width x Length (mm) | 44 x 432 x 254 | |
| Weight | 12.17 lbs (5.52 kg) | |
| Form Factor (supports EIA/non-EIA standards) | Rack Mount, 1RU | |
| Operating Environment and Certifications | ||
| Input Rating | 100-240VAC, 60-50Hz | |
| Power Supply Efficiency Rating | N/A | |
| Redundant Power Supplies | Yes (Default dual non-swappable AC PSU for 1+1 Redundancy) | |
| Maximum Current | 1.0A @100V, 0.5A @240V | |
| Power Consumption (Average / Maximum) | 43 W / 47 W | |
| Heat Dissipation | 159 BTU/h | |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) | |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) | |
| Humidity | 10% to 90% noncondensing | |
| Noise Level | 49 dBA | |
| Air Flow | Side to back | |
| Operating Altitude | Up to 10,000 ft (3048 m) | |
| Compliance | FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI | |
| Certifications | USGv6/IPv6 | |
| Bundle | FortiGate 121G Box Bundle with 1 Year (24*7), FortiGate 121G Box Bundle with 3 Year (24*7), FortiGate 121G Box Bundle with 5 Year (24*7) |
|---|
