Fortinet Firewall

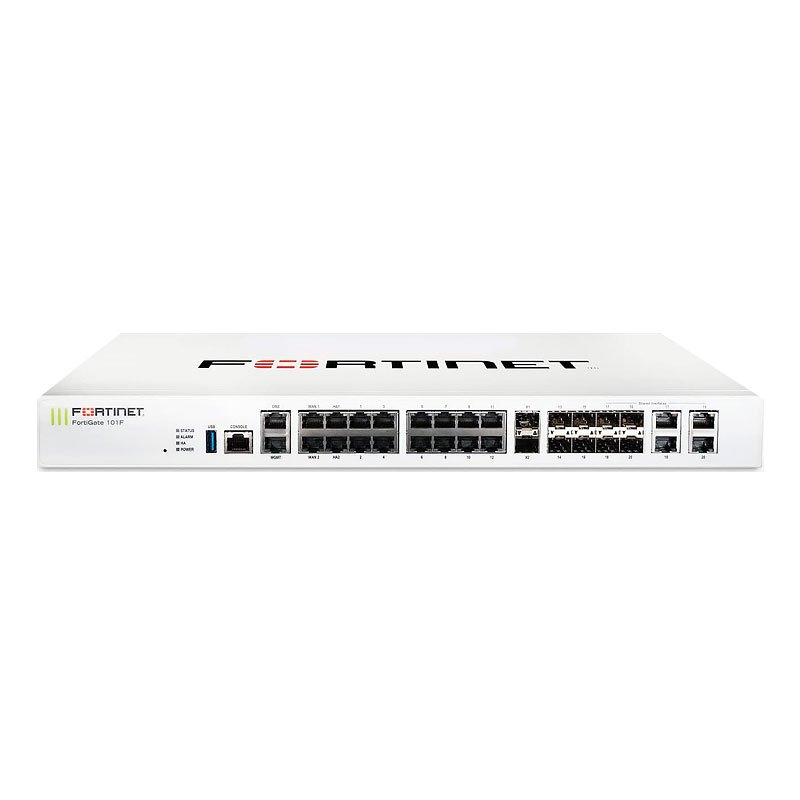

FortiGate 101F
- GE RJ45 Switch Ports 12
- GE RJ45 WAN Port 2
- GE SFP Slot 4
- Internal Storage : 1 x 480GB SSD
- Firewall Throughput : 20/18/10 Gbps
- NGFW Throughput : 1.6 Gbps
- Threat Protection Throughput : 1 Gbps
- SSL Inspection Throughput : 630 Mbps
รบกวนติดต่อสอบถามก่อนสั่งซื้อ
Price range: ฿200,000.00 through ฿450,000.00*ราคายังไม่รวม VAT ฿214,000.00*ราคารวม VAT แล้ว
คุณสมบัติ
| Hardware Specifications | ||
| GE RJ45 Ports | 12 | |
| GE RJ45 Management/HA/DMZ Ports | 1 / 2 / 1 | |
| GE SFP Slots | 4 | |
| 10 GE SFP+ Slots | 2 | |
| GE RJ45 WAN Ports | 2 | |
| GE RJ45 or SFP Shared Ports * | 4 | |
| USB Port | 1 | |
| Console Port | 1 | |
| Internal Storage | 1x 480 GB SSD | |
| Included Transceivers | 0 | |
| System Performance — Enterprise Traffic Mix | ||
| IPS Throughput2 | 2.6 Gbps | |
| NGFW Throughput2, 4 | 1.6 Gbps | |
| Threat Protection Throughput2, 5 | 1 Gbps | |
| System Performance | ||
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 20 / 18 / 10 Gbps | |
| Firewall Latency (64 byte UDP packets) | 5 μs | |
| Firewall Throughput (Packets Per Second) | 15 Mpps | |
| Concurrent Sessions (TCP) | 1.5 Million | |
| New Sessions/Second (TCP) | 56,000 | |
| Firewall Policies | 10,000 | |
| IPsec VPN Throughput (512 byte)1 | 11.5 Gbps | |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,500 | |
| Client-to-Gateway IPsec VPN Tunnels | 16,000 | |
| SSL-VPN Throughput | 750 Mbps | |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 500 | |
| SSL Inspection Throughput (IPS, avg. HTTPS) 3 | 1 Gbps | |
| SSL Inspection CPS (IPS, avg. HTTPS)3 | 1,800 | |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS)3 | 135,000 | |
| Application Control Throughput (HTTP 64K) 2 | 2.2 Gbps | |
| CAPWAP Throughput (1444 byte, UDP) | 15 Gbps | |
| Virtual Domains (Default / Maximum) | 10 / 10 | |
| Maximum Number of FortiSwitches Supported | 24 | |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 64 / 32 | |
| Maximum Number of FortiTokens | 5,000 | |
| Maximum Number of Registered FortiClients | 600 | |
| High Availability Configurations | Active / Active, Active / Passive, Clustering | |
| Dimensions | ||
| Height x Width x Length (inches) | 1.73 x 17 x 10 | |
| Height x Width x Length (mm) | 44 x 432 x 254 | |
| Form Factor | Rack Mount, 1 RU | |
| Weight | 7.56 lbs (3.43 kg) | |
| Environment | ||
| Power Required | 100–240V AC, 60–50 Hz | |
| Maximum Current | 100V / 1A, 240V / 0.5A | |
| Power Consumption (Average / Maximum) | 35.3 W / 39.1 W | |
| Heat Dissipation | 121.13 BTU/h | |
| Operating Temperature | 32–104°F (0–40°C) | |
| Storage Temperature | -31–158°F (-35–70°C) | |
| Operating Altitude | Up to 7,400 ft (2,250 m) | |
| Humidity | 10–90% non-condensing | |
| Noise Level | 40.4 dBA | |
| Compliance | FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI | |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6 | |
| Bundle | FortiGate 101F Box Bundle with 1 Year (24*7), FortiGate 101F Box Bundle with 3 Year (24*7), FortiGate 101F Box Bundle with 5 Year (24*7) |
|---|
