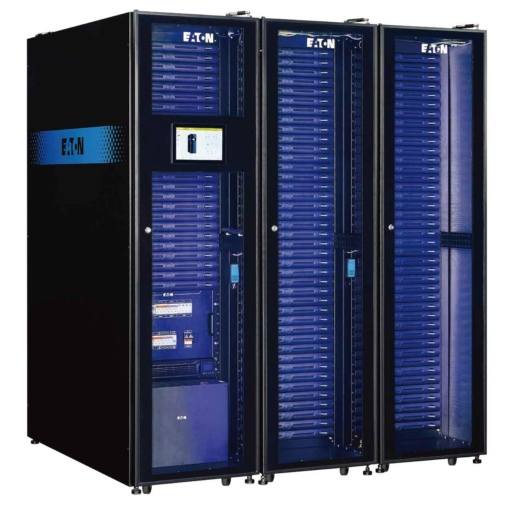

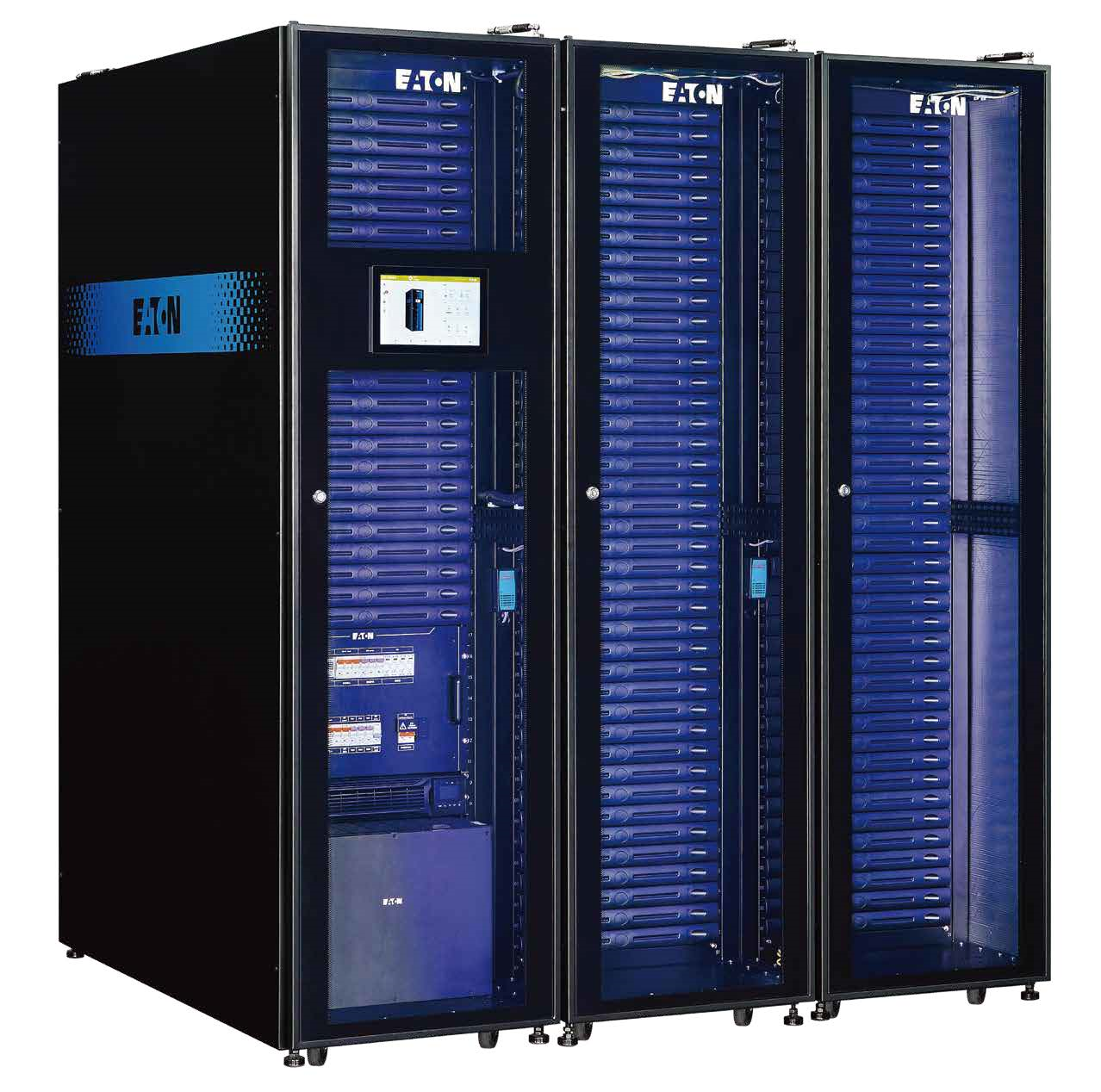

Eaton MDC EM3MS10K8S

Eaton MDC EM3MS10K8S

Rack SR rack, 800x1200x42U, sealed door, for 3.5kW integrated cooling
MR IT rack, 600x1400x42U, sealed door
UPS 9PX 11kVA UPS
PDM PDM-10K(MR), input 380V 63A, 9 outputs, with power meter
PDU Basic PDU 32A input 20xC13+4xC19, 2.5m power cord
Basic PDU 32A input 20xC13+4xC19, 5m power cord
AC 8.1kW Split cooling indoor unit with condensate pump
8.1kW Split cooling outdoor unit
Additional Components (included) Monitor Module with 10-inch LCD
Temperature/Humidity sensor, RS485
Smoke Sensor
Water leakage sensor (Rope type for standard SR)

฿1,020,000.00*ราคายังไม่รวม VAT
฿1,091,400.00*ราคารวม VAT แล้ว

ขอใบเสนอราคา
System Size (W*D*H)-mm (1800~4200)*1400*2000
Rack quantity 3~7
Power input 380/400/415VAC, 50/60Hz, 3Ph+N+PE
Enclosure type Enclosed cold and hot aisle
Glass front door + solid metal rear door
Color RAL9005-Black
System IP rating IP50
UPS rating 10kVA~40kVA
Recommended IT load 7~21kW
Cooling Split DX 8.1kW
PDU outlets Basic 20*C13 + 4*C19 (1 per main rack / 2 per IT rack)
User interface 10.1-inch touchscreen display
Connectivity SNMP/HTTP
Remote monitoring PC end, mobile APP
Sensor included 1~2x Smoke / 1x Water Leakage / 1x Temperature/Humidity (per rack)
Options Fire suppression kit/air chimney/intelligent PDU/ATS/EBM/BMS…etc

SECURE RACK

  • Cold + Hot Aisle (contained)
  • IP50 protection, earthquake rated
  • Glass front door + metal rear door
  • Intelligent electrical door lock and release
  • UP to 7 Racks

PREFAB POWER DISTRIBUTION

  • Infrastructure devices in the cabinet are factory pre-installed and pre-wired
  • Intelligent PDM to track the load and PUE

POWER PROTECTION

  • High efficiency UPS (10~20KVA) provides best in class protection for all your critical applications

INTELLIGENT MANAGEMENT

  • 10.1″ touchscreen LCD display provides information and control at your fngertips
  • Remotely manage via internet Web or phone APP
  • SNMP connectivity
  • Cybersecurity passed
  • Built-in sensors (Temperature/ Humidity, Smoke, Water Leakage)
  • Status lighting system – 3 colors

PRECISION COOLING

  • CE certifed in-rack airconditioning
  • 8.1kW split system
  • VSD compressor + EC fan
  • R410A environment friendly refrigerant
  • Compatible for both gravity drain and condensate pump
รหัสสินค้า: ETN-EM3MS10K8S หมวดหมู่:
