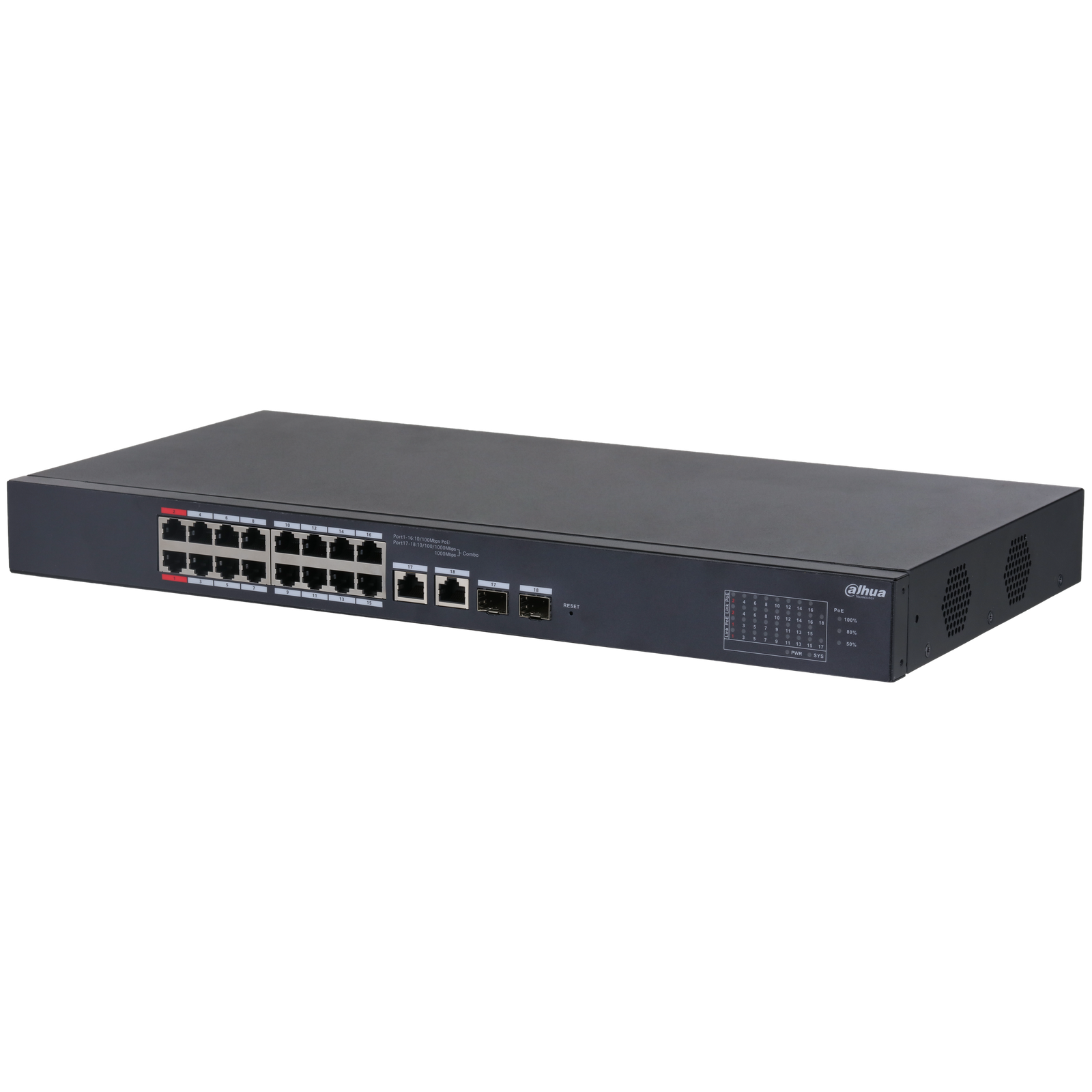

DAHUA Cloud Managed Desktop Switch 16PoE 2Uplink (DH-CS4218-16ET-240)

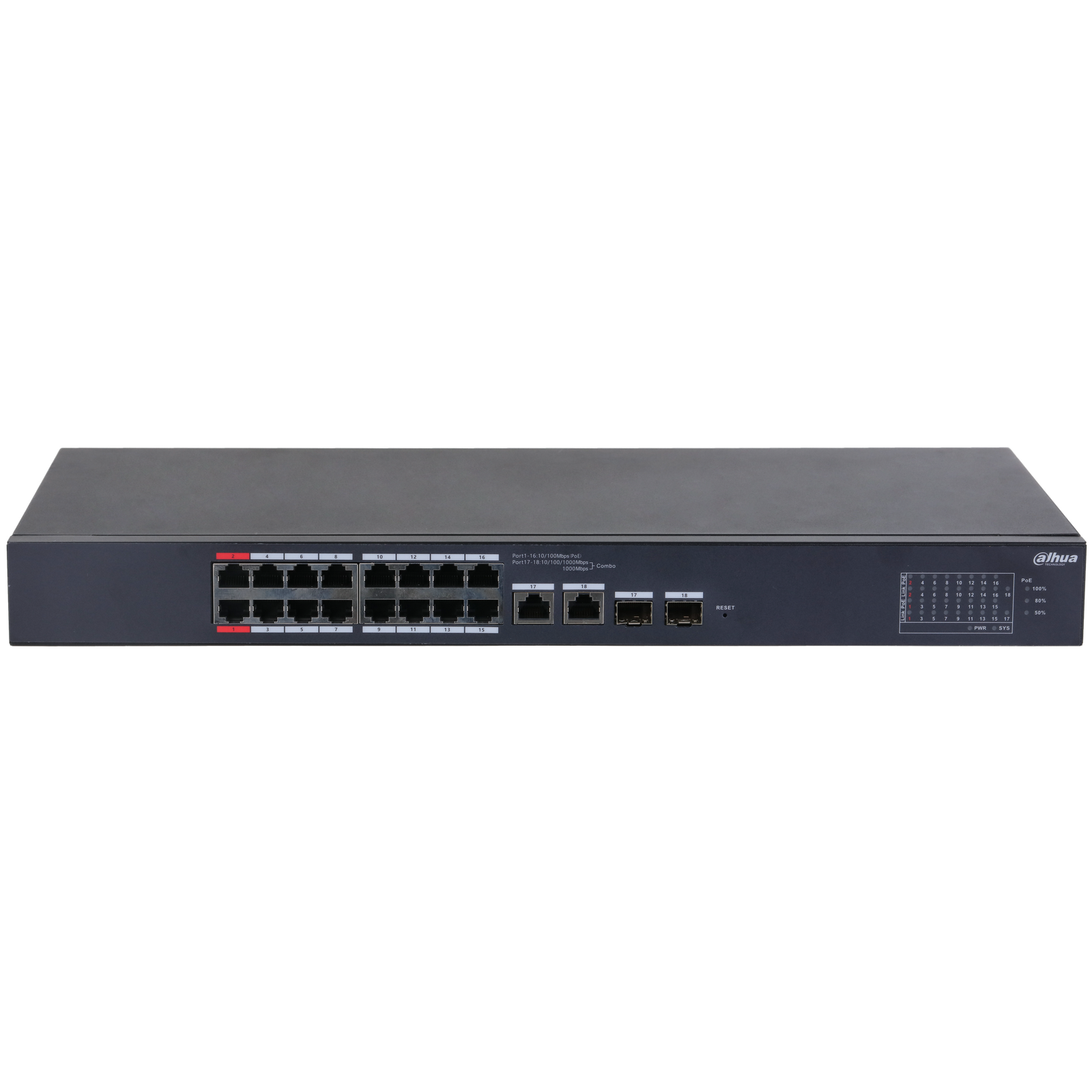

DAHUA Cloud Managed Desktop Switch 16PoE 2Uplink (DH-CS4218-16ET-240) - Image 2

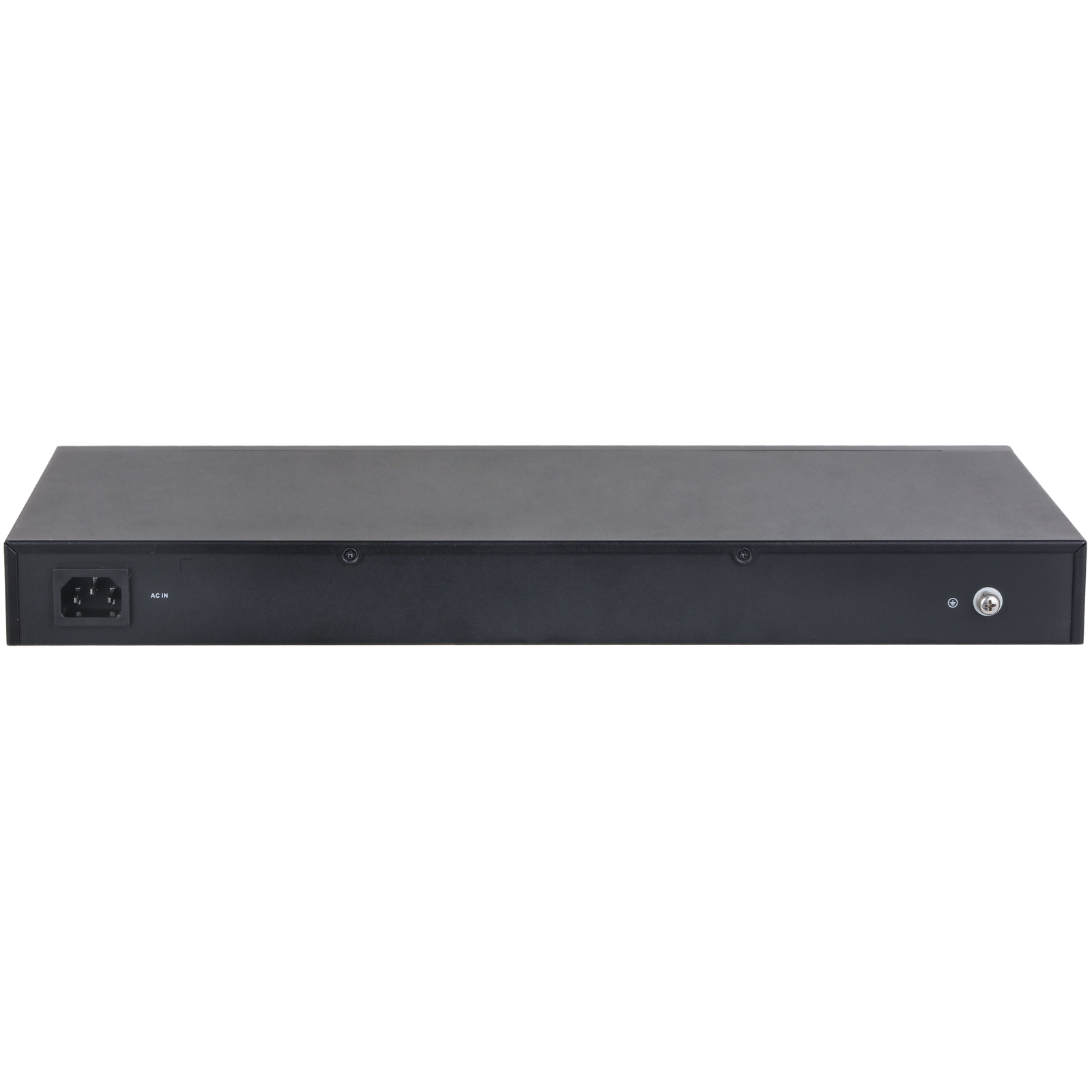

DAHUA Cloud Managed Desktop Switch 16PoE 2Uplink (DH-CS4218-16ET-240) - Image 3

DAHUA Cloud Managed Desktop Switch 16PoE 2Uplink (DH-CS4218-16ET-240)

DH-CS4218-16ET-240

18-Port Cloud Managed Desktop Switch with 16-Port PoE

  • Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab,IEEE802.3z standards.
  • Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt power supply standards.
  • Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE.
  • A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof.

฿8,490.00*ราคายังไม่รวม VAT
฿9,084.30*ราคารวม VAT แล้ว

ขอใบเสนอราคา

คุณสมบัติ

Hardware
Included Power Adapter Yes
PoE Yes
Ethernet Port 16
Ethernet Port Speed 10/100 Mbps
Optical Port Speed 1000 Mbps
Ethernet Port Uplink Speed 10/100/1000 Mbps
Optical Port Uplink Speed 1 Gbps
Description of Function Slots Port 1-16: 16 × RJ-45 10/100 Mbps (PoE); Port 17-18: 2 × RJ-45 10/100/1000 Mbps (combo); Port 17-18: 2 × SFP 1000 Mbps (combo)
Reset Button 1
Power Supply Built-in power supply: 100-240 VDC, 47-63 Hz, max 4 A
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 5%–95% (RH), non-condensing
Storage Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Storage Humidity 5%–95% (RH), non-condensing
Power Consumption Idling: ≤6 W ; Full load: 265 W
Performance
Layer Layer 2
Management Type Yes
Smart Managed Switch Yes
MTBF 87.10 years
Switching Capacity 7.2 Gbps
Packet Forwarding Rate 5.36 Mpps
Packet Buffer Size 4 Mbit
Jumbo Frame 15K Byte
MAC Table Size 8K
VLAN Number 32
Communication Standard IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab; IEEE802.3z
Feature
PoE Protocol IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
PoE Power Port 1-2 ≤ 90 W, Port 3-16 ≤ 30 W, total ≤ 240 W
PoE Power Consumption Management Yes
PoE Pin Assignment 1,2,4,5（V+）,3,6,7,8（V-）
Long Distance PoE Transmission Yes
VLAN Function Port-based VLAN
IEEE 802.3x Flow Control Yes
DHCP Function DHCP Client
Equipment Management Web management; App management
General
Statics Protection Air discharge: 8 kV; Contact discharge: 6 kV
Lighting Protection Common mode: 4 kV; Differential mode: 2 kV
Net Weight 2.35 kg (5.17 lb)
Gross Weight 3.0 kg (6.6 lb)
Product Dimensions 440 mm × 220 mm × 44 mm (17.32″ × 8.66″ × 1.73″) (L × W × H)
Packaging Dimensions 540 mm × 342 mm × 90 mm (21.26″ × 13.46″ × 3.54″) (L × W × H)
Casing Material Sheet metal
Installation Desktop mount; rack mount
รหัสสินค้า: DH-CS4218-16ET-240 หมวดหมู่:
