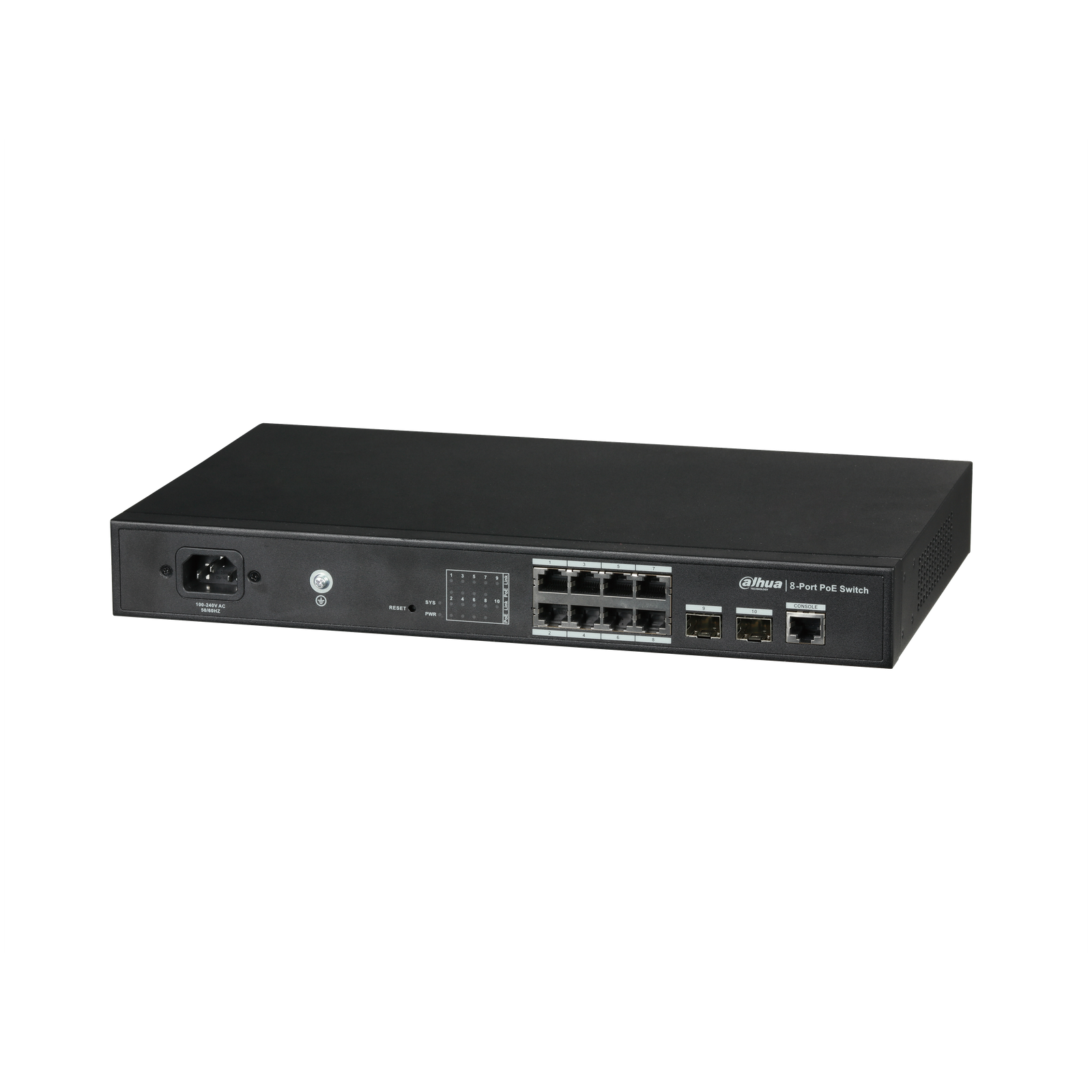

DAHUA Managed PoE Switch 8PoE 2Uplink (DH-PFS4210-8GT-150)

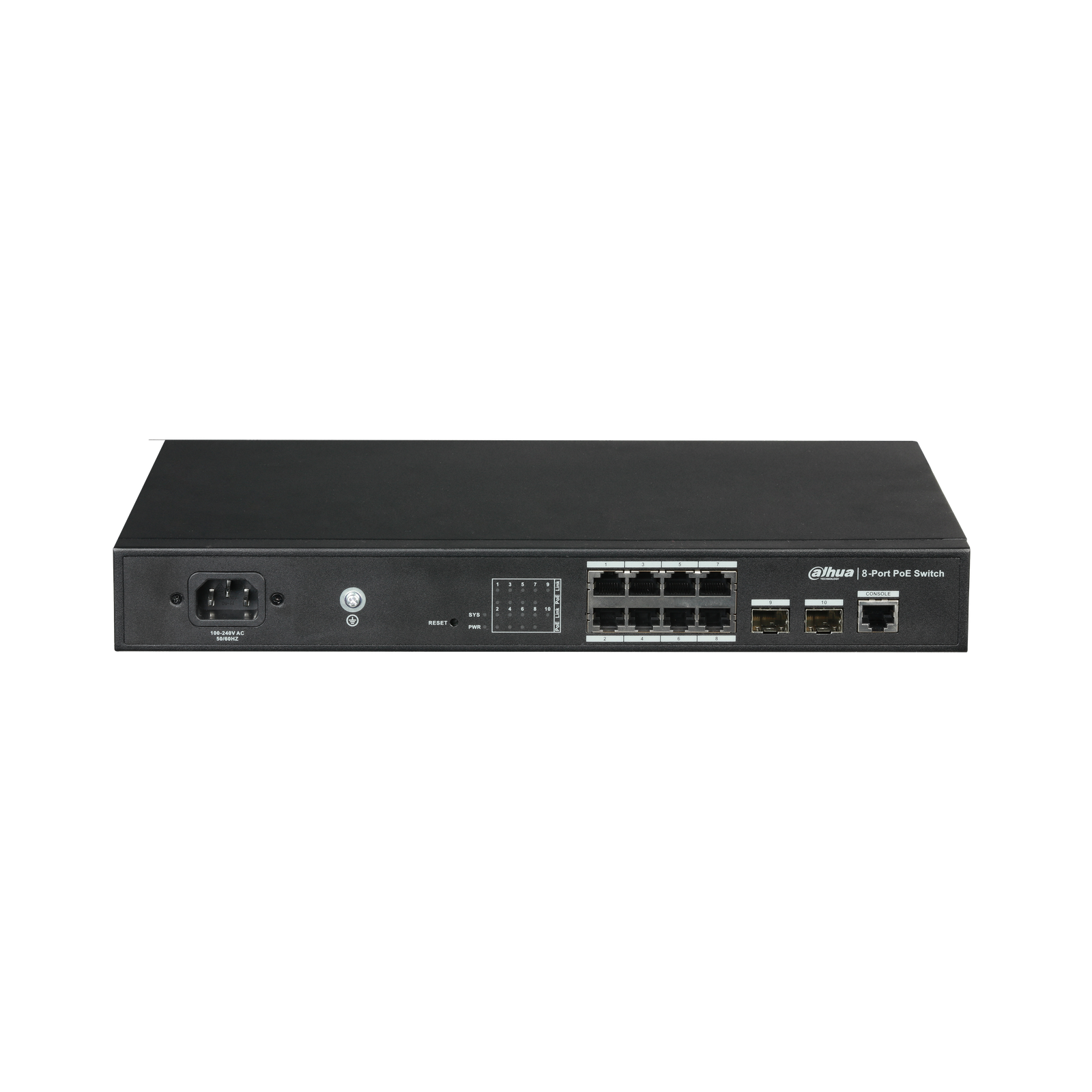

DAHUA Managed PoE Switch 8PoE 2Uplink (DH-PFS4210-8GT-150) - Image 2

DAHUA Managed PoE Switch 8PoE 2Uplink (DH-PFS4210-8GT-150)

DH-PFS4210-8GT-150

8-Port PoE Gigabit Managed Switch

  • Layer 2 network management PoE switch
  • Support IEEE802.3af, IEEE802.3at standard
  • Network Redundancy: STP/RSTP/MSTP
  • Support IPv4/IPv6, and DHCP
  • Network management based on SNMP
  • Configuration: Web, Telnet, CLI Command
  • QoS (IEEE802.1p/1Q), CoS/ToS to Increase Determinism
  • Enhanced Network Security with IEEE802.1X, SNMP v1/v2c/v3, HTTPS, and SSH/SSL
  • Large data cache(4M), real-time transmission
  • MAC auto study and aging, MAC address list capacity is 8K
  • EMC high protection design

฿6,390.00*ราคายังไม่รวม VAT
฿6,837.30*ราคารวม VAT แล้ว

ขอใบเสนอราคา

คุณสมบัติ

Technical Specification
Model DH-PFS4210-8GT-150
Ethernet Port 8*10/100/1000 Base-T (PoE power supply)

2*100/1000 Base-X
RS232 Serial Console 1*RS232 in RJ45 connector with console cable, 115.2Kbps, 8,N,1
PoE Power Consumption Each power ≤30W, Total≤150W
PoE Protocol IEEE802.3af, IEEE802.3at
Switching Capacity 20Gbps
Packet Forwarding Rate 14.88Mpps
Packet Buffer Memory 4Mb
Application Humidity 5%~95%
Power AC100-240V, 50/60Hz
Lightning Protection Common Mode 2KV

Differential Mode 1KV
Working Temperature 0°C~45°C
Dimension(W×D×H) 340mm x200mm x44mm
Accessories
Model
PFT3950 1.25G 850nm,500m,LC, Multi-mode
PFT3960 1.25G 1310/1550nm,20km,LC, Single-mode
PFT3970 1.25G 1550/1310nm,20km,LC, Single-mode
Service Characteristics
System Username / password: admin/admin
IP Address :192.168.1.110/24
PoE Budget Total≤150W
MAC Table 8K
NTP Support
DHCP Support DHCP client/server
Support DHCP snooping
VLAN 802.1Q Standard VLAN
Port Aggregation Manual aggregation/LACP
Mirroring Many-to-one port mirroring
Flow Control Half-duplex based on back pressure type control;

Full duplex based on PAUSE frame
Multicast IGMP Snooping v1/v2/v3
Security Features Users management, SSH, HTTPS, SNMP v1/v2/v3, ROMN, ACL, IP source guard, ARP inspection, 802.1x, loop protection
Spanning tree Support STP/RSTP/MSTP
LLDP Support
MAC Table Support MAC address table configuration
QoS Support QoS base on CoS/DPL/PCP/DEI

Each port support 8 output queue

Support port shaping

Support port tag remarking

Support QoS base on DSCP
System Maintenance Support the configuration file upload/download

Support the updated packet upload

System log
Network Management WEB(http protocol), serial, SNMP
