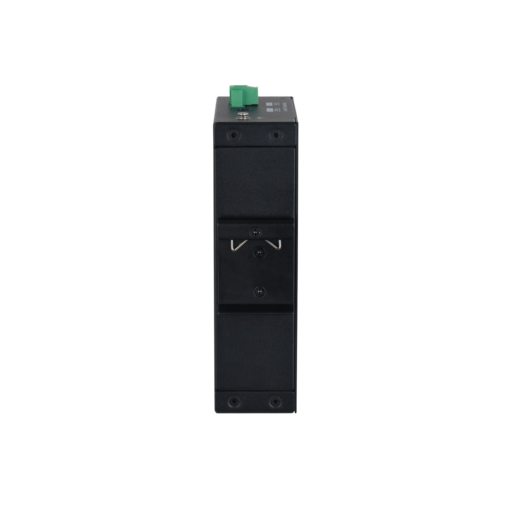

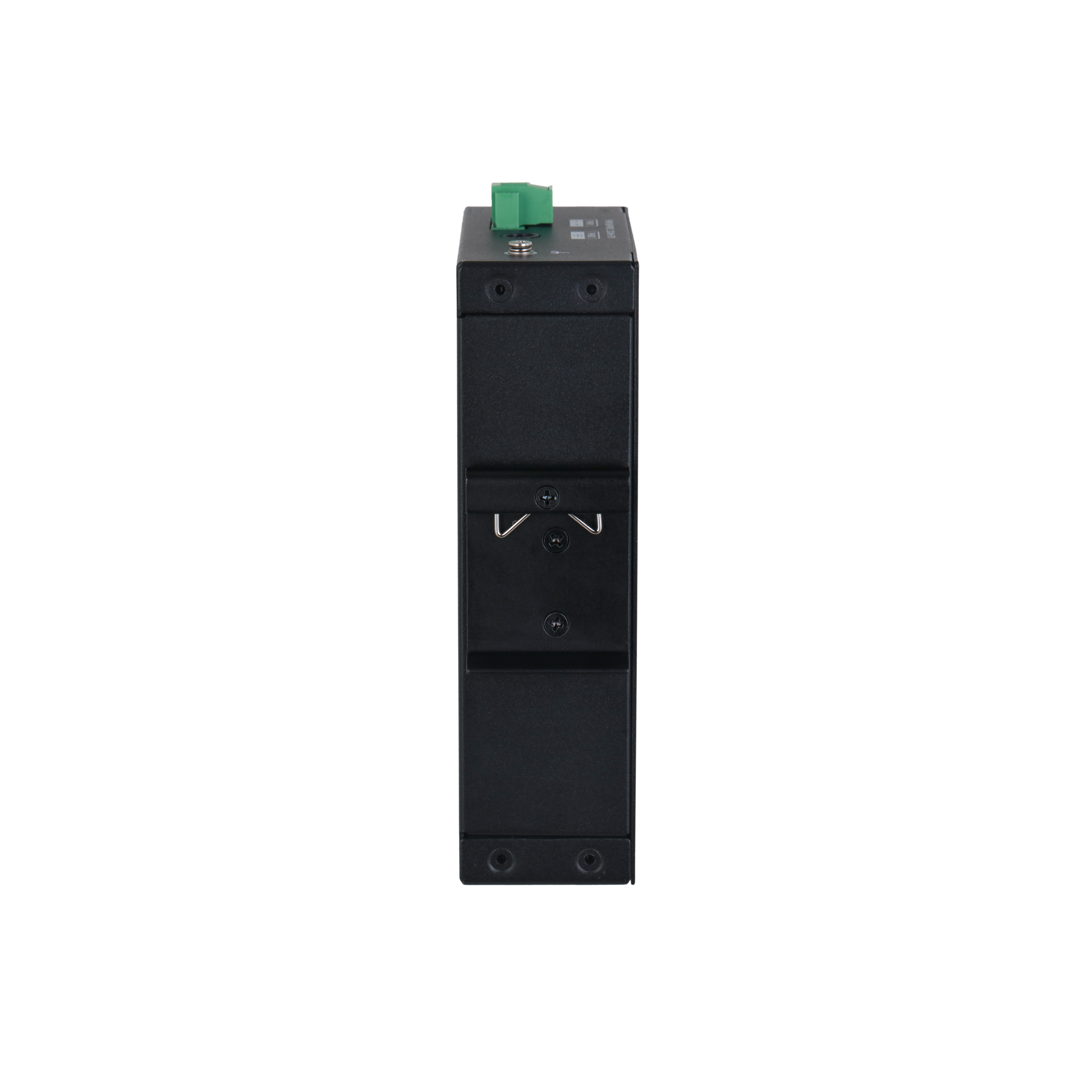

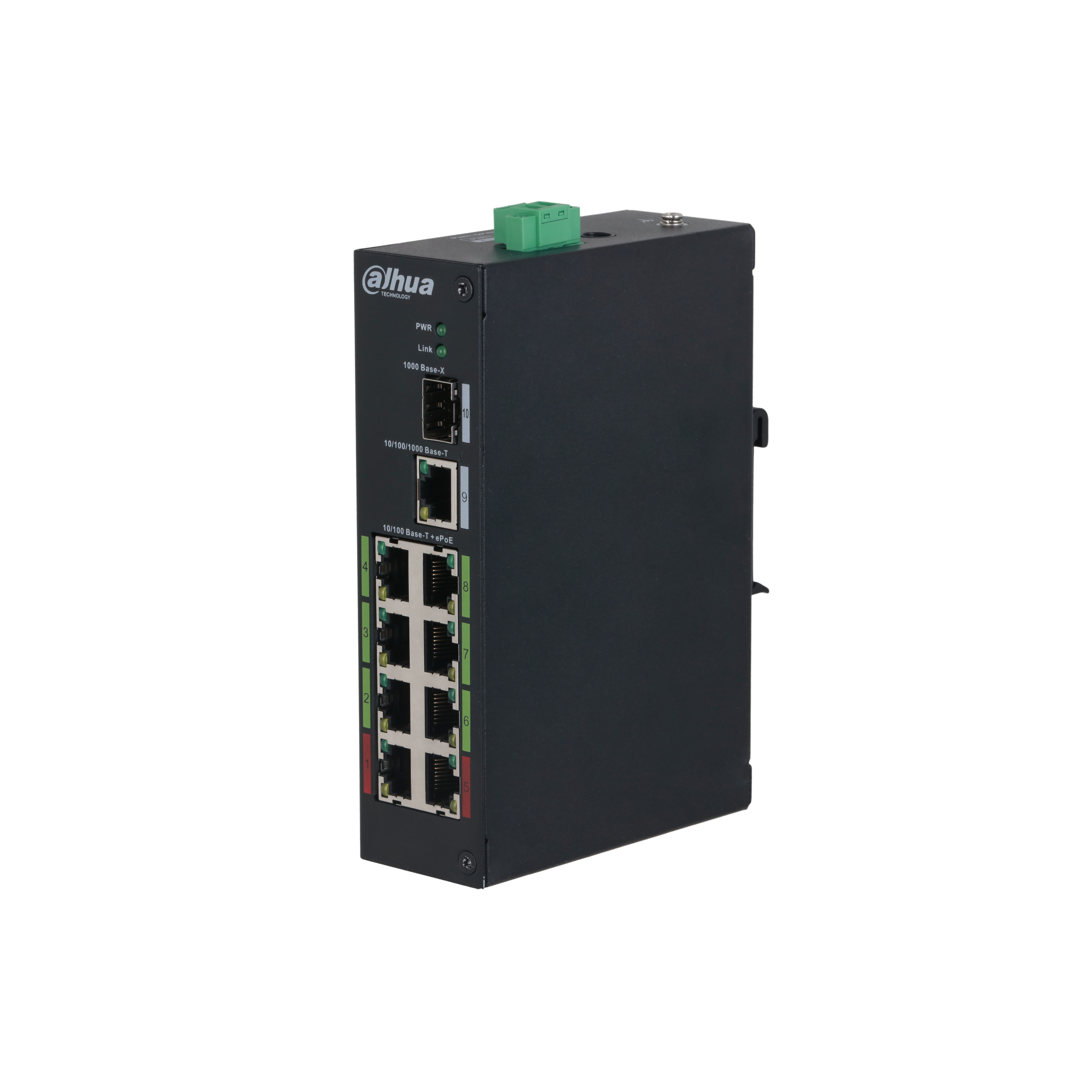

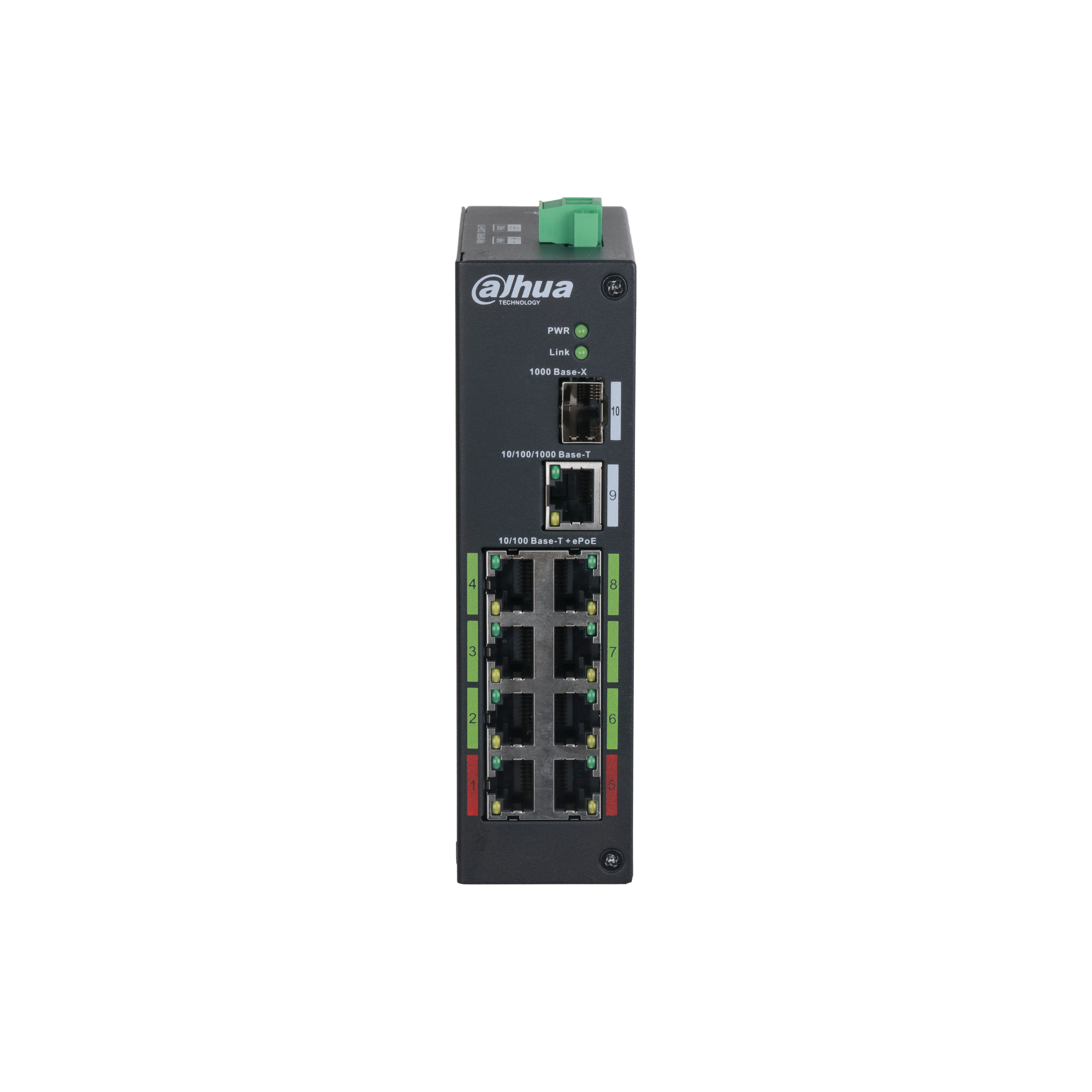

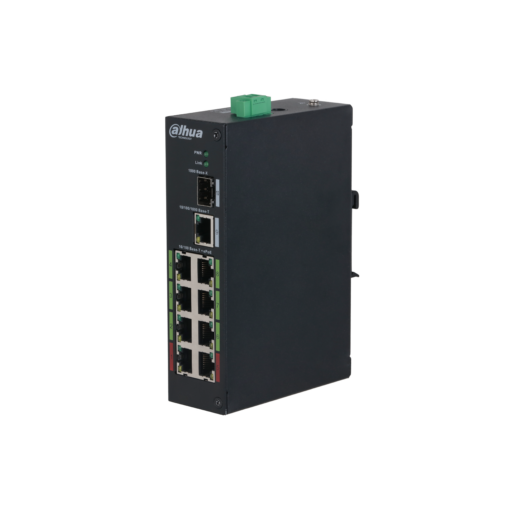

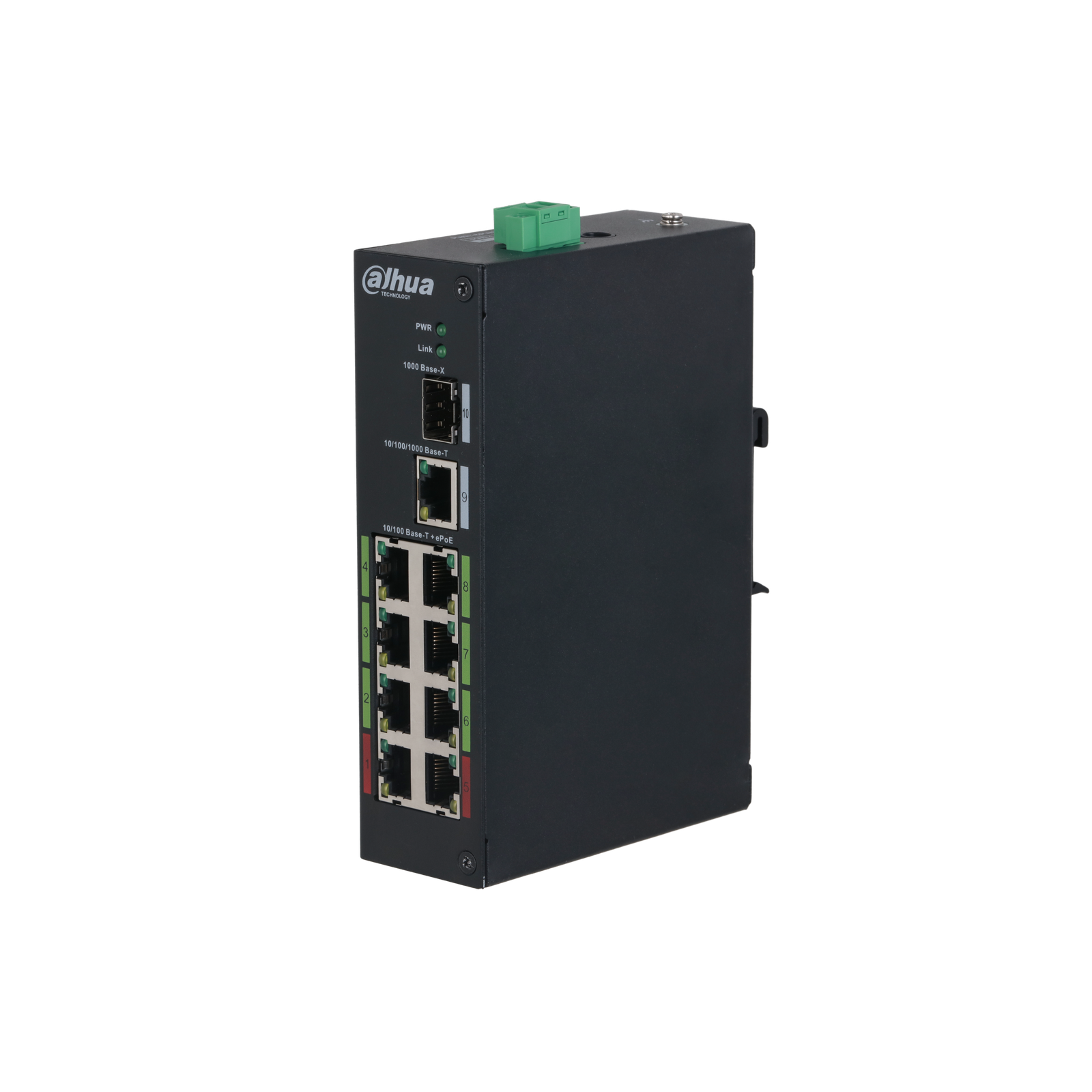

DAHUA 8ePoE,Hi-PoE 1Uplink (DH-LR2110-8ET-120)
DAHUA 8ePoE,Hi-PoE 1Uplink (DH-LR2110-8ET-120) - Image 2
DAHUA 8ePoE,Hi-PoE 1Uplink (DH-LR2110-8ET-120) - Image 3

DAHUA 8ePoE,Hi-PoE 1Uplink (DH-LR2110-8ET-120)

DH-LR2110-8ET-120

10-Port Unmanaged Switch with 8-Port ePoE

  • Supports long distance PoE transmission up to 800m with ePoE technology of Dahua.
  • Layer-two ePoE switch.
  • MAC auto study and aging, MAC address list capacity is 8K.
  • Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards.
  • Supports IEEE802.3af, IEEE802.3at, IEEE802.3bt power supply standard.
  • Industrial wide temperature design.
  • Port indicator light is to display the status of current transmission mode for the port, which includes IEEE, E100 and E10.

฿6,590.00*ราคายังไม่รวม VAT
฿7,051.30*ราคารวม VAT แล้ว

ขอใบเสนอราคา

คุณสมบัติ

Hardware
Included Power Adapter Yes
PoE Yes
Ethernet Port 8
Ethernet Port Speed 10/100 Mbps
Ethernet Port Uplink Speed 10/100/1000 Mbps
Optical Port Uplink Speed 1 Gbps
Description of Function Slots Port 1-8: 8 × RJ-45 10/100 Mbps
Port 9: 1 × RJ-45 10/100/1000 Mbps
Port 10: 1 × SFP 1000 Mbps
Power Supply External power supply: 54 VDC, 2.22 A
Operating Temperature –30 °C to +65 °C (+22 °F to +149 °F)
Operating Humidity 10%–90% (RH), non-condensing
Power Consumption Idling: 3.2 W
Full load: 120 W
Performance
Layer Layer 2
Management Type No
Smart Managed Switch No
Switching Capacity 8.8 Gbps
Packet Forwarding Rate 5.36 Mpps
Packet Buffer Size 2.75 Mbit
Jumbo Frame 9216 Byte
MAC Table Size 8K Byte
Communication Standard IEEE802.3, IEEE802.3u, IEEE802.3ab/z,IEEE802.3X
Feature
PoE Protocol IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
PoE Power Port 1,5 ≤90 W
Port 2,3,4,6,7,8 ≤30 W
Total ≤120 W
PoE Pin Assignment 1,2,4,5 (V+),3,6,7,8 (V-)
ePoE Yes
Long Distance PoE Transmission Yes
General
Statics Protection Air discharge: 8 kV
Contact discharge: 6 kV
Lighting Protection Common mode: 4 kV
Differential mode: 2 kV
Net Weight 0.6 kg (1.32 lb)
Gross Weight 1.9 kg (4.18 lb)
Product Dimensions 150 mm × 100 mm × 42 mm
(5.91″ × 3.94″ × 1.65″) (L × W × H)
Packaging Dimensions 265 mm × 238 mm × 76 mm
(10.43″ × 9.37″ × 1.65″) (L × W × H)
Casing Material Iron
Installation Rack mount; DIN guide rail mount
Certifications CE; FCC
Transmission Performance:
Cable Length (m) Communication Bandwidth (Mbps) PoE Max Load

Capacity

(W)

 Hi-PoE Max Load Capacity (W) IEEE802.3bt Max Load Capacity (W) Network Operating Mode
100 100 25.5 53 71.3 IEEE/E100
200 100 25.5 47 52 E100
300 100 25.5 32 40 E100
400 10 23 26 30 E10
500 10 20 20 25 E10
800 10 13 13 13 E10
ePoE switch supply voltage 54 V.

CAT6, max. DC resistance < 10 Ω/100 m.
Cable Length (m) Communication Bandwidth (Mbps) PoE Max. Load Capacity (W) Hi-PoE Max. Load Capacity (W) Network Operating Mode
100 100 25.5 52 IEEE/E100
200 100 25.5 48 E100
300 100 22 28 E100
400 100 15 20 E100
500 10 12 12 E10
800 10 8 8 E10
1000 10 6 6 E10
ePoE switch supply voltage 54 V.

RG-59, max. DC resistance < 5 Ω/100 m.

IEEE802.3bt standard is not applicable to RG59 cable solution.
LED Indicator
Working Mode LED Indicator
IEEE mode Normally on
E100 On for 3 seconds, off for 1 second
E10 On for 1 second, off for 1 second
