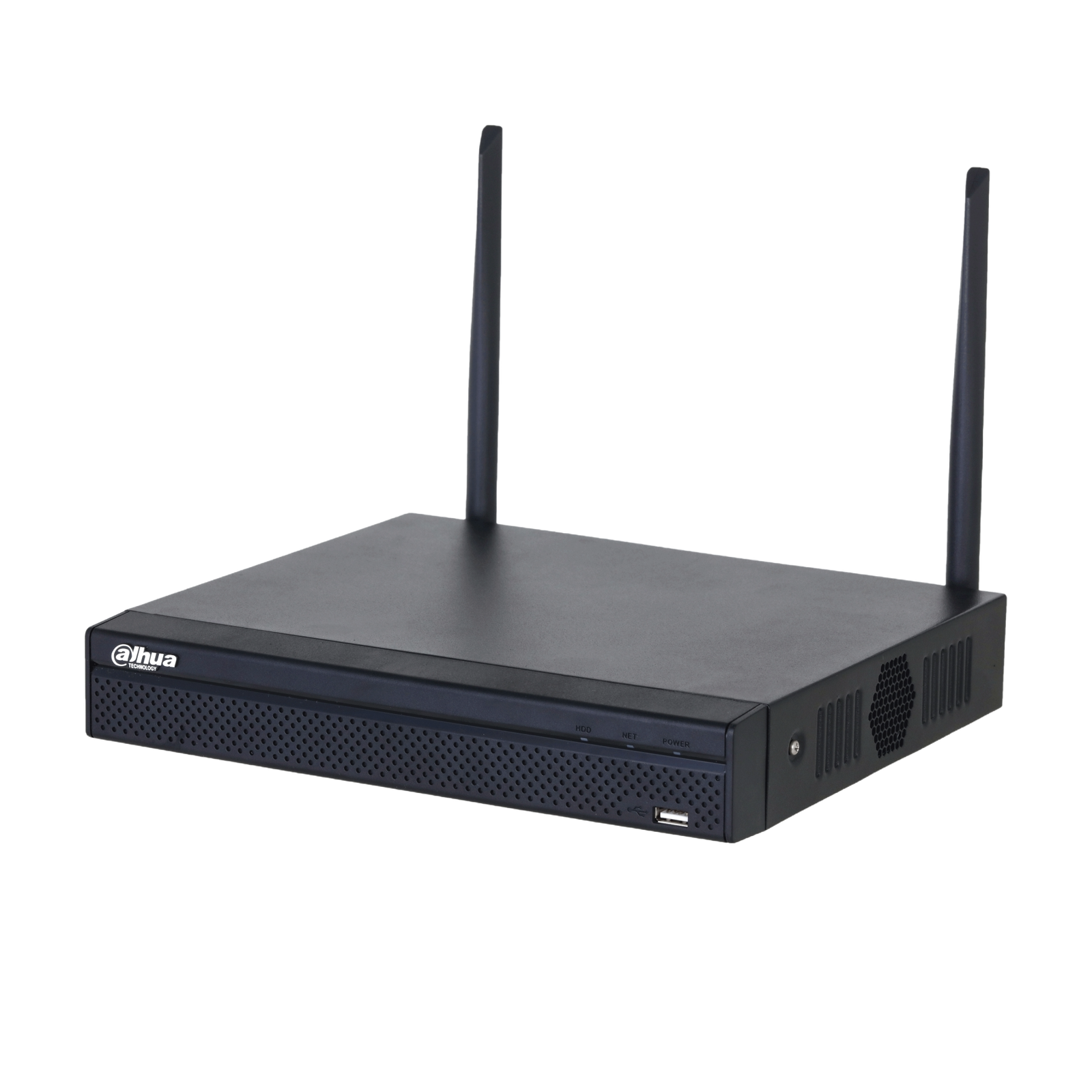

DAHUA 8 Channel Compact 1U 1HDD Network Video Recorder

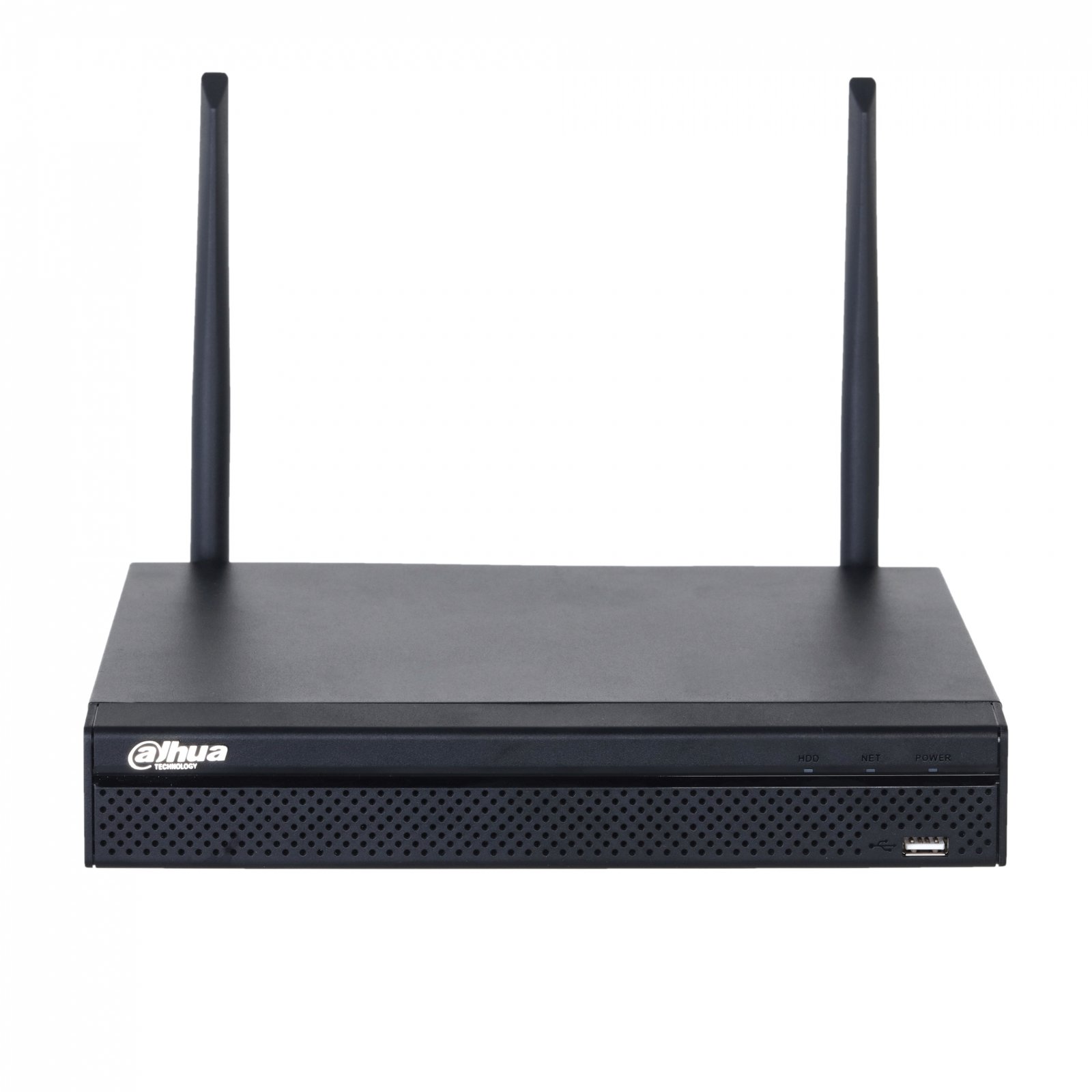

DAHUA 8 Channel Compact 1U 1HDD Network Video Recorder - Image 2

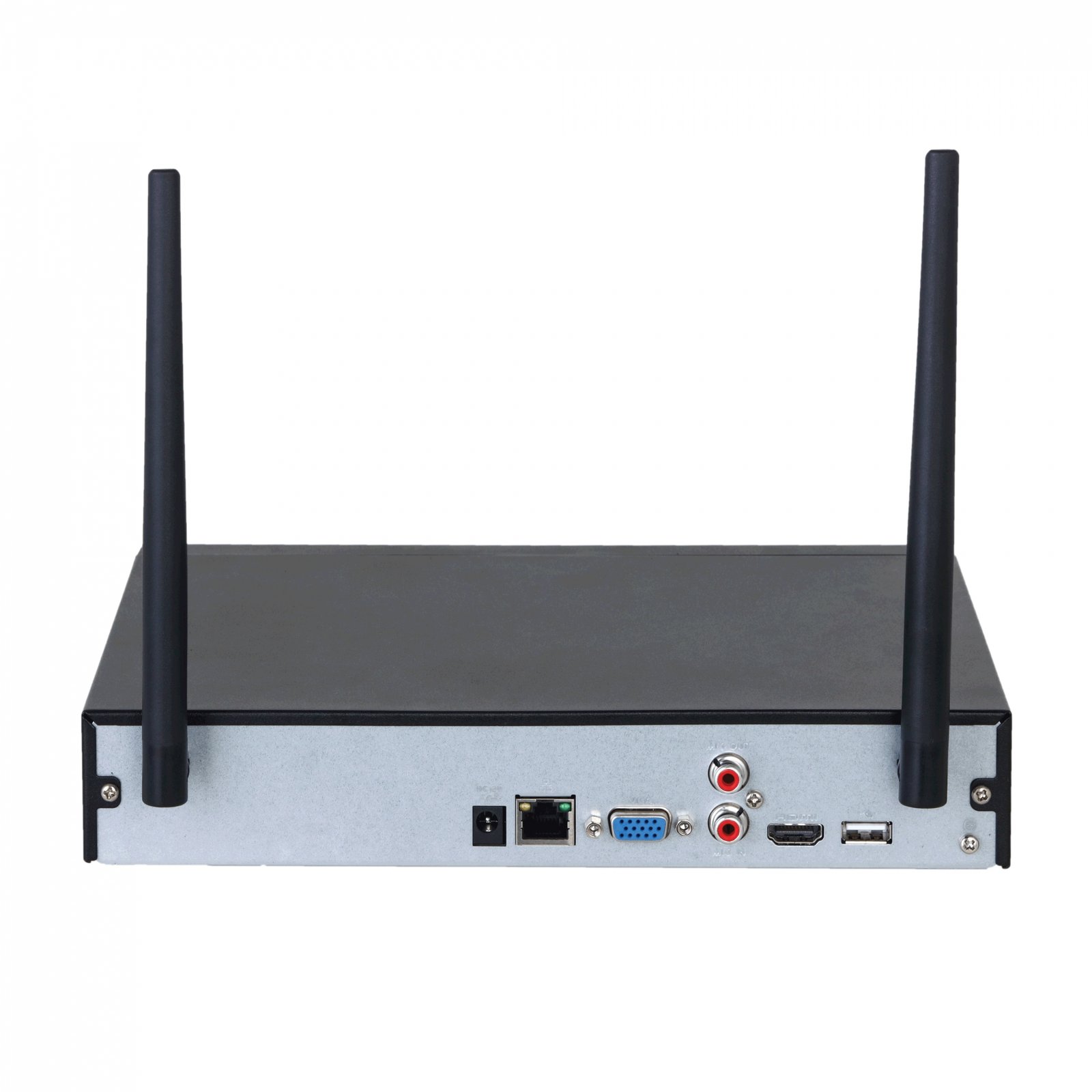

DAHUA 8 Channel Compact 1U 1HDD Network Video Recorder - Image 3

DAHUA 8 Channel Compact 1U 1HDD Network Video Recorder

NVR1108HS-W-S2

8 Channel Compact 1U 1HDD Network Video Recorder

  • New 4.0 user interface.· One-click wireless pairing to IPCs.
  • Automatic pairing to IPC in 120 s after boot-up under undisturbed conditions.
  • Automatic cascading of IPCs for long-distance surveillance.
  • 4–ch@1080P (25FPS), self-adaptive decoding capability.
  • Supports mainstream cameras of ONVIF protocol.
  • Smart H.265/Smart H.264

฿1,500.00*ราคายังไม่รวม VAT
฿1,605.00*ราคารวม VAT แล้ว

ขอใบเสนอราคา

คุณสมบัติ

SYSTEM
Main ProcessorIndustrial-grade embedded processor
Operating SystemEmbedded Linux
Operating InterfaceWeb; Local GUI
Audio and Video
Access Channel8 channels
Network BandwidthWired mode: 40 Mbps incoming, 40 Mbps recording, and 20 Mbps outgoing
Wireless mode: 16 Mbps incoming, 16 Mbps recording
Resolution6 MP; 5 MP; 4 MP; 3 MP; 2 MP; 720p; D1
Decoding Capability1-channel 6 MP@25 fps; 1-channel 5 MP@25 fps; 2-channel 4 MP@25 fps; 2-channel 3 MP@25 fps; 4-channel 1080p@25 fps
Video Output1 × VGA, 1 × HDMI (simultaneous)
Multi-screen Display1, 4, 8, 9 views
Third-party Camera AccessOnvif
COMPRESSION STANDARD
Video CompressionSmart H.265; H.265; Smart H.264; H.264; MJPEG
Audio CompressionPCM; G711A; G711U; G726
NETWORK
Network ProtocolHTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; Alarm Server; P2P
Mobile Phone AccessAndroid; iOS
InteroperabilityONVIF (profile T/S/G); CGI; SDK
BrowsersChrome; IE 9 or later; Firefox
WI-FI
Wi-Fi Standard802.11b/g/n
Frequency Range2400–2483.5 MHz
Transmitter Power (EIRP)CE EIRP: ≤20dBm@2400-2483.5MHz
FCC output power: ≤30dBm@2400-2483.5MHz
RECORDING
Multi-channel PlaybackUp to 8 channels
Record ModeManual record; alarm record; motion detection record; schedule record
Storage MethodLocal HDD and network
Backup MethodUSB device
Playback ModeInstant playback, general playback, event playback, tag playback, smart playback (motion detection)
ALARM
General AlarmMotion detection; privacy masking; video loss; PIR alarm
Anomaly AlarmCamera offline; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security exception
Alarm LinkageRecording; snapshot; buzzer; log; preset; tour
PORTS
Audio Input1
Audio Output1
HDD Interface1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature
USB Ports1 front USB 2.0 port, 1 rear USB 2.0 port
HDMI1
VGA1
Network Port1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port
GENERAL
Power Supply12 VDC, 1.5 A
Power ConsumptionTotal output of NVR is ≤ 10 W (without HDD)
Net Weight0.824 kg (1.82 lb)
Gross Weight1.56 kg (3.44 lb)
Product Dimensions260.3 mm × 247.3 mm × 44.7 mm (10.25″ × 9.74″ × 1.76″) (W × L × H)
Packaging Dimensions372 mm × 117 mm × 308 mm (14.65″ × 4.61″ × 12.13″) (W × L × H)
Operating Temperature-10 °C to +45 °C (+14 °F to +113 °F)
Operating Humidity10%–93% (RH)
InstallationRack or desktop
CertificationsCE:EN62368-1; EN55032; EN55024; EN55035; EN610003-2; EN61000-3-3; EN50130-4
FCC:Part 15 Subpart B CERED:EN301489-1; EN301489-17; EN300328; EN300328; EN62311
FCC ID:47 CFR PART 15 SUBPART C
รหัสสินค้า: DHI-NVR1108HS-W-S2 หมวดหมู่:
