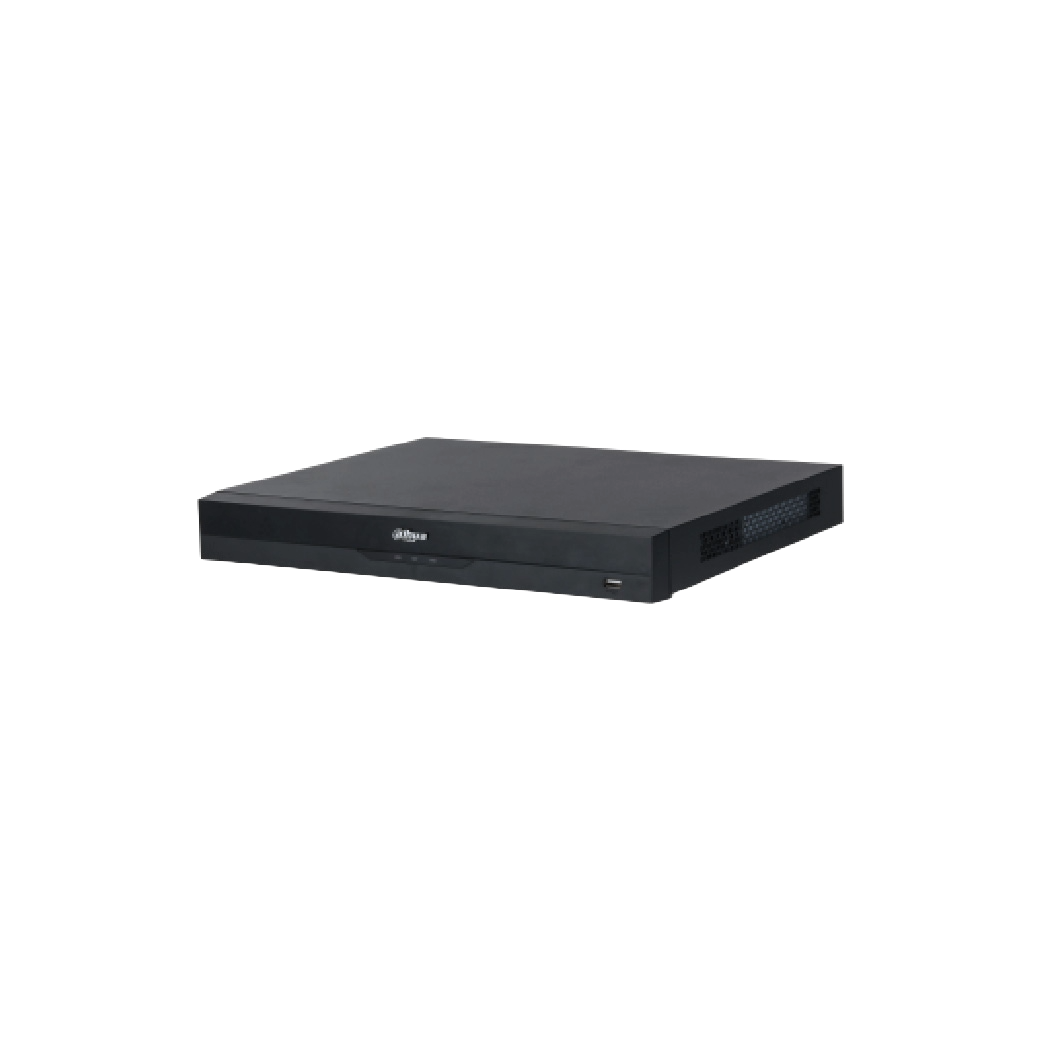

DAHUA 8 Channel 1U 8PoE 2HDDs WizSense Network Video Recorder

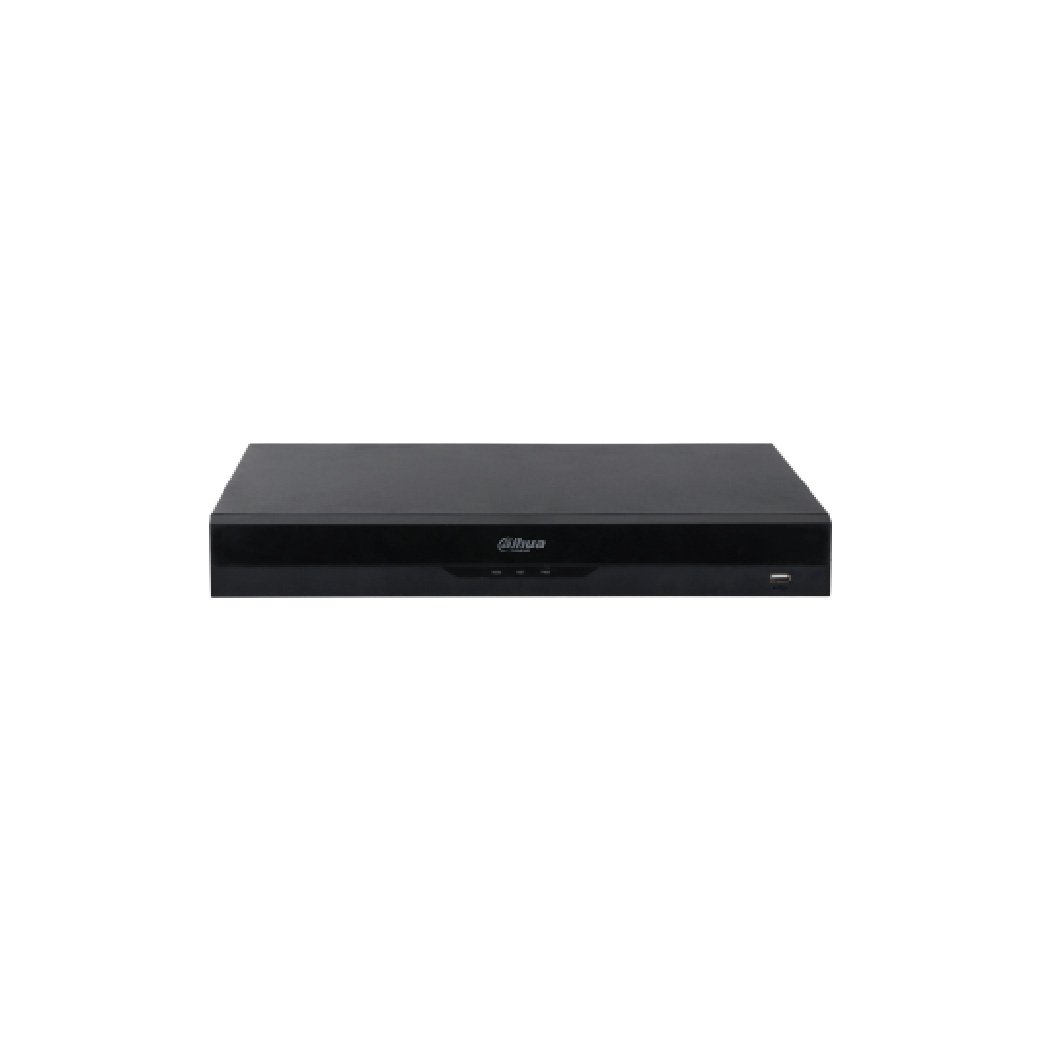

DAHUA 8 Channel 1U 8PoE 2HDDs WizSense Network Video Recorder - Image 2

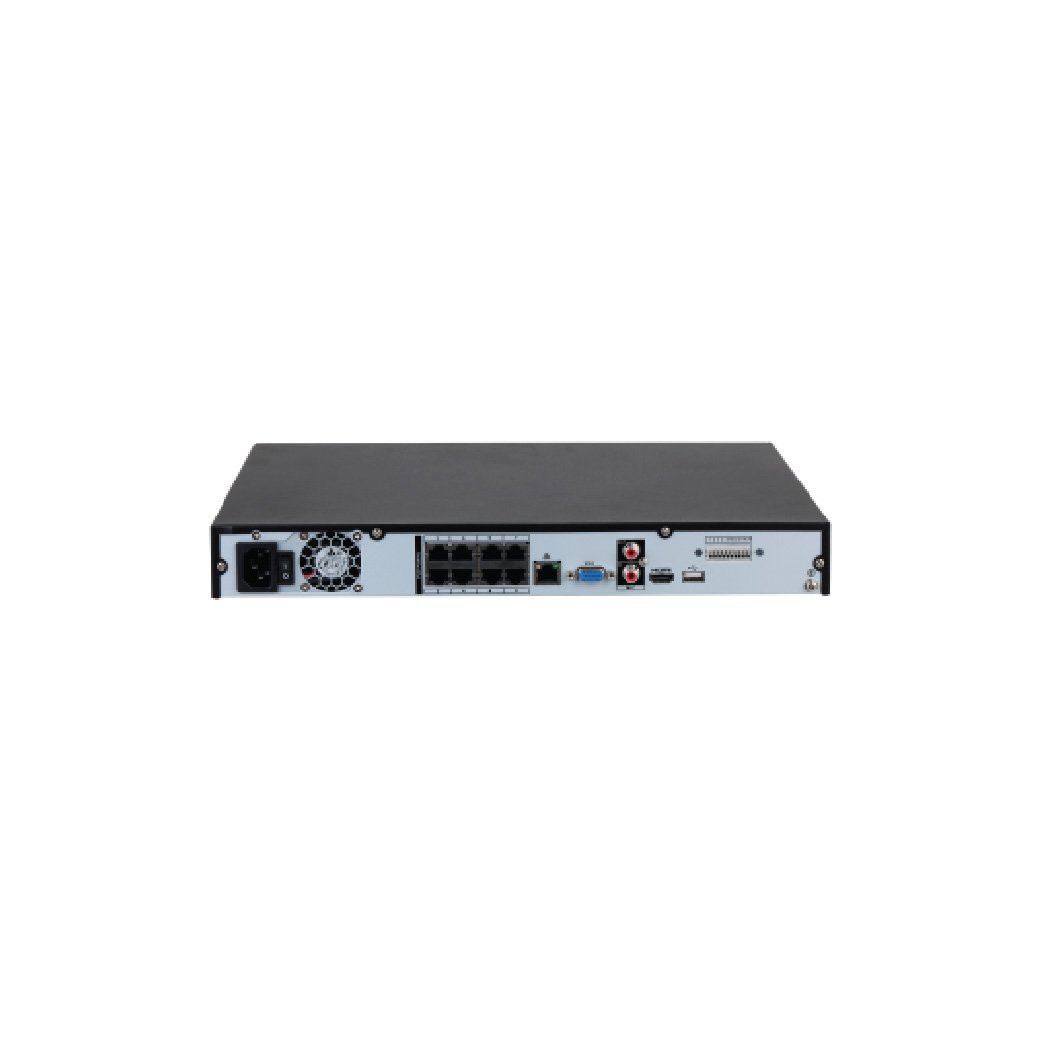

DAHUA 8 Channel 1U 8PoE 2HDDs WizSense Network Video Recorder - Image 3

DAHUA 8 Channel 1U 8PoE 2HDDs WizSense Network Video Recorder

DHI-NVR4208-8P-EI

8 Channel 1U 8PoE 2HDDs WizSense Network Video Recorder

  • Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
  •  Access, storage or forwarding at 256 Mbps (180 Mbps when Alfunction enabled).
  • Max. decoding capability: 16 x 1080p@30 fps.Supports adaptivedecoding.
  • Al by NVR: 1-channel face detection and recognition; 2-channelperimeter protection; up to 10 face databases and 20,000 faceimages; 4-channel SMD Plus.
  •  Al by Camera: Face detection and recognition, perimeter protection;SMD Plus; people counting; stereo analysis; heat map.
  • Connected to the third-party network cameras.
  • Security baseline 2.3.

฿9,590.00*ราคายังไม่รวม VAT
฿10,261.30*ราคารวม VAT แล้ว

ขอใบเสนอราคา

คุณสมบัติ

SYSTEM
Main Processor Industrial-grade processor
Operating System Embedded Linux
Operating Interface Web; Local GUI
AI
AI by Recorder Face detection, face recognition, perimeter protection, and SMD Plus
AI by Camera Face detection; face recognition; perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map
PERIMETER PROTECTION
Perimeter Performance AI by Recorder (Number of Channels) 2 channels, 10 IVS rules for each channel
Perimeter Performance of AI by Camera (Number of Channels) 8 channels
FACE DETECTION
Face Attributes Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder (Number of Channels) 1 channel (up to 12 face images/s each channel)
Face Detection Performance of AI by Camera (Number of Channels) 8 channels
FACE RECOGNITION
Face Database Capacity Up to 10 face databases with 200,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions, and state can be added to each face image.
Face Recognition Performance of AI by Recorder (Number of Channels) 8-channel FD (by camera) + FR (by recorder), image stream: 12 face images/s; 1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s
Face Recognition Performance of AI by Camera (Number of Channels) 8 channels
SMD PLUS
SMD Plus by Recorder 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD Plus by Camera 8 channels
AUDIO AND VIDEO
Access Channel 8 channels
Network Bandwidth AI disabled: 256 Mbps incoming, 256 Mbps recording
and 256 Mbps outgoing
AI enabled: 180 Mbps incoming, 180 Mbps recording
and 180 Mbps outgoing
Resolution 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF
Decoding Capability AI disabled: 2-channel 16 MP@30 fps; 2-channel 12
MP@30 fps; 4-channel 8 MP@30 fps; 6-channel 5
MP@30 fps; 8-channel 4 MP@30 fps
AI enabled: 1-channel 16 MP@30 fps; 2-channel
12 MP@30 fps; 3-channel 8 MP@30 fps; 4-channel
5 MP@30 fps; 6-channel 4 MP@30 fps; 8-channel
1080p@30 fps
Video Output 1 HDMI, 1 VGA
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
*Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.
VGA 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display 1st Screen: 1/4/8/9
2nd Screen: 1/4/8/9
Third-party Camera Access Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon
COMPRESSION STANDARD
Video Compression Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression G.711a; G.711u; PCM; G726
NETWORK
Network Protocol HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register
Mobile Phone Access iOS; Android
Interoperability ONVIF 22.06 (Profile T; Profile S; Profile G); CGI; SDK
Browser Chrome; IE9 and later; Firefox
RECORDING & PLAYBACK
Multi-channel Playback Up to 8 channels
Record Mode General, motion detection; intelligent; alarm
Backup Method USB device and network
Playback Mode Instant playback, general playback, event playback, tag playback, smart playback
STORAGE
Disk Group Yes
ALARM
General Alarm Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm
Anomaly Alarm Camera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception
Intelligent Alarm Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map
Alarm Linkage Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email
PORTS
Audio Input 1-channel RCA
Audio Output 1-channel RCA
Alarm Input 4 channels
Alarm Output 2 channels
HDD Interface 2 SATA ports, up to 16 TB (Maximum HDD capacity varies with environment temperature)
USB 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
HDMI 1
VGA 1
Network Port 1 (10/100/1000 Mbps Ethernet port, RJ-45)
PoE Port 8 ports, 10/100 Mbps, IEEE 802.3 af/at
GENERAL
Power Supply 100–240 VAC, 47-63 Hz
Power Consumption Total output of NVR is <10 W (without HDD); Total output power of PoE is 130W, the maximum output power of a single port is 25.5W
Net Weight 2.51 kg (5.53 lb)
Gross Weight 3.66 kg (8.06 lb)
Product Dimensions 375 mm × 329.3 mm × 53.0 mm (14.76″ × 12.96″ × 2.09″) (W × L × H)
Packaging Dimensions 451.0 mm × 147.0 mm × 425.0 mm (17.76″ × 5.79″ × 16.73″) (W × L × H)
Operating Temperature –10 °C to +55 °C (14 °F to +131 °F)
Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity 10%–93% (RH)
Installation Rack or desktop
Certifications FCC: 47 CFR FCC Part15, SubpartB, Class A; CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-32:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014; CE-LVD: EN 62368-1:2014
รหัสสินค้า: DHI-NVR4208-8P-EI หมวดหมู่:
