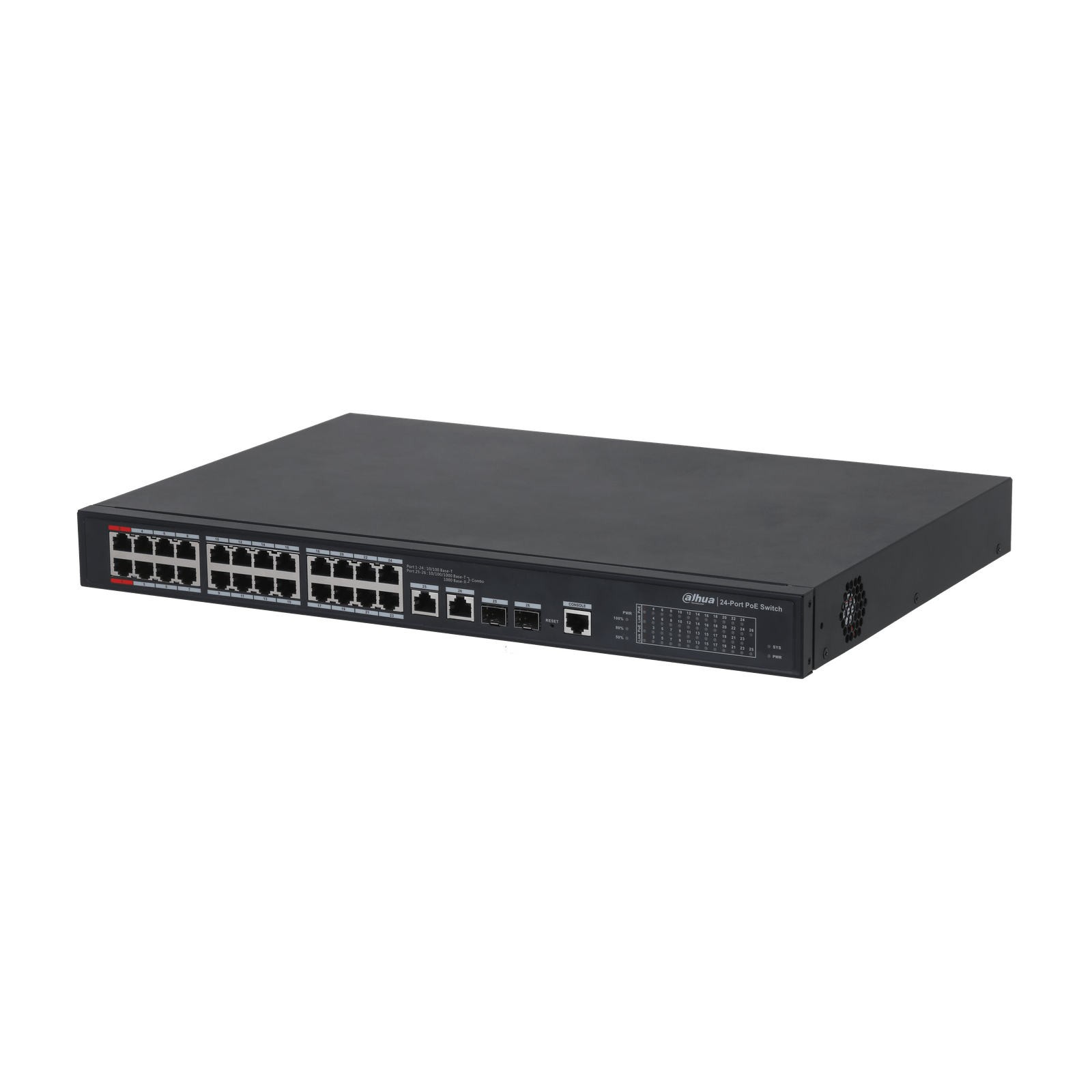

DAHUA Managed PoE Switch 24PoE 2Uplink (DH-PFS4226-24ET-360)

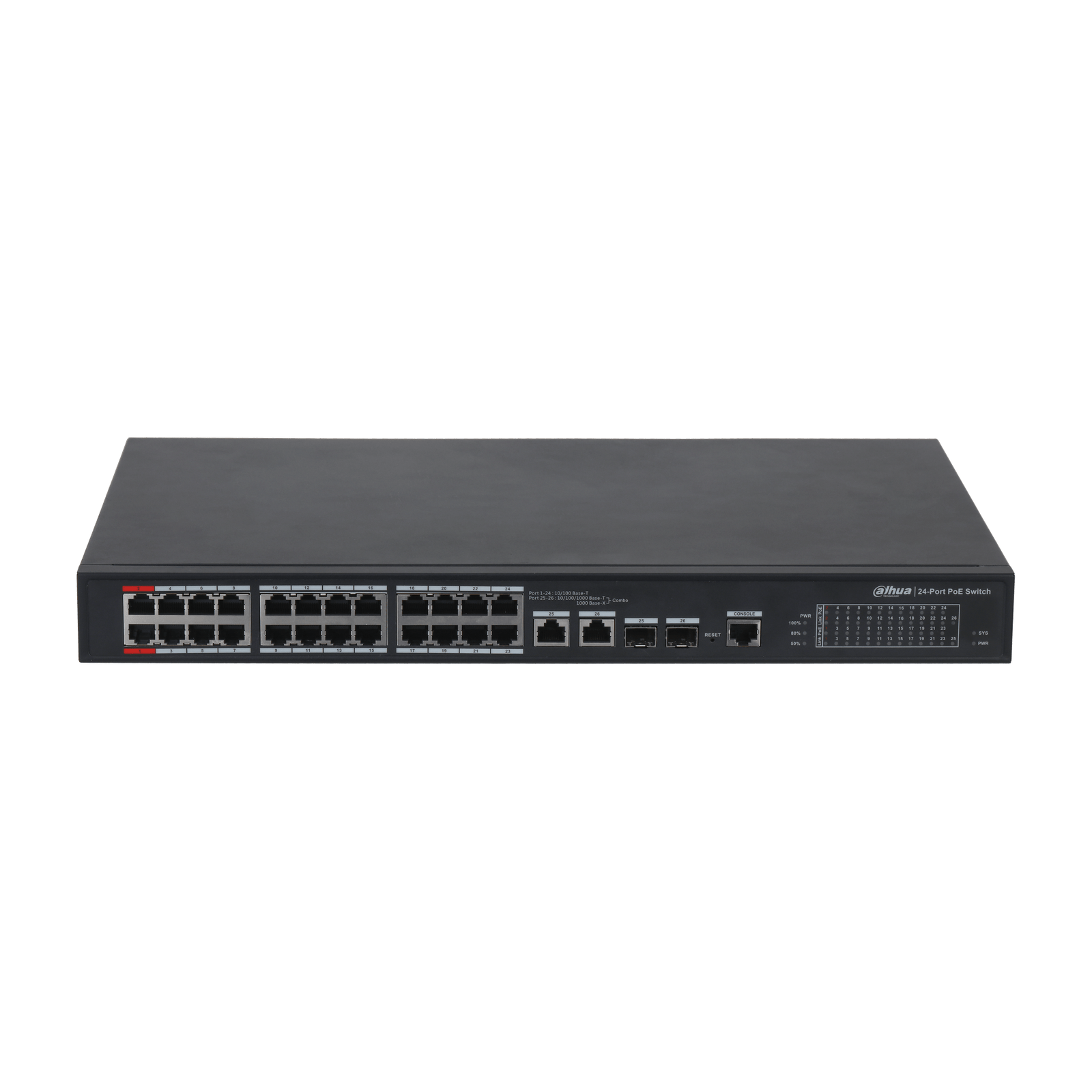

DAHUA Managed PoE Switch 24PoE 2Uplink (DH-PFS4226-24ET-360) - Image 2

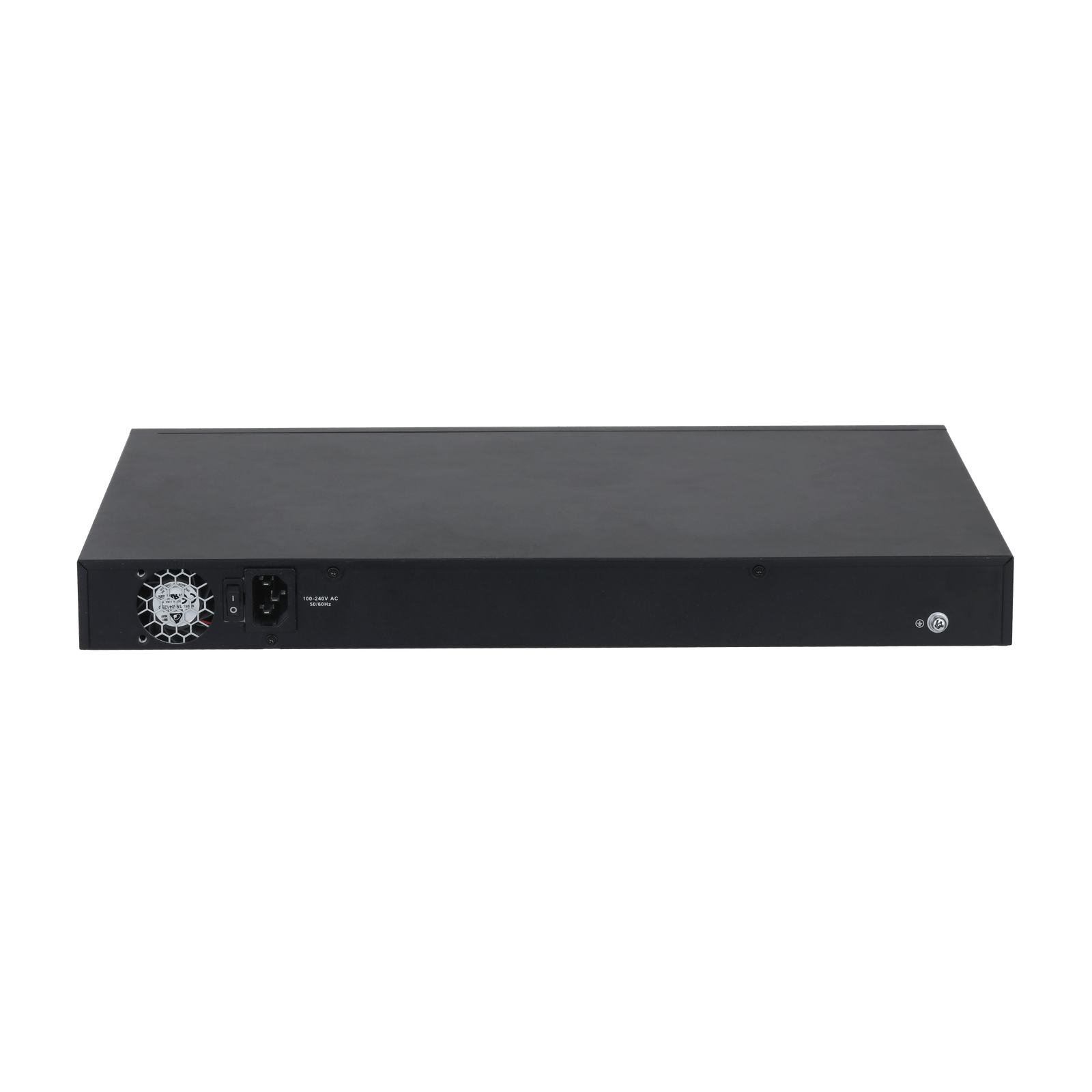

DAHUA Managed PoE Switch 24PoE 2Uplink (DH-PFS4226-24ET-360) - Image 3

DAHUA Managed PoE Switch 24PoE 2Uplink (DH-PFS4226-24ET-360)

DH-PFS4226-24ET-360

24-port 100 Mbps + 2-port Gigabit Managed PoE Switch

  • Intelligent PoE · Red port supports 90W IEEE802.3bt
  • Web management with friendly interface and easy operation
  • 250 m long distance PoE transmission
  • PoE watchdog
  • Plug and play

฿8,390.00*ราคายังไม่รวม VAT
฿8,977.30*ราคารวม VAT แล้ว

ขอใบเสนอราคา

คุณสมบัติ

Performance
LayerLayer 2
ManagedYes
Switching Capacity8.8 Gbps
Packet Forwarding Rate6.55 Mpps
Packet Buffer Memory2.75 Mbit
MAC Table Size4K
Communication StandardIEEE802.3; IEEE802.3u; IEEE802.3x; IEEE 802.3ab;

IEEE 802.3z

Hardware Feature
Standard Power SupplyYes
PoEYes
Ethernet Port24
Optical Port2
Ethernet Port Rate100 Mbps
Optical Port Rate1 Gbps
Number of Bussiness Card SlotsPort 1-24: 24 × RJ-45 10 M/100 M (PoE)
Port 25-26: 2 × RJ-45 10 M/100 M/1000 M (uplink)
Port 25-26: 2 × SFP 1000 M (uplink) (combo)
DebuggingConsole × 1
Power Supply100V–240V AC
Operating Temperature–10 °C to +55 ° (14 °F to 131 °F)
Operating Humidity10% RH–90% RH
Power ConsumptionIdling: 10W
Full load: 360W
PoE
PoE StandardIEEE802.3af/ IEEE802.3at/ Hi-PoE/IEEE802.3bt
PoE BudgetPort 1-2 ≤ 90W, Port 3-24 ≤ 30W, total ≤ 360W
PoE Pin Assignment1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
PoE ManagementPower consumption management
Power on and power off
Power down for overload
Green PoE
Legacy support
Long Distance PoE Transmission250 m long-distance power supply
Function
Spanning Tree ProtocolIEEE 802.1d (STP); 802.1w (RSTP)
VLANIEEE802.1q Standard VLAN
Flow ControlSupport IEEE 802.3x (full duplex flow control) and back pressure flow control (half duplex)
Link AggregationStatic; LACP
Port MirroringOne-to-one; multiple-to-one
MulticastGMP snooping based on port
DHCPDHCP client
SecurityHardware supports IP and MAC binding based on port, MAC filtering based on port, and IEEE802.1x port authentication
QoSHigh and low priority
WRR
802.1P
DSCP
Priority based on protocol
General
ESDAir discharge: 8kV
Contact discharge: 6kV
Thunder-proofCommon mode: 4kV
Differential mode: 2kV
Dimensions440 mm × 300 mm × 44 mm (17.32″ × 11.81″ × 1.73″) (L × W × H)
Packaging DimensionsPacking box: 527 mm × 412 mm × 110 mm (20.75″ × 16.22″ × 4.33″) (L × W × H)
Protective box: 584 mm × 549 mm × 446 mm (22.99″ × 21.61″ × 17.56″) (L × W × H)
Transmission Performance:
Switch power supply voltage 53V.

CAT5E/CAT6. Max. DC resistance < 10 Ω/100 m

Cable(m)Load Capacity(W)Bandwidth(Mbps)
IEEE802.3bt 90 W
10071.3100
1506210
2005110
2504010
Hi-PoE 60 W
10053100
1505010
2004710
2503710
IEEE802.3at 30 W
10025.5100
15025.510
20025.510
25025.510
รหัสสินค้า: DH-PFS4226-24ET-360 หมวดหมู่:
