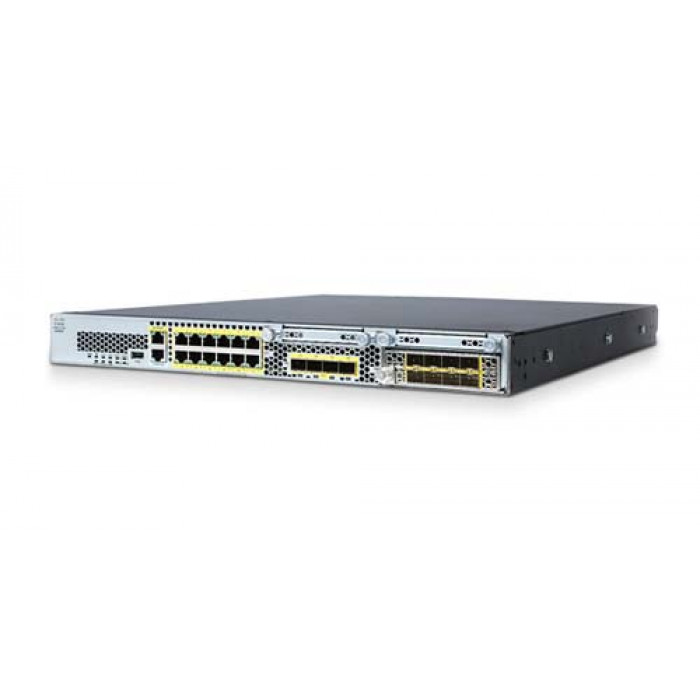

Cisco Firepower 2110 NGFW Appliance [FPR2110-NGFW-K9]

Cisco Firepower 2110 NGFW Appliance [FPR2110-NGFW-K9]

฿259,000.00*ราคายังไม่รวม VAT
฿277,130.00*ราคารวม VAT แล้ว

ขอใบเสนอราคา

Cisco Firepower 2100 series summary:

Model

Firewall

NGFW

IPS Throughput

Interfaces

Optional interfaces
FPR-2110 3G 2.6G 2.6G 12 x RJ45, 4 x SFP N/A
FPR-2120 6G 3.4G 3.5G 12 x RJ45, 4 x SFP N/A
FPR-2130 10G 5.4G 5.4G 12 x RJ45, 4 x SFP+ 10G SFP+, 1/10G FTW
FPR-2140 20G 10.4G 10.5G 12 x RJ45, 4 x SFP+ 10G SFP+, 1/10G FTW

Detailed performance specifications and feature highlights

Table 1.        Performance specifications and feature highlights for 2100 Series with Cisco Threat Defense software

Features

2110

2120

2130

2140
Throughput: FW + AVC (1024B) 2.6 Gbps 3.4 Gbps 5.4 Gbps 10.4 Gbps
Throughput: FW + AVC + IPS (1024B) 2.6 Gbps 3.4 Gbps 5.4 Gbps 10.4 Gbps
Maximum concurrent sessions, with AVC 1 million 1.5 million 2 million 3 million
Maximum new connections per second, with AVC 14K 18K 30K 57K
TLS 365 Mbps 475 Mbps 760 Mbps 1.4 Gbps
Throughput: IPS (1024B) 2.6 Gbps 3.5 Gbps 5.4 Gbps 10.5 Gbps
IPSec VPN Throughput (1024B TCP w/Fastpath) 950 Mbps 1.2 Gbps 1.9 Gbps 3.6 Gbps
Maximum VPN Peers 1,500 3,500 7,500 10,000
Cisco Firepower Device Manager (local management) Yes Yes Yes Yes
Centralized management Centralized configuration, logging, monitoring, and reporting are performed by the Management Center or alternatively in the cloud with Cisco Defense Orchestrator
Application Visibility and Control (AVC) Standard, supporting more than 4000 applications, as well as geolocations, users, and websites
AVC: OpenAppID support for custom, open source, application detectors Standard
Cisco Security Intelligence Standard, with IP, URL, and DNS threat intelligence
Cisco Firepower NGIPS Available; can passively detect endpoints and infrastructure for threat correlation and Indicators of Compromise (IoC) intelligence
Cisco AMP for Networks Available; enables detection, blocking, tracking, analysis, and containment of targeted and persistent malware, addressing the attack continuum both during and after attacks. Integrated threat correlation with Cisco Secure Endpoint is also optionally available
Cisco AMP Threat Grid sandboxing Available
URL Filtering: number of categories More than 80
URL Filtering: number of URLs categorized More than 280 million
Automated threat feed and IPS signature updates Yes: class-leading Collective Security Intelligence (CSI) from the Cisco Talos Group (https://www.cisco.com/c/en/us/products/security/talos.html)
Third-party and open-source ecosystem Open API for integrations with third-party products; Snort® and OpenAppID community resources for new and specific threats
High availability and clustering Active/standby
Cisco Trust Anchor Technologies Firepower 2100 Series platforms include Trust Anchor Technologies for supply chain and software image assurance. Please see the section below for additional details

Note:      Performance will vary depending on features activated, and network traffic protocol mix, and packet size characteristics. Performance is subject to change with new software releases. Consult your Cisco representative for detailed sizing guidance.

Hardware specifications

Table 3.        Cisco Firepower 2100 Series hardware specifications

Features

Cisco Firepower Model
  2110 2120 2130 2140
Dimensions (H x W x D) 1.73 x 16.90 x 19.76 in. (4.4 x 42.9 x 50.2cm) 1.73 x 16.90 x 19.76 in. (4.4 x 42.9 x 50.2 cm 1.73 x 16.90 x 19.76 in. (4.4 x 42.9 x 50.2 cm) 1.73 x 16.90 x 19.76 in. (4.4 x 42.9 x 50.2 cm)
Form factor (rack units) 1RU 1RU 1RU 1RU
Integrated I/O 12 x 10M/100M/

1GBASE-T Ethernet interfaces (RJ- 45), 4 x 1 Gigabit (SFP) Ethernet interfaces

 12 x 10M/100M/

1GBASE-T Ethernet interfaces (RJ- 45), 4 x 1 Gigabit (SFP) Ethernet interfaces

 12 x 10M/100M/

1GBASE-T Ethernet interfaces (RJ- 45), 4 x 10 Gigabit (SFP+) Ethernet interfaces

 12 x 10M/100M/

1GBASE-T Ethernet interfaces (RJ- 45), 4 x 10 Gigabit (SFP+) Ethernet interfaces
Network modules None None 10G SFP+, 1/10G FTW

Options

 10G SFP+, 1/10G FTW

Options
Note: The 2100 Series appliances may also be deployed as dedicated threat sensors with fail-to-wire network modules. Please contact your Cisco representative for details.
Maximum number of interfaces Up to 16 total Ethernet ports, (12x1G RJ-45, 4x1G SFP) Up to 16 total Ethernet ports, (12x1G RJ-45, 4x1G SFP) Up to 24 total Ethernet ports (12x1G RJ-45, 4x10G SFP+, and network module Up to 24 total Ethernet ports (12x1G RJ-45, 4x10G SFP+, and network module
Integrated network management ports 1 x 10M/100M/ 1GBASE-T Ethernet port (RJ-45) 1 x 10M/100M/ 1GBASE-T Ethernet port (RJ-45) 1 x 10M/100M/ 1GBASE-T Ethernet port (RJ-45) 1 x 10M/100M/ 1GBASE-T Ethernet port (RJ-45)
Serial port 1 x RJ-45 console 1 x RJ-45 console 1 x RJ-45 console 1 x RJ-45 console
USB 1 x USB 2.0 Type-A (500mA) 1 x USB 2.0 Type-A (500mA) 1 x USB 2.0 Type-A (500mA) 1 x USB 2.0 Type-A (500mA)
Storage 1x 100 GB, 1x spare slot (for MSP) 1x 100 GB, 1x spare slot (for MSP) 1x 200 GB, 1x spare slot (for MSP) 1x 200 GB, 1x spare slot (for MSP)
Power supply configuration Single integrated 250W AC power supply. Single integrated 250W AC power supply. Single 400W AC, Dual 400W AC optional.

Single/Dual 350W DC optional1

 Dual 400W AC.

Single/dual 350W DC optional1
AC input voltage 100 to 240V AC 100 to 240V AC 100 to 240V AC 100 to 240V AC
AC maximum input current < 2.7A at 100V < 2.7A at 100V < 6A at 100V < 6A at 100V
AC maximum output power 250W 250W 400W 400W
AC frequency 50 to 60 Hz 50 to 60 Hz 50 to 60 Hz 50 to 60 Hz
AC efficiency >88% at 50% load >88% at 50% load >89% at 50% load >89% at 50% load
DC input voltage – – -48V to -60VDC -48V to -60VDC
DC maximum input current – – < 12.5A at -48V < 12.5A at -48V
DC maximum output power – – 350W 350W
DC efficiency     >88% at 50% load >88% at 50% load
Redundancy None None 1+1 AC or DC with dual supplies 1+1 AC or DC with dual supplies
Fans 4 integrated (2 internal, 2 exhaust) fans2 4 integrated (2 internal, 2 exhaust) fans2 1 hot-swappable fan module (with 4 fans)2 1 hot-swappable fan module (with 4 fans)2
Noise 56 dBA @ 25C

74 dBA at highest system performance.

 56 dBA @ 25C

74 dBA at highest system performance.

 56 dBA @ 25C

77 dBA at highest system performance.

 56 dBA @ 25C

77 dBA at highest system performance.
Rack mountable Yes. Fixed mount brackets included. (2- post). Mount rails optional (4-post EIA-310-D rack) Yes. Fixed mount brackets included. (2- post). Mount rails optional (4-post EIA-310-D rack) Yes. Mount rails included (4-post EIA- 310-D rack) Yes. Mount rails included (4-post EIA- 310-D rack)
Weight 16.1 lb (7.3 kg): with 2x SSDs 16.1 lb (7.3 kg): with 2x SSDs 19.4 lb (8.8 kg) 1 x power supplies, 1 x NM, 1 x fan module, 2x SSDs 21 lb (9.53 kg) 2 x power supplies, 1 x NM, 1 x fan module, 2x SSDs
Temperature: operating 32 to 104°F
(0 to 40°C)		 32 to 104°F
(0 to 40°C)		 32 to 104°F
(0 to 40°C) or NEBS operation (see below)3		 32 to 104°F
(0 to 40°C)
Temperature: nonoperating -4 to 149°F
(-20 to 65°C)		 -4 to 149°F
(-20 to 65°C)		 -4 to 149°F
(-20 to 65°C)		 -4 to 149°F
(-20 to 65°C)
Humidity: operating 10 to 85%

noncondensing

 10 to 85%

noncondensing

 10 to 85%

noncondensing

 10 to 85%

noncondensing
Humidity: nonoperating 5 to 95% noncondensing 5 to 95% noncondensing 5 to 95% noncondensing 5 to 95% noncondensing
Altitude: operating 10,000 ft (max) 10,000 ft (max) 10,000 ft (max) or

NEBS operation (see below)3

 10,000 ft (max)
Altitude: nonoperating 40,000 ft (max) 40,000 ft (max) 40,000 ft (max) 40,000 ft (max)
NEBS operation
(FPR- 2130 Only)3		     Operating altitude: 0 to 13,000 ft
(3962 m)

Operating temperature: Long term: 0 to 45°C, up to 6,000 ft (1829 m)

Long term: 0 to 35°C, 6,000 to 13,000 ft (1829 to 3964 m)

Short term: -5 to 55°C, up to 6,000 ft (1829 m)


รหัสสินค้า: FPR2110-NGFW-K9 หมวดหมู่:
