| Enterprise Testing Conditions1 |
| Threat Prevention2 |
28.8 Gbps |
| NGFW3 |
90 Gbps |
| IPS Throughput |
130 Gbps |
| Firewall Throughput |
200 Gbps |
| RFC 3511, 2544, 2647, 1242 Performance (LAB) |
| Firewall 1518B UDP |
800 Gbps |
| Firewall Latency (avg) |
1.85μSec |
| VPN AES-GCM 1452B |
75.3 Gbps |
| Connections per Second |
750,000 |
| Concurennt Connections |
12.4M Base / 20M Plus / 31M Max |
| HTTP/TLS Inspection Performance |
| Threat Prevention1,2 |
14.1 Gbps |
| Threat Prevention2 web mix4 |
10.2 Gbps |
| IPS web mix4 |
12.9 Gbps |
| Additional Features |
| Highlights |
- CPU: 32 physical cores, total of 64 logical cores
- Storage: BASE x 1 SSD 960GB NVMe, PLUS x 2 SSD 960GB NVMe
- 2x AC power supplies
- 96 and 128 GB memory options
- Lights-Out-Management card (included in Plus package)
|

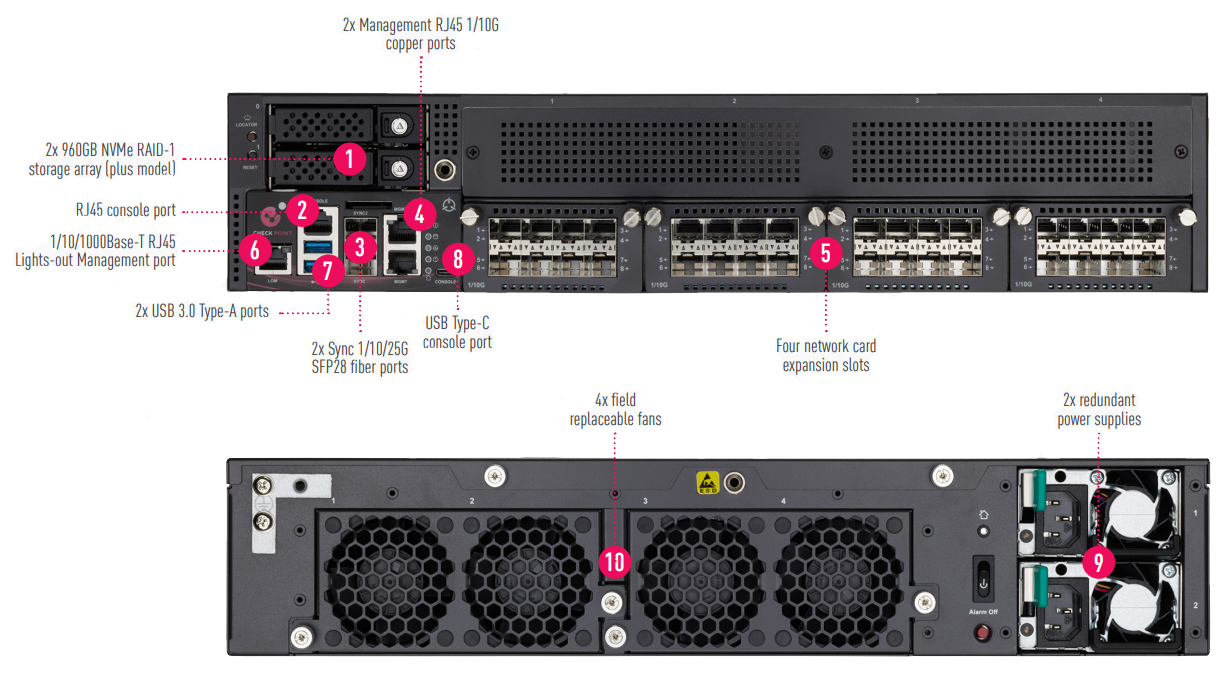

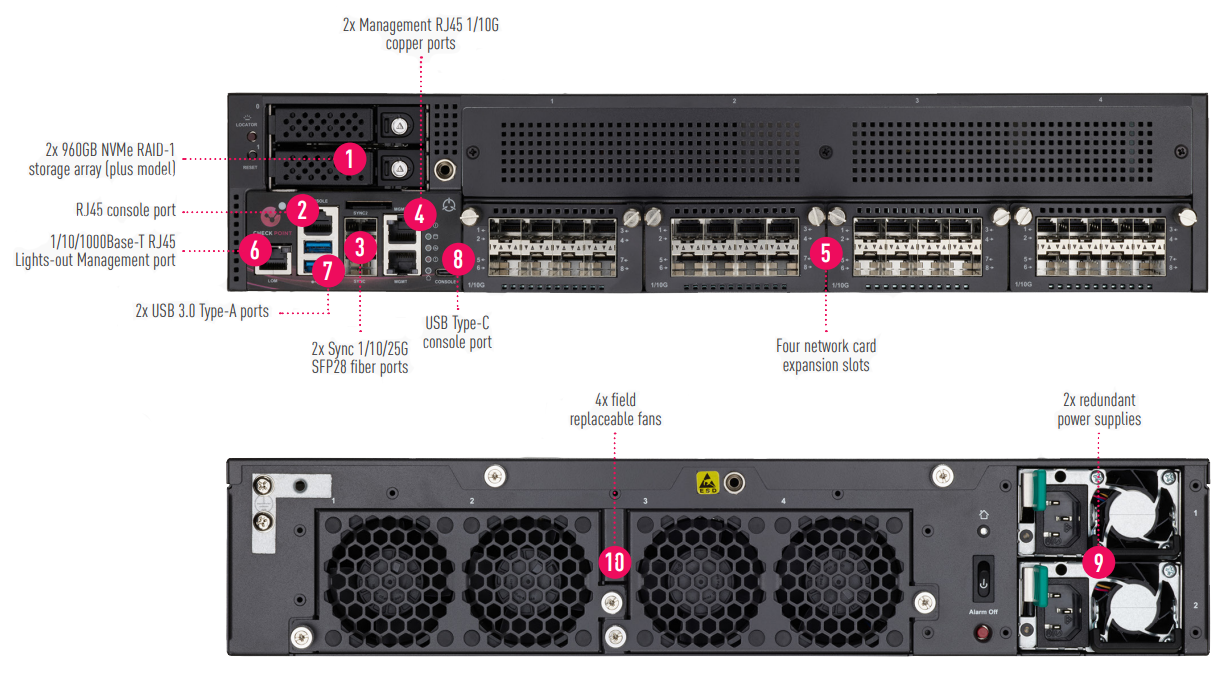

| Network Expansion Slot Options |
- 8 x 1/10GBASE-F SFP+ port card, up to 32 ports
- 4 x 10/25GBASE-F SFP28 port card, up to 18 ports
- 2 x 40/100GBASE-F QSFP28 port card, up to 8 ports
|
| Network |
| Network Connectivity |
- Integrated SD-WAN network optimization and resilience
- Total physical and virtual (VLAN) interfaces per appliance: 1024/4096 (single gateway/with virtual systems)
- 802.3ad passive and active link aggregation
- Layer 2 (transparent) and Layer 3 (routing) mode
|
| High Availability |
- Active/Active L2, Active/Passive L2 and L3
- Session failover for routing change, device and link failure
- ClusterXL or VRRP
|
| IPv6 |
- NAT66, NAT64, NAT46
- CoreXL, SecureXL, HA with VRRPv3
|
| Unicast and Multicast Routing (see SK98226) |
- OSPFv2 and v3, BGP, RIP
- Static routes, Multicast routes
- Policy-based routing
- PIM-SM, PIM-SSM, PIM-DM, IGMP v2, and v3
|
| Power Requirements |
| Single Power Supply rating AC |
850W, DC: 1600W |
| AC power input |
100 to 240VAC (47-63Hz), -36~-70VDC |
| Power consumption max |
360W/600W |
| Maximum thermal output AC |
2047BTU/h |
| Dimensions |
| Enclosure |
2RU |
| Dimensions (WxDxH) |
17.25 x 24 x 3.5 in. (442 x 610 x 88mm) |
| Weight |
36.3 lbs. (16.5 kg) |
| Environmental Conditions |
| Operating |
0° to 40°C, humidity 5% to 95 |
| Storing |
–20° to 70°C, humidity 5% to 95% at 60°C |
| MTBF |
> 10 years |
| Certifications |
| Safety |
CB IEC 62368-1, CE LVD EN62368-1, UL62368-1, ASNZS 62368.1 |
| Emissions |
CE, FCC IC, VCCI, ASNZS ACMA |
| Environmental |
RoHS, REACH, WEEE, ISO14001 |
