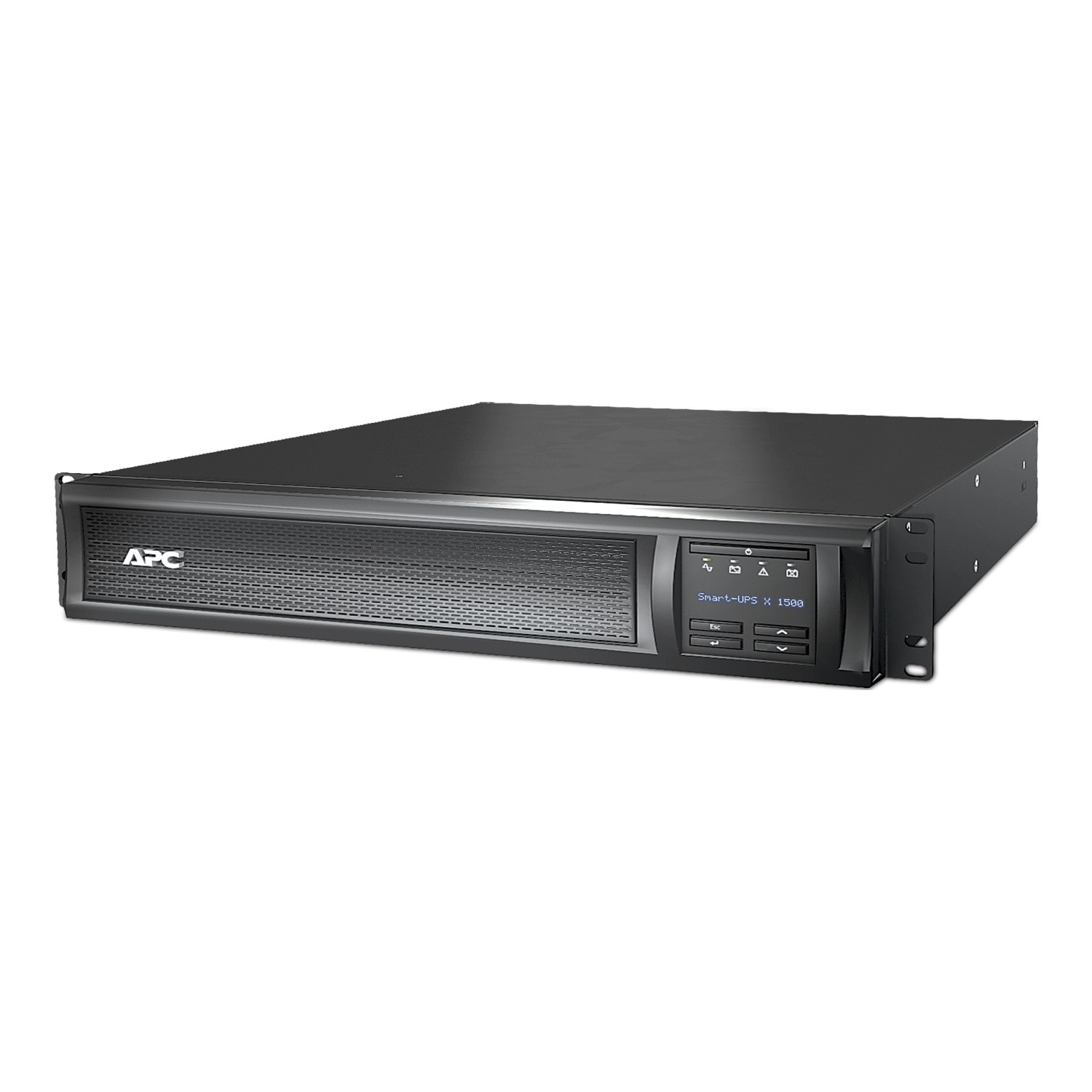

APC Smart-UPS X 1500VA Rack/Tower LCD 230V( SMX1500RMI2U )
เช็คสินค้าก่อนสั่งซื้อ
฿42,900.00*ราคายังไม่รวม VAT ฿45,903.00*ราคารวม VAT แล้ว
| Presentation | Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. |
|---|---|
| Lead time | Usually Ships within 2 Weeks |
| Communication port type | SmartSlot |
|---|
| รันไทม์ |
|
|---|---|
| ประสิทธิภาพ |
|
| Battery type | Lead-acid battery |
| Extended runtime | 0 |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 3 h |
| Number of battery replacement quantity | 1 |
| Battery life | 3…5 year(s) |
| Replacement battery |
|
| Battery charger power | 103 W rated |
| Provided equipment | CD with software Documentation CD Installation guide Rack mounting support rails Removable support feet Smart UPS signalling RS-232 cable USB cable |
|---|---|
| Number of power module | 0 |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| product web sub-family | Extended run |
| Redundant | No |
| Number of rack unit | 2U |
|---|---|
| Cable length | 1.8 m |
| Number of cables | 1 |
| Colour | Black |
| Height | 8.9 cm |
| Width | 43.2 cm |
| Depth | 49 cm |
| Product weight | 24.82 kg |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted |
| Two post mountable | 0 |
| USB compatible | Yes |
| Main Input Voltage | 230 V |
|---|---|
| Input Connection Type | IEC 320 C14 |
| Switching current capacity | 10 A |
| Input voltage limits | 151…302 V adjustable 160…286 V |
| Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Main Output Voltage | 230 V |
|---|---|
| Rated power in W | 1200 W |
| Rated power in VA | 1500 VA |
| output connection type | 8 IEC 320 C13 2 IEC Jumpers |
| Harmonic distortion | Less than 5 % |
| Maximum configurable power in VA | 1500 VA |
| Maximum configurable power in W | 1200 W |
| UPS type | Line interactive |
| Wave type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Product certifications | CE CSA EAC RCM UK PSTI |
|---|---|
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Acoustic level | 40 dBA |
|---|---|
| Heat dissipation | 133 Btu/h |
| Operating altitude | 0…10000 ft |
| Ambient air temperature for operation | 0…45 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0.0000000000…15240.0000000000 m |
| Relative humidity | 0…95 % |
| Storage Relative Humidity | 0…95 % |
| control panel | Multifunction LCD status and control console |
|---|---|
| Emergency power off | Yes |
| Free slots | 1 |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge energy rate | 645 J |
|---|---|
| Noise suppression | Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 24.600 cm |
| Package 1 Width | 58.900 cm |
| Package 1 Length | 62.000 cm |
| Package 1 Weight | 30.000 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 133.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 524.000 kg |
| Warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
|---|
