APC

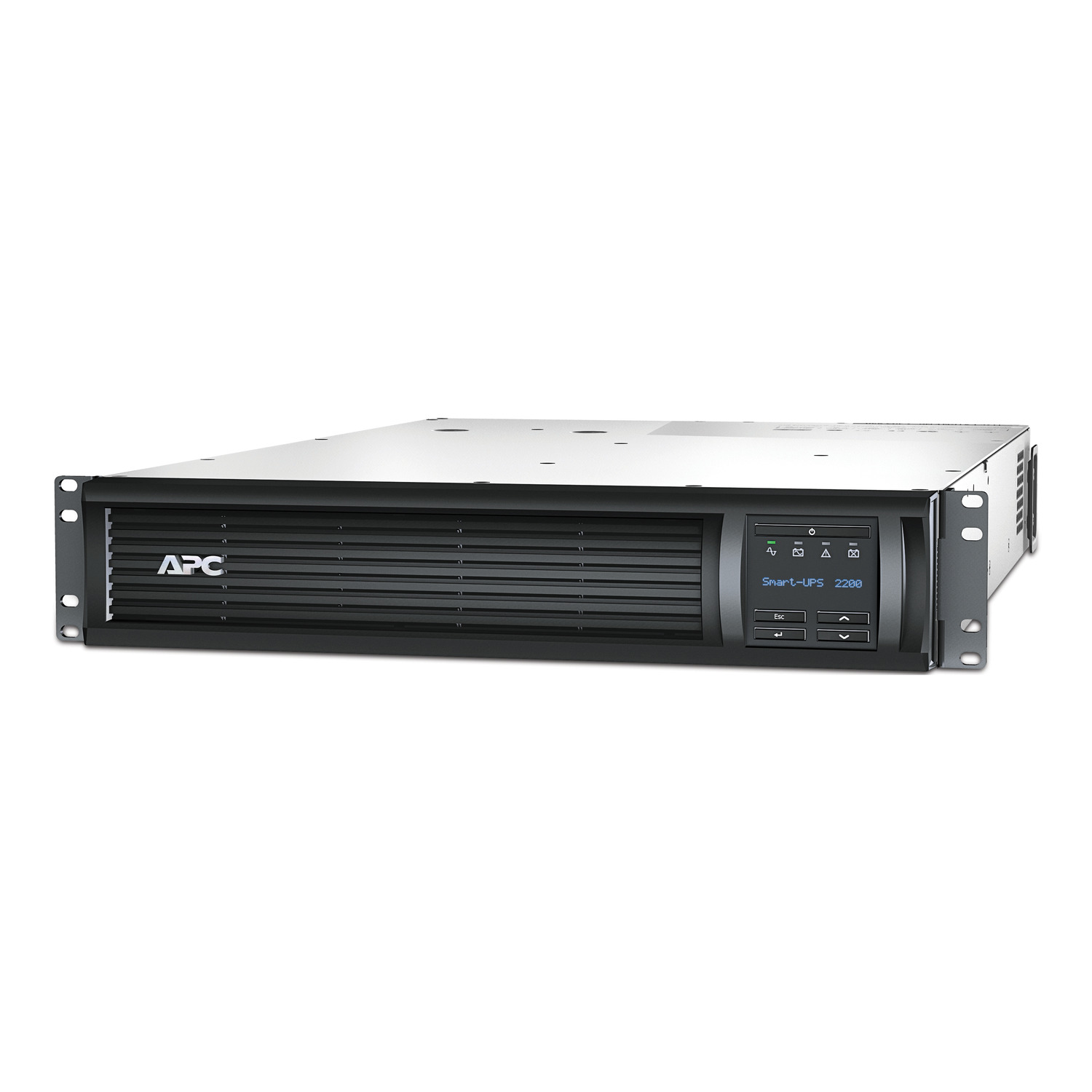

APC Smart-UPS 2200VA LCD RM 2U 230V with Smart Connect ( SMT2200RMI2UC )
฿52,900.00*ราคายังไม่รวม VAT ฿56,603.00*ราคารวม VAT แล้ว
| Presentation | Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. |
|---|---|
| Lead time | Usually in Stock |
| Communication port type | SmartConnect Ethernet port SmartSlot |
|---|---|
| Software package | SmartConnect software for remote power monitoring feature availability varies by terms of use |
| รันไทม์ | |
|---|---|
| ประสิทธิภาพ | |
| Battery type | Lead-acid battery |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Extended runtime | 0 |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 3 h |
| Number of battery replacement quantity | 1 |
| Battery life | 3…5 year(s) |
| Replacement battery | |
| Battery charger power | 169 W rated |
| Provided equipment | Documentation CD Rack mounting hardware Rack mounting support rails USB cable |
|---|---|
| Number of power module | 0 |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| product web sub-family | Cloud-enabled monitoring |
| Redundant | No |
| Number of rack unit | 2U |
|---|---|
| Cable length | 2.00 m |
| Number of cables | 1 |
| Height | 8.6 cm |
| Width | 43.2 cm |
| Depth | 68.3 cm |
| Product weight | 42.31 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted |
| Two post mountable | 0 |
| USB compatible | No |
| Main Input Voltage | 230 V |
|---|---|
| Other Input Voltage | 220 V 240 V |
| Input Connection Type | BS1363A British IEC 320 C20 Schuko CEE 7 / EU1-16P |
| Input voltage limits | 151…302 V adjustable 160…286 V |
| Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Main Output Voltage | 230 V |
|---|---|
| Other Output Voltage | 220 V 240 V |
| Rated power in W | 1980 W |
| Rated power in VA | 2200 VA |
| output connection type | 8 IEC 320 C13 3 IEC Jumpers 1 IEC 320 C19 |
| Harmonic distortion | Less than 5 % |
| Maximum configurable power in VA | 2200 VA |
| Maximum configurable power in W | 1980 W |
| Transfer time | 6 ms typical : 10 ms maximum |
| UPS type | Line interactive |
| Wave type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Product certifications | CE EAC IRAM RCM VDE UK PSTI |
|---|---|
| Marking | GS Mark |
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Acoustic level | 55 dBA |
|---|---|
| Heat dissipation | 215 Btu/h |
| Operating altitude | 0…10000 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0.0000000000…15240.0000000000 m |
| Relative humidity | 0…95 % |
| Storage Relative Humidity | 0…95 % |
| control panel | Multifunction LCD status and control console |
|---|---|
| Free slots | 1 |
| Communication port support | SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use |
| Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Surge energy rate | 375 J |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 98.044 cm |
| Package 1 Width | 59.995 cm |
| Package 1 Length | 25.400 cm |
| Package 1 Weight | 49.628 kg |
| Warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
|---|
